Testo 885-1 Thermal Imager Kit - Includes FREE Products with Purchase

Model: 885-KIT

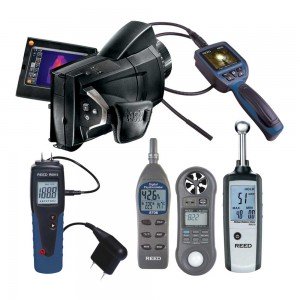

Testo 885-1 Thermal Imager Kit - Includes FREE Products with Purchase-


Downloads: datasheet

Testo 885-1 Thermal Imager Kit - Includes FREE Products with Purchase

Model: 885-KIT

For electrical/mechanical applications. Features a 320 x 240 60Hz infrared detector with a >30mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480. This value added kit includes the REED 8706 Psychrometer, REED R8500 Video Inspection Camera, REED LM-8000 Environmental Meter, REED R6010 Moisture Detector, and REED R6015 Wood Moisture Detector for FREE.

For electrical/mechanical applications. Features a 320 x 240 60Hz infrared detector with a >30mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480. This value added kit includes the REED 8706 Psychrometer, REED R8500 Video Inspection Camera, REED LM-8000 Environmental Meter, REED R6010 Moisture Detector, and REED R6015 Wood Moisture Detector for FREE.

Sale Price $7063.50 USD
Regular Price $9105.00 USD
Availability 3 to 4 Weeks
Quantity

Add In-House Traceable Calibration to your 885-1

Add In-House Traceable Calibration to your 885-1


Testo 885-KIT Offers

Purchase a Testo 885-1 Thermal Imaging Camera and receive FREE: a REED 8706 Digital Psychrometer, a REED R8500 Video Inspection Camera, a REED LM-8000 Environmental Meter, a REED R6010 Moisture Detector, and a REED R6015 Wood Moisture Meter.

Testo 885-1 Thermal Imager

You can carry out damage-free tests on materials and components with the Testo 885-1 Thermal Imager. Thanks to the 320 x 240-pixel detector, in combination with the high-quality optics, the Testo 885-1 achieves a high image quality. This allows weak spots and problems to be easily detected in industrial and building thermography.

In combination with the Testo SuperResolution technology, the 885-1 records high-resolution thermal images in high quality (640 x 480 pixels). This means that even the smallest or very distant measurement objects will not be missed.

  • Includes SuperResolution Technology that enhances the image quality to 640 x 480
  • Detector size: 320 x 240 pixels (76,800 pixels)
  • Thermal sensitivity: 30 mK
  • Auto focus
  • NIST certification included

Applications

Providing Comprehensive Energy Advice, Reliable High Temperature Measurement, Electrical Maintenance Checks, Monitoring and Checking Solar Energy Systems, Analyzing Building Shells at a Glance, See Critical Temperatures on Circuit Boards Precisely.


REED 8706 Psychrometer

Measures relative humidity, air temperature plus external probe temperature and quickly calculates wet bulb and dew point temperatures.

  • Simultaneous display of %RH, air temperature and dew point or wet bulb or external probe temperature in °F or °C
  • Max/Min/Avg readings and Data Hold
  • Display backlight
  • Humidity Range: 0 to 100% RH
  • Dew Point Range: -109.7 to 122°F (-78.7 to 50°C)
  • Wet Bulb Range: -6.9 to 122°F (-21.6 to 50°C)

REED R8500 9mm Video Inspection Camera, Recordable

9mm camera diameter and 2.5" color TFT LCD monitor. Saves high resolution images and records video.

  • Camera and video functions save high resolution images and video
  • Comfortable pistol grip design
  • High resolution 2.5" color LCD monitor
  • 9mm waterproof (IP67) camera head
  • Gooseneck cable retains configured shape
  • Cable expandable up to 30 ft. (~9m) with extensions (optional)
  • Four high visibility LED lights provide illumination in dimly lit environments
  • Expandable memory up to 32Gb (SD card sold separately)
  • 180° mirror rotation function
  • Low battery indicator and auto shut off

REED LM-8000 Environmental Meter

4-in-1 multi-function meter-anemometer, humidity meter, light meter and type-K digital thermometer.

  • Type K (NiCr-NiAl) thermocouple input jack
  • High precision thin-film capacitance humidity sensor
  • Photo diode and colour correction filter light sensor
  • Velocity Units: m/s, kph, mph, knots, and fpm
  • °F or °C and Lux or Ft-cd selectable
  • Data Hold, Record (Max/Min)

REED R6010 Moisture Detector

Detects moisture content in building materials of all kinds, as well as detects moisture distribution in walls, ceilings and floors.

  • Non-destructive - moisture sensor runs smoothly over the surface being tested with-out scratching or penetrating the surface
  • Classifies moisture status as: dry, at risk or wet
  • Display Hold button
  • Max/Min function with alarm indication
  • LCD display with backlighting
  • Low battery indication with auto power off

REED R6015 Wood Moisture Meter

Measure moisture content in wood either directly with built-in moisture pins or use remote hand-press probe (included) on hard surfaces.

  • Electrical resistance measuring principle
  • Automatic temperature compensation when used with included temperature probe improves accuracy of moisture measurements
  • Memory contains 8 wood groups with calibrations for approx.170 species of wood
  • Built-in 2-point calibration check
  • User settable auto power off with override and low battery indication
  • Integral contact pins are replaceable, remote moisture electrode pins are not replaceable

Testo 885-1 Specifications

IR Resolution (Array Size) 76,800 (320 x 240)
Thermal Sensitivity < 0.03°C (30mK)
Field of View 30° x 23° / 3.9" min. focus
Temperature Range -20 to 350°C (-4 to 662°F)
350 to 1200°C (662 to 2192°F)
Accuracy ±2% rdg.
Measurement Modes Spot, area, auto hot/cold, isotherm, average, surface moisture
Frame Refresh 33 Hz
Thermal Palettes 8
Focus Auto/Manual
Display Screen 4.3" touchscreen
Visual Camera Yes
Digital Zoom 3x
Image Fusion Twin Pix
Picture-in-Picture Yes
Memory Storage 2GB SD card
Video Output Yes
Insulation Alarm Yes
Dewpoint Alarm Yes
Color Alarm Yes
LED Illuminator Yes
Click here for complete specifications on the Testo 885-KIT

This Testo 885-1 Thermal Imager Kit Includes


Testo 885-1 Thermal Imaging Camera

Testo 885-1 Thermal Imaging Camera

For electrical/mechanical applications. Features a 320 x 240 60Hz infrared detector with a >30mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480.


REED 8706 Digital Psychrometer / Thermo-Hygrometer, Wet Bulb, Dew Point, Temperature, Humidity

REED 8706 Digital Psychrometer / Thermo-Hygrometer, Wet Bulb, Dew Point, Temperature, Humidity

Accurate and fast responding with optional probe for contact/differential temperature measurements.


REED R8500 9mm Video Inspection Camera, Recordable

REED R8500 9mm Video Inspection Camera, Recordable

9mm camera diameter and 2.5" color TFT LCD monitor. Saves high resolution images and records video.


REED LM-8000 6-in-1 Multi-Function Environmental Meter

REED LM-8000 6-in-1 Multi-Function Environmental Meter

Fast responding, pocket size design allows for one-handed operation.


REED R6010 Pinless Moisture Meter

REED R6010 Pinless Moisture Meter

Non-invasive pinless moisture detector with backlit LCD display.


REED R6015 Moisture Meter

REED R6015 Wood Moisture Meter

Designed specifically to measure moisture in approximately 170 species of wood.

Testo SuperResolution Offers

The patent-pending SuperResolution technology improves the thermal image quality of your Testo imagers with the included software upgrade. With SuperResolution, images have a higher resolution, and are therefore more detailed.

The important thing is that SuperResolution technology always records genuine temperature measuring values. There are no artificial intermediate values projected! This means that this technology offers the possibility of recording more temperature measuring values without using larger, more expensive detectors.

SuperResolution in Building Thermography

Outside Wall, Poor InsulationView hot-spots outside of a building in great detail, indicating poor insulation.
NFPA 1801-2013 CertificationInspect a floor heating system, ensuring that it is working properly.

In building thermography, SuperResolution technology is ideally suited to fast and effective detection of building damage. Energy losses in buildings’ heating or air conditioning systems can also be analyzed with the help of the high-resolution thermal images. The high level of detail in the image makes inadequate insulation, resulting heat losses or construction defects clearly visible. Leakages can also be displayed precisely in the thermal image using SuperResolution technology.

SuperResolution in Industrial Thermography

Hot FuseCheck for hot spots on fuses, to catch blow-outs before they happen.
Hot TransformerInspect for hot-spots on transformers, which can pose a safety hazard.

SuperResolution technology also plays an important role in industrial maintenance – above all in the detailed early detection of imminent damage in production-related plant components. In the case of mechanical components too, thermal irregularities (e.g. due to friction or incorrect adjustment) can indicate an elevated level of stress. In the field of research and development, the geometric resolution of the thermal image is of great significance. This is improved by a factor of 1.6 by SuperResolution technology. This means that even smaller objects can be recorded, which enables the measurement of the smallest possible structures.

Click on a category to view a selection of compatible accessories with the Testo 885-1 Thermal Imager Kit - Includes FREE Products with Purchase.

Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.




Customer Reviews for the Testo 885-KIT
