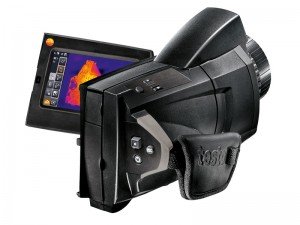

Testo 890-2 Thermal Imaging Camera, 640 x 480 FPA, NETD < 40 mK

Model: 890-2 | Order No: 0563 0890 72 | UPC: 4029547011573

Testo 890-2 Thermal Imaging Camera, 640 x 480 FPA, NETD < 40 mK-


Downloads: manual datasheet

Testo 890-2 Thermal Imaging Camera, 640 x 480 FPA, NETD < 40 mK

Model: 890-2 | Order No: 0563 0890 72

Thermal Imager for Building and Mechanical Applications. Features a 640 x 480 33Hz infrared detector with a <40mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 1280 x 960.

Thermal Imager for Building and Mechanical Applications. Features a 640 x 480 33Hz infrared detector with a <40mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 1280 x 960.

Sale Price $15504.00 USD
Regular Price $18240.00 USD
Availability 1 Week
Quantity

Add In-House Traceable Calibration to your 0563 0890 72

Add In-House Traceable Calibration to your 0563 0890 72


Testo 890-2 Thermal Imaging Camera Offers

Carry out damage-free tests on materials and components with the Thermal Imager Testo 890-2. Thanks to the 640 x 480-pixel detector the Testo 890-2 achieves the highest level of image quality. This allows for easy detection of weak spots and problems reliably in industrial and building thermography. With Testo's SuperResolution technology, the Testo 890-2 records extremely high-resolution images in megapixel quality (1280x960 pixels) for a high level of precision.

Features

  • Detector size 640 x 480 pixels. With 307,200 temperature measurement points, objects are detected in outstanding image quality
  • The included SuperResolution technology boosts the resolution to 1280 x 960 pixels, which improves the image quality four-fold
  • Flexibility thanks to rotatable handle and fold-out, rotatable display
  • Thermal sensitivity < 40 mK, making even the smallest temperature differences visible
  • Large field of view thanks to 42° lens. With the standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object quickly recorded
  • Panorama image assistant for large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images.
  • SiteRecognition Technology for repetitive thermography of similar measurement objects, SiteRecognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images
  • High temperature option expands the measuring range up to 2192° F
  • Fully radiometric video measurement including logger function (via USB) allows for real-time thermal analysis.
  • Interchangeable lenses
  • Special measurement mode for detecting areas at risk for mold growth
  • Lens protection glass
  • Auto focus
  • Built-in digital camera with power LEDs
  • Minimum focus distance 10 cm
  • Voice recording using headset
  • 640 x 480 Resolution
  • Surface Moisture
  • Full Radiometric Video

Applications

Providing Comprehensive Energy Advice, Reliable High Temperature Measurement, Electrical Maintenance Checks, Monitoring and Checking Solar Energy Systems, Analyzing Building Shells at a Glance, See Critical Temperatures on Circuit Boards Precisely, Power Distribution Systems.

Testo 890-2 Specifications

IR Resolution (Array Size) 307,200 (640 x 480)
Thermal Sensitivity < 0.04°C (40 mK)
Field of View 42° x 32° / 3.9" min. focus
Temperature Range -20 to 100°C (-4 to 212°F)
0 to 350°C (32 to 662°F)
350 to 1200°C (662 to 2192°F)
Accuracy ±2% rdg.
Measurement Modes Spot, area, auto hot/cold, Isotherm, average, surface moisture
Frame Refresh 33 Hz
Thermal Palettes 8
Focus Auto/Manual
Display Screen 4.3" touchscreen
Visual Camera Yes
Digital Zoom 3x
Image Fusion Twin Pix
Picture-in-Picture Yes
Memory Storage 2GB SD card
Video Output Yes
Insulation Alarm Yes
Dewpoint Alarm Yes
Color Alarm Yes
LED Illuminator Yes
Video Recording Yes
Annotations Bluetooth
Click here for complete specifications on the Testo 890-2

What's Included with the Testo 890-2

  • 890-2 Thermal Imager
  • Hard Shell Storage Case
  • 2GB SD Memory Card
  • USB Cable
  • IRSoft Software
  • Power Supply
  • Battery
  • Instruction Manual
  • Certificate of Conformity

Testo SuperResolution Offers

The patent-pending SuperResolution technology improves the thermal image quality of your Testo imagers with the included software upgrade. With SuperResolution, images have a higher resolution, and are therefore more detailed.

The important thing is that SuperResolution technology always records genuine temperature measuring values. There are no artificial intermediate values projected! This means that this technology offers the possibility of recording more temperature measuring values without using larger, more expensive detectors.

SuperResolution in Building Thermography

Outside Wall, Poor InsulationView hot-spots outside of a building in great detail, indicating poor insulation.
NFPA 1801-2013 CertificationInspect a floor heating system, ensuring that it is working properly.

In building thermography, SuperResolution technology is ideally suited to fast and effective detection of building damage. Energy losses in buildings’ heating or air conditioning systems can also be analyzed with the help of the high-resolution thermal images. The high level of detail in the image makes inadequate insulation, resulting heat losses or construction defects clearly visible. Leakages can also be displayed precisely in the thermal image using SuperResolution technology.

SuperResolution in Industrial Thermography

Hot FuseCheck for hot spots on fuses, to catch blow-outs before they happen.
Hot TransformerInspect for hot-spots on transformers, which can pose a safety hazard.

SuperResolution technology also plays an important role in industrial maintenance – above all in the detailed early detection of imminent damage in production-related plant components. In the case of mechanical components too, thermal irregularities (e.g. due to friction or incorrect adjustment) can indicate an elevated level of stress. In the field of research and development, the geometric resolution of the thermal image is of great significance. This is improved by a factor of 1.6 by SuperResolution technology. This means that even smaller objects can be recorded, which enables the measurement of the smallest possible structures.

Click on a category to view a selection of compatible accessories with the Testo 890-2 Thermal Imaging Camera, 640 x 480 FPA, NETD < 40 mK.

Testo 0554 8808 AC Power Supply for Thermal Imagers 0554 8808
Includes four switchable plug adapters.




Testo 0554 0191 Wireless Handle for Plug-in Probe Heads 0554 0191
Includes T/C Adapter. For use with the 435, 556, 560, 635, 735, 882, 875i-2, 885-2, 890-2, 925, and 926.




Testo 0636 9736 Humidity Plug-in Probe Head for Wireless Handle 0636 9736
Head measures 0 to 100% RH and -4.0° to 158.0 °F (-20 to 70°C). Requires the Testo 0554 0191 Wireless Handle for use.




Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.
