Testo 882 Thermal Imager Kit - Includes FREE Products with Purchase

Model: 882-KIT | UPC: 402954701099

Testo 882 Thermal Imager Kit - Includes FREE Products with Purchase-


Downloads: datasheet manual

Testo 882 Thermal Imager Kit - Includes FREE Products with Purchase

Model: 882-KIT

For electrical and mechanical applications. Features a 320 x 240 60Hz infrared detector with a 0.06°C thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480. This value added kit includes the REED 8706 Psychrometer, REED R8500 Video Inspection Camera, REED LM-8000 Environmental Meter, REED R6010 Moisture Detector, and REED R6015 Wood Moisture Detector for FREE.

For electrical and mechanical applications. Features a 320 x 240 60Hz infrared detector with a 0.06°C thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480. This value added kit includes the REED 8706 Psychrometer, REED R8500 Video Inspection Camera, REED LM-8000 Environmental Meter, REED R6010 Moisture Detector, and REED R6015 Wood Moisture Detector for FREE.

Sale Price $5621.05 USD
Regular Price $7408.00 USD
Availability 1 Week
Quantity

Add In-House Traceable Calibration to your 882

Add In-House Traceable Calibration to your 882


Testo 882-KIT Offers

Purchase a Testo 882 Thermal Imaging Camera and receive FREE: a REED 8706 Digital Psychrometer, a REED R8500 Video Inspection Camera, a REED LM-8000 Environmental Meter, a REED R6010 Moisture Detector, and a R6015 Wood Moisture Meter.

Testo 882 Thermal Imager

The Testo 882 features an ergonomic pistol design, 320 x 240 pixels, and takes precise infrared images. With 76,800 temperature measuring points, it sees every detail on the measured object. This makes it even easier for you to detect anomalies and weaknesses from greater distances. For you, that means: You see more and have more security when taking thermal images!

  • 32° wide angle lens with 7" minimum focal point
  • Solar mode identifies solar intensity values
  • Included SuperResolution Technology enhances image quality to 640 x 480
  • TwinPix overlays IR image over real image
  • Large 3.5" LCD Screen
  • Quality resolution 320 x 240
  • Patented SuperResolution provides 640 x 480 resolution images when downloaded to IRSoft
  • 32° wide angle lens, with a minimum of 7" focal point
  • High Temperature Option (1022°F)
  • Radiometric Video Recording
  • Isotherms
  • Voice Annotation with included headset
  • Lens Protection Glass
  • Humidity measurement with optional radio probe
  • Customizable Reporting Software
  • Included 2GB SD card for storage
  • Video Output via USB allows for immediate viewing on a computer screen

Applications

Providing Comprehensive Energy Advice, Reliable High Temperature Measurement, Electrical Maintenance Checks, Preventative Mechanical Maintenance, Location of Structural Defects in Buildings, Mold Prevention.


REED 8706 Psychrometer

Measures relative humidity, air temperature plus external probe temperature and quickly calculates wet bulb and dew point temperatures.

  • Simultaneous display of %RH, air temperature and dew point or wet bulb or external probe temperature in °F or °C
  • Max/Min/Avg readings and Data Hold
  • Display backlight
  • Humidity Range: 0 to 100% RH
  • Dew Point Range: -109.7 to 122°F (-78.7 to 50°C)
  • Wet Bulb Range: -6.9 to 122°F (-21.6 to 50°C)

REED R8500 9mm Video Inspection Camera, Recordable

9mm camera diameter and 2.5" color TFT LCD monitor. Saves high resolution images and records video.

  • Camera and video functions save high resolution images and video
  • Comfortable pistol grip design
  • High resolution 2.5" color LCD monitor
  • 9mm waterproof (IP67) camera head
  • Gooseneck cable retains configured shape
  • Cable expandable up to 30 ft. (~9m) with extensions (optional)
  • Four high visibility LED lights provide illumination in dimly lit environments
  • Expandable memory up to 32Gb (SD card sold separately)
  • 180° mirror rotation function
  • Low battery indicator and auto shut off

REED LM-8000 Environmental Meter

4-in-1 multi-function meter-anemometer, humidity meter, light meter and type-K digital thermometer.

  • Type K (NiCr-NiAl) thermocouple input jack
  • High precision thin-film capacitance humidity sensor
  • Photo diode and colour correction filter light sensor
  • Velocity Units: m/s, kph, mph, knots, and fpm
  • °F or °C and Lux or Ft-cd selectable
  • Data Hold, Record (Max/Min)

REED R6010 Moisture Detector

Detects moisture content in building materials of all kinds, as well as detects moisture distribution in walls, ceilings and floors.

  • Non-destructive - moisture sensor runs smoothly over the surface being tested with-out scratching or penetrating the surface
  • Classifies moisture status as: dry, at risk or wet
  • Display Hold button
  • Max/Min function with alarm indication
  • LCD display with backlighting
  • Low battery indication with auto power off

REED R6015 Wood Moisture Meter

Measure moisture content in wood either directly with built-in moisture pins or use remote hand-press probe (included) on hard surfaces.

  • Electrical resistance measuring principle
  • Automatic temperature compensation when used with included temperature probe improves accuracy of moisture measurements
  • Memory contains 8 wood groups with calibrations for approx.170 species of wood
  • Built-in 2-point calibration check
  • User settable auto power off with override and low battery indication
  • Integral contact pins are replaceable, remote moisture electrode pins are not replaceable

Testo 882 Specifications

IR Resolution (Array Size) 76,800 (320 x 240)
Thermal Sensitivity <0.05°C (50 mK)
Field of View 32° x 23° / 7" min. focus
Temperature Range -20 to 100°C (-4 to 212°F)
0 to 350°C (32 to 662°F)
350 to 550°C (662 to 1022°F)
Accuracy ±2% rdg.
Measurement Modes Spot, area, auto hot/cold, isotherm, average, surface moisture
Frame Refresh 33 Hz
Thermal Palettes 4
Focus Manual & Motor
Display Screen 3.5" LCD
Visual Camera Yes
Image Fusion Twin Pix
Picture-in-Picture Yes
Memory Storage 2GB SD card
Video Output Yes
Insulation Alarm Yes
Dewpoint Alarm Yes
Color Alarm Yes
LED Illuminator Yes
Annotations Yes
Click here for complete specifications on the Testo 882-KIT

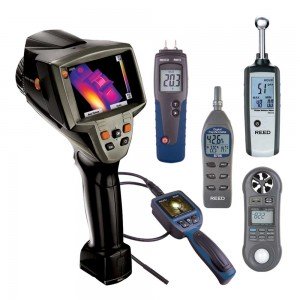

This Testo 882 Thermal Imager Kit Includes


Testo 882 Thermal Imaging Camera

Testo 882 Thermal Imaging Camera

For electrical and mechanical applications. Features a 320 x 240 60Hz infrared detector with a 0.06°C thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480.


REED 8706 Digital Psychrometer / Thermo-Hygrometer, Wet Bulb, Dew Point, Temperature, Humidity

REED 8706 Digital Psychrometer / Thermo-Hygrometer, Wet Bulb, Dew Point, Temperature, Humidity

Accurate and fast responding with optional probe for contact/differential temperature measurements.


REED R8500 9mm Video Inspection Camera, Recordable

REED R8500 9mm Video Inspection Camera, Recordable

9mm camera diameter and 2.5" color TFT LCD monitor. Saves high resolution images and records video.


REED LM-8000 6-in-1 Multi-Function Environmental Meter

REED LM-8000 6-in-1 Multi-Function Environmental Meter

Fast responding, pocket size design allows for one-handed operation.


REED R6010 Pinless Moisture Meter

REED R6010 Pinless Moisture Meter

Non-invasive pinless moisture detector with backlit LCD display.


REED R6015 Moisture Meter

REED R6015 Wood Moisture Meter

Designed specifically to measure moisture in approximately 170 species of wood.

Testo SuperResolution Offers

The patent-pending SuperResolution technology improves the thermal image quality of your Testo imagers with the included software upgrade. With SuperResolution, images have a higher resolution, and are therefore more detailed.

The important thing is that SuperResolution technology always records genuine temperature measuring values. There are no artificial intermediate values projected! This means that this technology offers the possibility of recording more temperature measuring values without using larger, more expensive detectors.

SuperResolution in Building Thermography

Outside Wall, Poor InsulationView hot-spots outside of a building in great detail, indicating poor insulation.
NFPA 1801-2013 CertificationInspect a floor heating system, ensuring that it is working properly.

In building thermography, SuperResolution technology is ideally suited to fast and effective detection of building damage. Energy losses in buildings’ heating or air conditioning systems can also be analyzed with the help of the high-resolution thermal images. The high level of detail in the image makes inadequate insulation, resulting heat losses or construction defects clearly visible. Leakages can also be displayed precisely in the thermal image using SuperResolution technology.

SuperResolution in Industrial Thermography

Hot FuseCheck for hot spots on fuses, to catch blow-outs before they happen.
Hot TransformerInspect for hot-spots on transformers, which can pose a safety hazard.

SuperResolution technology also plays an important role in industrial maintenance – above all in the detailed early detection of imminent damage in production-related plant components. In the case of mechanical components too, thermal irregularities (e.g. due to friction or incorrect adjustment) can indicate an elevated level of stress. In the field of research and development, the geometric resolution of the thermal image is of great significance. This is improved by a factor of 1.6 by SuperResolution technology. This means that even smaller objects can be recorded, which enables the measurement of the smallest possible structures.

Click on a category to view a selection of compatible accessories with the Testo 882 Thermal Imager Kit - Includes FREE Products with Purchase.

Testo 0554 0191 Wireless Handle for Plug-in Probe Heads 0554 0191
Includes T/C Adapter. For use with the 435, 556, 560, 635, 735, 882, 875i-2, 885-2, 890-2, 925, and 926.




Testo 0636 9736 Humidity Plug-in Probe Head for Wireless Handle 0636 9736
Head measures 0 to 100% RH and -4.0° to 158.0 °F (-20 to 70°C). Requires the Testo 0554 0191 Wireless Handle for use.




Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.
