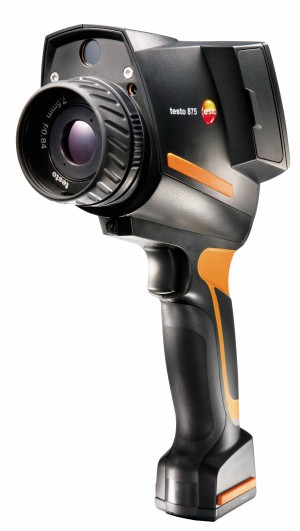

Testo 875-1 Thermal Imager, 19 200 Pixels (160 x 120)

Model: 0560 8751 | UPC: 4029547012358

Testo 875-1 Thermal Imager, 19 200 Pixels (160 x 120)-


Downloads: datasheet manual

Testo 875-1 Thermal Imager, 19 200 Pixels (160 x 120)

Model: 0560 8751

Meets BPI/RESNET Infrared Imaging System Performance Standard Requirements for Weatherization and HVAC/R Applications. Specifically designed to monitor building energy performance.

Meets BPI/RESNET Infrared Imaging System Performance Standard Requirements for Weatherization and HVAC/R Applications. Specifically designed to monitor building energy performance.

This product has been discontinued. Click here for the replacement model(s).


Recommended Accessories


TESTO 875-1 Description

The Testo 875-1 features a detector size of 160 x 120 pixels providing 19,200 temperature measurement points and good quality images clearly and precisely. Optional SuperResolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher. With an excellent thermal sensitivity of <80 mK, even small temperature differences are visible. Critical temperature statistics are directly displayed using the automatic Hot-Cold-Spot recognition.

TESTO 875-1 Features:

  • Large 3.5" LCD screen
  • Best in class 160x120 thermal array
  • BPI/RESNET compliant for weatherization/HVAC/R application
  • < 80 mK NETD to insure the detection of small thermal variations
  • 2GB SD card for expanded image storage
  • TwinPix technology allows visual and infrared images to be blended into one image

TESTO 875-1 Specifications:

IR RESOLUTION (ARRAY SIZE) 19,200 (160 x 120)
THERMAL SENSITIVITY <0.08°C (80mK)
FIELD OF VIEW 32° x 23° / 7" min. focus
TEMPERATURE RANGE -4 to 232°F (-20 to 100°C)/ 32 to 536°F (0 to 280°C)
ACCURACY ±2% rdg.
MEASUREMENT MODES Spot
FRAME REFRESH 9 Hz
THERMAL PALETTES 4
FOCUS Manual
DISPLAY SCREEN 3.5" LCD
VISUAL CAMERA No
DIGITAL ZOOM No
IMAGE FUSION Twin Pix
PICTURE-IN-PICTURE Yes
MEMORY STORAGE 2GB SD card
VIDEO OUTPUT Yes
INSULATION ALARM Yes
COLOUR ALARM Yes

TESTO 875-1 What's Included:

1 - Hard shell storage case
1 - 2 GB SD memory card
1 - IRSoft software
1 - Power supply
1 - Battery

Testo SuperResolution Offers

The patent-pending SuperResolution technology improves the thermal image quality of your Testo imagers with the included software upgrade. With SuperResolution, images have a higher resolution, and are therefore more detailed.

The important thing is that SuperResolution technology always records genuine temperature measuring values. There are no artificial intermediate values projected! This means that this technology offers the possibility of recording more temperature measuring values without using larger, more expensive detectors.

SuperResolution in Building Thermography

Outside Wall, Poor InsulationView hot-spots outside of a building in great detail, indicating poor insulation.
NFPA 1801-2013 CertificationInspect a floor heating system, ensuring that it is working properly.

In building thermography, SuperResolution technology is ideally suited to fast and effective detection of building damage. Energy losses in buildings’ heating or air conditioning systems can also be analyzed with the help of the high-resolution thermal images. The high level of detail in the image makes inadequate insulation, resulting heat losses or construction defects clearly visible. Leakages can also be displayed precisely in the thermal image using SuperResolution technology.

SuperResolution in Industrial Thermography

Hot FuseCheck for hot spots on fuses, to catch blow-outs before they happen.
Hot TransformerInspect for hot-spots on transformers, which can pose a safety hazard.

SuperResolution technology also plays an important role in industrial maintenance – above all in the detailed early detection of imminent damage in production-related plant components. In the case of mechanical components too, thermal irregularities (e.g. due to friction or incorrect adjustment) can indicate an elevated level of stress. In the field of research and development, the geometric resolution of the thermal image is of great significance. This is improved by a factor of 1.6 by SuperResolution technology. This means that even smaller objects can be recorded, which enables the measurement of the smallest possible structures.

Click on a category to view a selection of compatible accessories with the Testo 875-1 Thermal Imager, 19 200 Pixels (160 x 120).

Testo 0554 8808 AC Power Supply for Thermal Imagers 0554 8808
Includes four switchable plug adapters.




Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.
