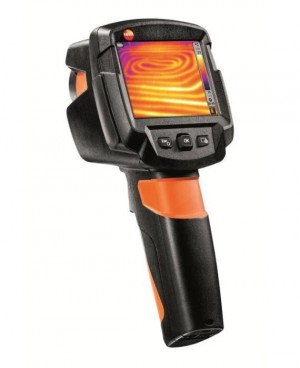

Testo 870-1 Thermal Imaging Camera, 160 x 120 FPA, NETD < 100mK

Model: 0560 8701 | UPC: 4029547012594

Testo 870-1 Thermal Imaging Camera, 160 x 120 FPA, NETD < 100mK-


Downloads: manual datasheet

Testo 870-1 Thermal Imaging Camera, 160 x 120 FPA, NETD < 100mK

Model: 0560 8701

Developed for professionals in the field. For typical industrial and commercial applications as well as facility management. State-of-the-art, easy-to-use technology. Included SuperResolution Technology enhances image quality to 320 x 240.

Developed for professionals in the field. For typical industrial and commercial applications as well as facility management. State-of-the-art, easy-to-use technology. Included SuperResolution Technology enhances image quality to 320 x 240.

This product has been discontinued. Click here for the replacement model(s).


Recommended Accessories


Testo 870-1 Thermal Imaging Camera Offers

Carrying out quick checks with a conventional thermal camera is not as easy many people may think. That's because IR cameras are complex pieces of equipment that are popularly used by a wide range of professionals, from architects to energy consultants. But what if you're a professional who works in an industrial or commercial environment or in Facility Management? Would you want to buy a thermal camera with a multitude of functions and features you know you will never need?

No, we didn't think so either. That's why we got together with professionals in the field and came up with a sophisticated yet downsized camera that ticked all the boxes when it came to providing you with all the features you need to carry out your professional work. The Testo 870-1 is a state-of-the-art, easy-to-use IR camera that saves you lots of time. And time, as we all know, is money.

Features

Not only is this quality thermal imager easy to use – just press the power key to start – it is also equipped with a wide range of useful functions and features

  • Superior image quality: 19,200 temperature measuring points for high precision detection. Has an IR resolution of 160 x 120 pixels, and the included SuperResolution enhances it by a whole class to 320 x 240 pixels
  • Thermal sensitivity of <100 mK shows even minute temperature variations
  • Wide field of view: focus free 34°lens for excellent overall view of temperature distribution
  • Critical temperature situations displayed directly thanks to the auto hot/cold spot trackers
  • Pro software for assessing images on your PC
  • Thermal images can be saved as JPEG
  • Easy-to-use, one-hand thermal imaging camera
  • Measures minute temperature variations (thermal sensitivity < 100 mK), auto hot/cold spot trackers
  • Wide field of view: focus free 34° lens

Applications

Detecting leaks, locating thermal bridges, identifying overheated connections: the Testo 870-1 thermal camera is ideal for a wide range of applications in industrial and commercial settings. Saves time during quality control and provides a reliable means of carrying out checks in production.

Testo 870-1 Specifications

Infrared Resolution 160 x 120
Spectral Range 7.5 um; 14 um
Focus Fixed Focus
Image Refresh Rate 9 Hz
SuperResolution (IFOV) 2.3 mrad
SuperResolution (Pixel) 320 x 240 pixels
Geometric Resolution (IFOV) 3.68 mrad
Field of View 34° x 26°
Thermal Sensitivity 100mK
Data Output Display IR Image
Storage Temperature -22 to 140°F
Operating Temperature 5 to 122°F
Battery Type Fast-charging, Li-ion battery
Battery Life 4 Hours
Dimensions 219 x 96 x 95 mm
Click here for complete specifications on the Testo 0560 8701

What's Included with the Testo 870-1

  • 870-1 Thermal Imaging Camera
  • IRSoft software
  • USB cable
  • Li-Ion battery
  • Power adaptor
  • Hard shell carrying case
  • Certificate of conformity
  • Manual

Testo SuperResolution Offers

The patent-pending SuperResolution technology improves the thermal image quality of your Testo imagers with the included software upgrade. With SuperResolution, images have a higher resolution, and are therefore more detailed.

The important thing is that SuperResolution technology always records genuine temperature measuring values. There are no artificial intermediate values projected! This means that this technology offers the possibility of recording more temperature measuring values without using larger, more expensive detectors.

SuperResolution in Building Thermography

Outside Wall, Poor InsulationView hot-spots outside of a building in great detail, indicating poor insulation.
NFPA 1801-2013 CertificationInspect a floor heating system, ensuring that it is working properly.

In building thermography, SuperResolution technology is ideally suited to fast and effective detection of building damage. Energy losses in buildings’ heating or air conditioning systems can also be analyzed with the help of the high-resolution thermal images. The high level of detail in the image makes inadequate insulation, resulting heat losses or construction defects clearly visible. Leakages can also be displayed precisely in the thermal image using SuperResolution technology.

SuperResolution in Industrial Thermography

Hot FuseCheck for hot spots on fuses, to catch blow-outs before they happen.
Hot TransformerInspect for hot-spots on transformers, which can pose a safety hazard.

SuperResolution technology also plays an important role in industrial maintenance – above all in the detailed early detection of imminent damage in production-related plant components. In the case of mechanical components too, thermal irregularities (e.g. due to friction or incorrect adjustment) can indicate an elevated level of stress. In the field of research and development, the geometric resolution of the thermal image is of great significance. This is improved by a factor of 1.6 by SuperResolution technology. This means that even smaller objects can be recorded, which enables the measurement of the smallest possible structures.

Click on a category to view a selection of compatible accessories with the Testo 870-1 Thermal Imaging Camera, 160 x 120 FPA, NETD < 100mK.

Testo 0554 8808 AC Power Supply for Thermal Imagers 0554 8808
Includes four switchable plug adapters.




Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.




Customer Reviews for the Testo 0560 8701

Ask a question about Testo 870-1 Thermal Imaging Camera, 160 x 120 FPA, NETD < 100mK

Testo 870-1 Thermal Imaging Camera Offers

Carrying out quick checks with a conventional thermal camera is not as easy many people may think. That's because IR cameras are complex pieces of equipment that are popularly used by a wide range of professionals, from architects to energy consultants. But what if you're a professional who works in an industrial or commercial environment or in Facility Management? Would you want to buy a thermal camera with a multitude of functions and features you know you will never need?

No, we didn't think so either. That's why we got together with professionals in the field and came up with a sophisticated yet downsized camera that ticked all the boxes when it came to providing you with all the features you need to carry out your professional work. The Testo 870-1 is a state-of-the-art, easy-to-use IR camera that saves you lots of time. And time, as we all know, is money.

Features

Not only is this quality thermal imager easy to use – just press the power key to start – it is also equipped with a wide range of useful functions and features

  • Superior image quality: 19,200 temperature measuring points for high precision detection. Has an IR resolution of 160 x 120 pixels, and the included SuperResolution enhances it by a whole class to 320 x 240 pixels
  • Thermal sensitivity of <100 mK shows even minute temperature variations
  • Wide field of view: focus free 34°lens for excellent overall view of temperature distribution
  • Critical temperature situations displayed directly thanks to the auto hot/cold spot trackers
  • Pro software for assessing images on your PC
  • Thermal images can be saved as JPEG
  • Easy-to-use, one-hand thermal imaging camera
  • Measures minute temperature variations (thermal sensitivity < 100 mK), auto hot/cold spot trackers
  • Wide field of view: focus free 34° lens

Applications

Detecting leaks, locating thermal bridges, identifying overheated connections: the Testo 870-1 thermal camera is ideal for a wide range of applications in industrial and commercial settings. Saves time during quality control and provides a reliable means of carrying out checks in production.

Testo 870-1 Specifications

Infrared Resolution 160 x 120
Spectral Range 7.5 um; 14 um
Focus Fixed Focus
Image Refresh Rate 9 Hz
SuperResolution (IFOV) 2.3 mrad
SuperResolution (Pixel) 320 x 240 pixels
Geometric Resolution (IFOV) 3.68 mrad
Field of View 34° x 26°
Thermal Sensitivity 100mK
Data Output Display IR Image
Storage Temperature -22 to 140°F
Operating Temperature 5 to 122°F
Battery Type Fast-charging, Li-ion battery
Battery Life 4 Hours
Dimensions 219 x 96 x 95 mm
Click here for complete specifications on the Testo 0560 8701

What's Included with the Testo 870-1

  • 870-1 Thermal Imaging Camera
  • IRSoft software
  • USB cable
  • Li-Ion battery
  • Power adaptor
  • Hard shell carrying case
  • Certificate of conformity
  • Manual

Testo SuperResolution Offers

The patent-pending SuperResolution technology improves the thermal image quality of your Testo imagers with the included software upgrade. With SuperResolution, images have a higher resolution, and are therefore more detailed.

The important thing is that SuperResolution technology always records genuine temperature measuring values. There are no artificial intermediate values projected! This means that this technology offers the possibility of recording more temperature measuring values without using larger, more expensive detectors.

SuperResolution in Building Thermography

Outside Wall, Poor InsulationView hot-spots outside of a building in great detail, indicating poor insulation.
NFPA 1801-2013 CertificationInspect a floor heating system, ensuring that it is working properly.

In building thermography, SuperResolution technology is ideally suited to fast and effective detection of building damage. Energy losses in buildings’ heating or air conditioning systems can also be analyzed with the help of the high-resolution thermal images. The high level of detail in the image makes inadequate insulation, resulting heat losses or construction defects clearly visible. Leakages can also be displayed precisely in the thermal image using SuperResolution technology.

SuperResolution in Industrial Thermography

Hot FuseCheck for hot spots on fuses, to catch blow-outs before they happen.
Hot TransformerInspect for hot-spots on transformers, which can pose a safety hazard.

SuperResolution technology also plays an important role in industrial maintenance – above all in the detailed early detection of imminent damage in production-related plant components. In the case of mechanical components too, thermal irregularities (e.g. due to friction or incorrect adjustment) can indicate an elevated level of stress. In the field of research and development, the geometric resolution of the thermal image is of great significance. This is improved by a factor of 1.6 by SuperResolution technology. This means that even smaller objects can be recorded, which enables the measurement of the smallest possible structures.

Click on a category to view a selection of compatible accessories with the Testo 870-1 Thermal Imaging Camera, 160 x 120 FPA, NETD < 100mK.

Testo 0554 8808 AC Power Supply for Thermal Imagers 0554 8808
Includes four switchable plug adapters.




Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.
