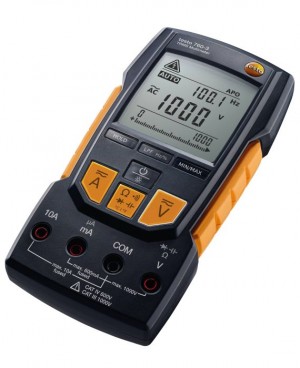

Testo 760-3 Digital Multimeter with Capacitance, TRMS, LPF, Auto Setup, Duty Cycle, Temperature, 1000V

Model: 760-3 | Order No: 0590 7603

Testo 760-3 Digital Multimeter with Capacitance, TRMS, LPF, Auto Setup, Duty Cycle, Temperature, 1000V-


Downloads: datasheet

Testo 760-3 Digital Multimeter with Capacitance, TRMS, LPF, Auto Setup, Duty Cycle, Temperature, 1000V

Model: 760-3 | Order No: 0590 7603

The Testo 760-3 has an AC/DC voltage measuring range of 1000 V, TRMS, duty cycle, low pass filter, and temperature measuring. Testo's exclusive auto-test setup enables the user to simply turn on the unit, connect the leads, and begin measuring. The Testo 760 Digital Multimeter detects the lead connection and prevents switching from V to A or A to V if leads are not in proper socket.

The Testo 760-3 has an AC/DC voltage measuring range of 1000 V, TRMS, duty cycle, low pass filter, and temperature measuring. Testo's exclusive auto-test setup enables the user to simply turn on the unit, connect the leads, and begin measuring. The Testo 760 Digital Multimeter detects the lead connection and prevents switching from V to A or A to V if leads are not in proper socket.

Sale Price $204.00 USD
Regular Price $240.00 USD
Availability 1 in Stock
Quantity

Add In-House Traceable Calibration to your 0590.7603

Add In-House Traceable Calibration to your 0590.7603


Testo 760-3 Offers

Features

  • 1000 V AC/DC voltage measuring range, TRMS, and Low Pass Filter
  • Auto test-setup based upon lead connection prevents blown fuses in the meter
  • Meter automatically detects testing in-process and selects correct meter configuration to save time and optimize accuracy
  • Measure up to 400A with optional clamp probe adapter

Applications

Electrical Contractors, HVAC/R Technicians, Plant Maintenance

Compare - Electrical Instrument Comparison

Testo 760-3 Specifications

Temperature-Type K TC
Measuring Range -4.0° to 932.0°F/-20 to +500°C
Accuracy ±33.8°F(32.0° to 212.0°F)/±1°C(0 to +100°C)
Resolution 0.1°F
DC Voltage
Resolution 600mV/0.1mV
6.000V/1mV
60.00V/10mV
600.0V/100mV
Accuracy ±(0.8% of mv + 3 Digit)
AC Voltage
Resolution 600mV/0.1mV
6.000V/1mV
60.00V/10mV
600.0V/100mV
Accuracy ±(0.8% of mv + 3 Digit)
DC Current
Resolution 600µA/0.1µA
6000µA/1µA
60.00mA/10µA
600.0mA/100µA
6A/1mA
10A/10mA
Accuracy ±(1.5% of mv + 5 Digit)
AC Current
Resolution 600µA/0.1µA
6000µA/1µA
60.00mA/10µA
600.0mA/100µA
6A/1mA
10A/10mA
Accuracy ±(1.5% of mv + 5 Digit)
Resistance
Resolution 60.00Ohm/0.01Ohm
600.0Ohm/0.1Ohm
6.000kOhm/1Ohm
60.00kOhm/10Ohm
600.0kOhm/100Ohm
6.000MOhm/1kOhm
60.00MOhm/10kOhm
Accuracy ±(1.5% of mv + 3 Digit)
Capacitance
Resolution 6.000nF/0.001nF
60.00nF/0.01nF
600.0nF/0.1nF
6.000µF/0.001µF
60.00µF/0.01µF
600.0µF/0.1µF
6.000mF/1µF
30.00mF/10µF
Accuracy ±(0.5% of mv + 3 Digit)
Frequency
Resolution 600.0Hz/0.1Hz
6.000kHz/1Hz
60.00kHz/10Hz
600.0kHz/100Hz
6.000MHz/1kHz
30.00MHz/10 kHz
Accuracy ±(0.1% of mv + 1 Digit)
General Technical Data
Protection class IP64
Storage Temperature 5° to 140°F/-15 to +60°C
Overvoltage Category CAT III 1000V; CAT IV 600V
Operating Temperature 14° to 122°F/-10 to +50°C
Click here for complete specifications on the Testo 760-3

What's included with Testo 760-3

  • 760-3 Digital Multimeter
  • Test leads
  • Batteries

Testo 760 - Digital Multimeter

Click on a category to view a selection of compatible accessories with the Testo 760-3 Digital Multimeter with Capacitance, TRMS, LPF, Auto Setup, Duty Cycle, Temperature, 1000V.

Testo 0590 0001 Magnetic Hanging Strap 0590 0001
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0014 Test Lead Extension Cables, 90° Plug 0590 0014
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0013 Test Lead Extension Cables, Straight Plug 0590 0013
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0012 Pin Type Standard Test Leads, Straight Plug 0590 0012
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0011 Standard Test Leads, 90° Plug 0590 0011
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0010 Pin Type Test Leads, 90° Plug 0590 0010
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0009 Standard Alligator Clips 0590 0009
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0008 Safety Alligator Clips 0590 0008
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0006 Spare Fuses, set of 5, 630mA/1000V 0590 0006
For use with Testo 760-3 Digital Multimeter.




Testo 0590 0004 Spare Fuses, set of 5, 11A/1000V 0590 0004
For use with Testo 760-3 Digital multimeter.




Testo 0590 0003 Current Probe Adapter 0590 0003
You can easily manage even in tight spots with this clamp meter adapter! The movable pincer arm can be fully retracted, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. For use with Testo 760-2 and 760-3 Digital Multimeters.




Testo 0590 0002 Type K Thermocouple Adapter 0590 0002
For use with Testo 760-2 and 760-3 Digital Multimeters.




Testo 0590 0016 Carrying Case for the 760 Series 0590 0016
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.
