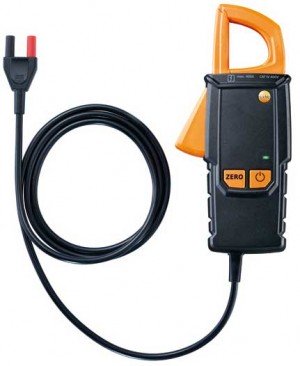

Testo 0590 0003 Current Probe Adapter

Model: 0590 0003

Testo 0590 0003 Current Probe Adapter-


Downloads: datasheet

Testo 0590 0003 Current Probe Adapter

Model: 0590 0003

You can easily manage even in tight spots with this clamp meter adapter! The movable pincer arm can be fully retracted, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. For use with Testo 760-2 and 760-3 Digital Multimeters.

You can easily manage even in tight spots with this clamp meter adapter! The movable pincer arm can be fully retracted, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. For use with Testo 760-2 and 760-3 Digital Multimeters.

Sale Price $100.30 USD
Regular Price $118.00 USD
Availability 3 in Stock
Quantity

Add In-House Traceable Calibration to your 0590.0003

Add In-House Traceable Calibration to your 0590.0003


Testo 0590 0003 Offers

The clamp meter adapter means you can take advantage of non-contact current measurement (with the testo 760-2/-3 digital multimeter). The clamp meter adapter is particularly suitable for measurement on tightly packed power cables or conductors with a small diameter.

Features

  • Fully retractable pincer arm – ideal for measurements in tight places
  • Direct / alternating current measurement up to 400 A AC/DC possible
  • Display of 1 mV per A
  • Overvoltage category CAT IV 600 V

Testo 0590 0003 Specifications

Dimensions 8 x 4 x 2 in. / 210 x 100 x 42 mm
Operating temperature 32° to 122 °F / 0 to +50 °C
Protection class IP40
Warranty 2 years
Battery type 3 x AAA
Storage temperature 5° to 140 °F / -15 to +60 °C
Weight 13 oz. / 370 g
Overvoltage Category CAT IV 600V
Authorizations TÜV; CE; CSA
Click here for complete specifications on the Testo 0590 0003

What's included with the Testo 0590 0003

  • Current Probe Adapter
  • 3X AAA Batteries
