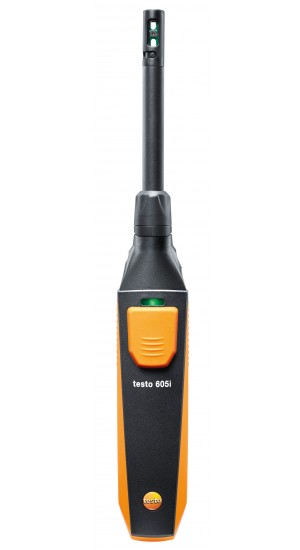

Testo 605i Smart Probe Thermo-Hygrometer

Model: 605i | Order No: 0560 2605 03

Testo 605i Smart Probe Thermo-Hygrometer-


Downloads: datasheet

Testo 605i Smart Probe Thermo-Hygrometer

Model: 605i | Order No: 0560 2605 03

Features a foldable to 90°, small diameter probe that is ideal for in-duct measurements, along with a Bluetooth range of up to 350'. Quickly and accurately measure relative humidity and temperature in rooms, ducts, and chambers, as well as automatically calculate the dew point and wet bulb temperature.

Features a foldable to 90°, small diameter probe that is ideal for in-duct measurements, along with a Bluetooth range of up to 350'. Quickly and accurately measure relative humidity and temperature in rooms, ducts, and chambers, as well as automatically calculate the dew point and wet bulb temperature.

Sale Price $101.15 USD
Regular Price $119.00 USD
Availability 35 in Stock
Quantity

Testo 605i Offers

The smart probe thermo-hygrometer is a humidity and temperature measuring instrument that quickly and accurately measures relative humidity, dew point, and temperature in rooms, ducts, registers, and environmental boxes/chambers.

Users can read the measurements using the testo Smart Probes App installed on their smart device. Allows you to remotely read measurements from up to six Smart Probes and easily document/report the results, and all measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files, and the app can create custom reports which can be saved and/or shared by email.

Features

  • Quickly and accurately measures relative humidity and temperature in rooms, ducts, and chambers
  • Automatically calculates dew point and wet bulb temperature
  • Probe foldable to 90°
  • Bluetooth range of up to 350'
  • Small diameter probe is ideal for in-duct measurements
  • Tough, accurate, and easy-to-use

Applications

  • HVAC/R

Download the App

Testo 605i Specifications

Sensor Type - Humidity (Capacitive)
Measuring Range 0 to 100% RH
Accuracy ±3.0% RH (10 to 35% RH)
±2.0% RH (35 to 65% RH)
±3.0% RH (65 to 90% RH)
±5% RH (<10% RH or >90% RH) (at 77°F)
Resolution 0.1% RH
Sensor Type - NTC
Measuring Range -4 to 140°F (-20 to 60°C)
Accuracy ±1.4°F (-4 to 32°F)
±0.9°F (32 to 140°F)
Resolution 0.1°F
General Specifications
Compatibility Requires iOS 8.3 (or later)/Android 4.3 (or later); requires mobile device with Bluetooth 4.0
Operating Temperature -4 to 122°F (-20 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Measuring Units °F, °C, %rF / %RH, °Ftd, °Ctd, wet-bulb °F, wet-bulb °C
Battery Type: 3 x AAA batteries
Life: 150 hrs
Dimensions 8.6 x 1.2 x 1.0"
Probe shaft: 2.9" (length), 0.5" (diameter)
Click here for complete specifications on the Testo 605i

What's included with the Testo 605i

  • Thermo-Hygrometer
  • Certificate of Calibration
  • 3 x AAA Batteries

The Testo Smart Probes App

One App to control multiple instruments.
More flexibility

The new Smart Probes Testo 115i, Testo 605i and Testo 549i have an extended Bluetooth range of up to 350 feet. With the telescope of the Testo 405i, your reach is extended by 15.7 inches in ventilation duct measurements.

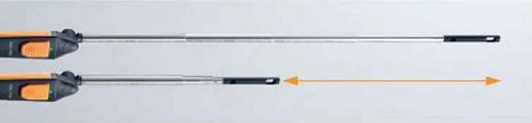

Testo 405i with telescopic reach of 15.7”

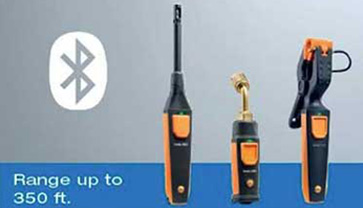

Testo’s 115i, 605i and 549i smart probes with an extended Bluetooth range of 350’
Testo’s 605i with bendable probe for better mounting
Testo’s 5495i angled by 45° for better mounting
Better handling

Measurement at a vent is comfortable with the bendable probe of the new Testo 605i. Its thinner measurement tip is ideal for smaller measurement apertures, and the stable magnetic holder ensures even more secure attachment. The connection of the new Testo 549i is angled by 45° for easier mounting.

Superheating and subcooling on air conditioning systems
  • Simultaneous measurement of temperature and pressure on the high and low pressure sides of the system with two clamp thermometers, Testo 115i and two high pressure measuring instruments, Testo 549i.
  • Problem-free measurement even at measurement locations which are far apart (indoor and outdoor areas) thanks to long range of up to 350 ft.

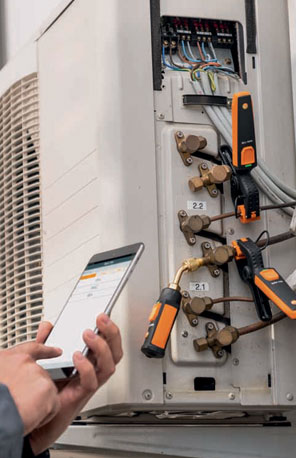

Testo’s 115i,549i and 605i application in use on smartphone application
How the Testo Smart Probes App supports you in this application:
  • 90 refrigerants stored
  • Automatic updates of new refrigerants
  • Automatic determination of condensation and evaporation temperature, and calculation of superheating and subcooling

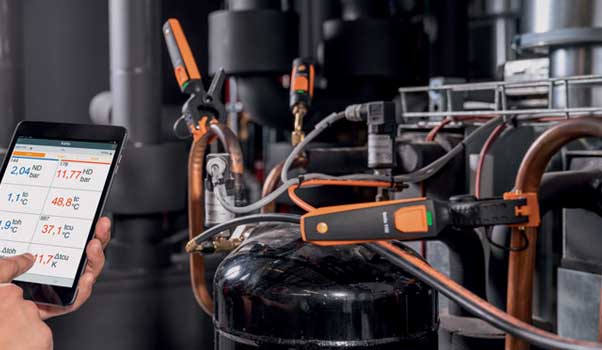

Testo’s 115i and 549i operated on smartphone while on heating system
Cooling and heating performance of air conditioning systems
  • Volume flow measurement with the thermal anemometer Testo 405i
  • Simultaneous measurement of exhaust and air intake with two thermohygrometers; Testo 605i
How the Testo Smart Probes App supports you in this application:
  • Automatic calculation of cooling/heating performance
Humidity measuring using the 605i smart probe
Functional testing of air conditioning systems
  • Air humidity measurement with the thermo-hygrometer Testo 605i
  • Volume flow recording with the vane anemometer Testo 410i and the thermal anemometer Testo 405i
  • Air temperature measurement with the thermo-hygrometer, Testo 605i
How the Testo Smart Probes App supports you in this application:
  • Easy parametrization of the outlet/duct cross-section for measuring the volume flow
  • Listing of several volume flows and calculation of the total volume flow
  • Calculation of dewpoint and wet bulb temperature
Smart probes kit laying on an air vent while using smartphone
One App. Eight measuring instruments.

For VAC, refrigeration and heating contractors, measurement is more mobile than ever before, with the new Testo Smart Probes. Because the compact measuring instruments can be operated wirelessly with your own smartphone or tablet, and conveniently transported in the handy testo Smart Case. That way, you always have all your measurement technology with you and immediately ready to hand. All measurement data are transmitted directly to the free testo Smart Probes App, and with a mobile end device, can be read out, turned into a report, and finally sent directly by e-mail. And the App can do much more: with practical measurement menus and special functions, it turns your smartphone into a measurement data centre – and makes your work more efficient. Welcome to the world of digital measurement technology

Testo VAC Set layed on the ground near a drain
Advantages
  • Wireless readout of the measurement values on your smartphone/tablet – even at some distance from the measuring instrument.
  • Display of up to six Smart probes at the same time.- The App quickly visualizes measurement value changes – as a graph or a table.
  • Pre-stored menus for specific applications, incl.: automatic calculation of evaporation and condensation temperatures, as well as superheating and sub-cooling; volume flow measurement in ducts/at outlets; non-contact temperature measurement by infrared with fast image documentation incl. measurement values and measurement spot marking.
  • Measurement data reports can be supported by images created with the App, and immediately sent as PDF or Excel files.
Testo Smart Probes app in use on a duct
Testo Smart Probes Family surrounding two smartphones
Improved operation

The Testo Smart Probes combine professional measurement technology with convenient operation. This begins with their size – each of the compact tools fits easily into your pants pocket, and it is no problem to have several Smart Probes accompany you everywhere in the Smart Case.

Using the App on your smartphone, operation and documentation are childsplay. As for all the other features which considerably increase your convenience in measurement, you can best discover them yourself.

All smart probes on a metal table in front of a fan
Download the App
