Testo 552 Digital Vacuum Gauge

Model: 0560 5520

Testo 552 Digital Vacuum Gauge-


Downloads: datasheet manual

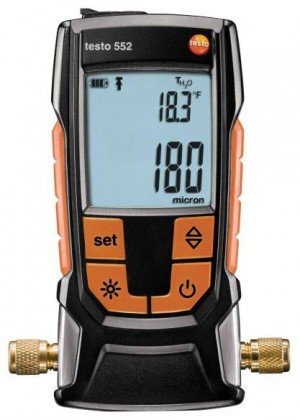

Testo 552 Digital Vacuum Gauge

Model: 0560 5520

The testo 552 is a digital vacuum measuring instrument for the evacuation of refrigeration systems and heat pumps. It measures even the smallest absolute pressures and provides highly precise information on the status of the dehumidification of a system (removal of foreign substances, incl. oils or foreign gases).

The testo 552 is a digital vacuum measuring instrument for the evacuation of refrigeration systems and heat pumps. It measures even the smallest absolute pressures and provides highly precise information on the status of the dehumidification of a system (removal of foreign substances, incl. oils or foreign gases).

This product has been discontinued. Click here for the replacement model(s).


Testo 552 Offers

Features

  • Highly accurate and reliable measurement results
  • Maintenance-free absolute pressure sensor
  • 2400 hours battery life (100 days continuous operation)
  • Measurement of evaporation temperature H2O
  • Optical alarm when limit values are exceeded
  • Extremely robust and resistant to water and dirt (IP42)

Applications

  • Complying with manufacturer's specifications
  • Documenting measurements
  • Ensuring dehumidification
  • Evacuating refrigeration systems

Testo 552 Specifications

Measuring range vacuum 1,100 to 0 mbar / 825,080 to 0 micron
Accuracy vacuum ±1 digit (at +22 °C, trust level 95%) 0 to 1,33 hPa / 0 to 1,000 micron: up to ±10 micron 0 to 200 hPa / 0 to 150,000 micron: ±0.3% FS = ±0.6 hPa 200 to 1,100 hPa / 150,000 to 825,080 micron: ±0.3% FS = ±3.3 hPa
Resolution vacuum 0.01 hPa / 10 micron
Overload vacuum absolute: 6 bar / 87 psi (relative: 5 bar / 72 psi)
Storage temperature .-20 to +50 °C
Operating temperature .-20 to +50 °C
Dimensions 250 x 165 x 55 mm
Protection class IP42
Sensor Absolute pressure sensor
Parameter mmHg, Torr, mbar, hPa, micron, inH20, inHg, Pa
Measuring rate 0.5 s
Click here for complete specifications on the Testo 0560 5520

What's included with the Testo 552

  • Testo 552 digital vacuum gauge
  • 2 AA batteries
