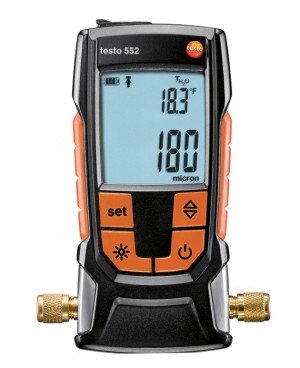

Testo 552 Digital Vacuum Micron Gauge with Bluetooth

Model: 552 | Order No: 0560 5522 01 | UPC: 4029547012693

Testo 552 Digital Vacuum Micron Gauge with Bluetooth-


Downloads: datasheet manual

Testo 552 Digital Vacuum Micron Gauge with Bluetooth

Model: 552 | Order No: 0560 5522 01

Know real time calculations and accurate deep vacuum measurements at single digit resolutions. Comes with a maintenance-free absolute pressure sensor making it ideal for evacuating refrigerant systems or heat pumps. Uses Bluetooth to link to your smart phone or device utilizing the free Testo SMART Probes App, which is a powerful and easy-to-use tool to remotely read measurements.

Know real time calculations and accurate deep vacuum measurements at single digit resolutions. Comes with a maintenance-free absolute pressure sensor making it ideal for evacuating refrigerant systems or heat pumps. Uses Bluetooth to link to your smart phone or device utilizing the free Testo SMART Probes App, which is a powerful and easy-to-use tool to remotely read measurements.

Sale Price $182.75 USD
Regular Price $215.00 USD
Availability 12 in Stock
Quantity

Recommended Accessories


Testo 552 Offers

This high-precision digital vacuum gauge that has all the measuring functions you need for evacuating refrigerant systems and heat pumps. The rugged meter is built to last and tough enough to take the odd knock.

It can determine the proper micron/temperature level at which moisture is removed from the system with real time calculations determining the saturation temperature of water. These internal calculations are also used to inform you if and when the pressure is low enough to meet your evacuation target, thus saving you time and providing assurance that the system is now free from moisture and contaminants.

It is also the only vacuum gauge on the market with an absolute pressure sensor which is maintenance-free yet still able to provide you with 100% reliable readings.

Features

  • User defined alarm points alert you when target values are reached
  • Precise deep vacuum measurements, measuring down to single digit resolutions use optimized Pirani sensors
  • Displays the saturation temperature of H2O to ensure full and proper evacuation
  • Illuminated, backlit display with visual alarm for evacuation pressure
  • Wireless Bluetooth communication to smart phone or tablet provides powerful analysis and reporting
  • Display data, create reports, and send via email or SMS

Applications

Evacuating is one of the most important steps when installing or restarting refrigerant or a/c systems: foreign gases, moisture and oils have to be removed properly. That's when the absolute pressure of a system needs to be measured.

The meter provides you with highly accurate information on the dehumidification status of the system and measures even the smallest of absolute pressures reliably. This means that you are always able to observe manufacturer specifications. A visual alarm warns immediately when a threshold has been exceeded.

Testo Smart Probes App

This vacuum gauge uses Bluetooth to link to your smart phone or device utilizing the free Testo SMART Probes App, which is a powerful and easy-to-use tool. This App allows you to remotely read measurements of 1 to 6 Testo Smart Probes including the 552, allowing you to easily document and report the results.

Features

  • User defined alarm points alert you when target values are reached
  • Precise deep vacuum measurements, measuring down to single digit resolutions use optimized Pirani sensors
  • Displays the saturation temperature of H2O to ensure full and proper evacuation
  • Illuminated, backlit display with visual alarm for evacuation pressure
  • Wireless Bluetooth communication to smart phone or tablet provides powerful analysis and reporting
  • Display data, create reports, and send via email or SMS

Applications

Evacuating is one of the most important steps when installing or restarting refrigerant or a/c systems: foreign gases, moisture and oils have to be removed properly. That's when the absolute pressure of a system needs to be measured.

The meter provides you with highly accurate information on the dehumidification status of the system and measures even the smallest of absolute pressures reliably. This means that you are always able to observe manufacturer specifications. A visual alarm warns immediately when a threshold has been exceeded.


Complying with manufacturer's specifications

Some manufacturers specify exactly what the absolute pressure must be for you to evacuate your air conditioning systems and how long this pressure must be maintained. Compliance with these specifications is simple and easy thanks to the flexible setting of the alarm threshold in the testo 552.

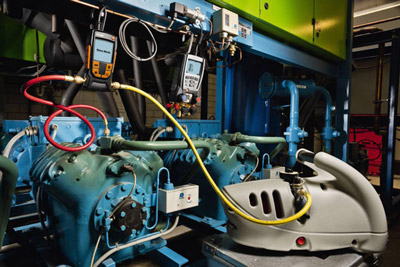

Connect to the testo 570 Digital Manifold

When you connect the testo 552 Digital Vacuum Gauge to the testo 570 Digital Manifold, you can save the testo 552's readings directly on a laptop via the optional EasyKool software. This allows data-logging and/or on-site printing.


Complying with manufacturer's specifications

Some manufacturers specify the desired micron lower limit that must be achieved to evacuate their air conditioning systems and how long this pressure must be maintained. Compliance with these specifications is simple and easy thanks to the flexible setting of the alarm threshold in the testo 552.

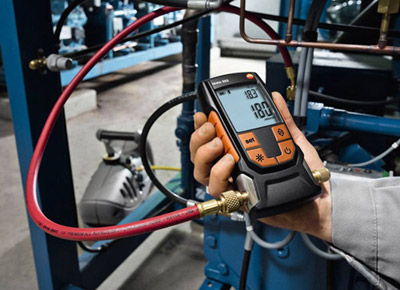

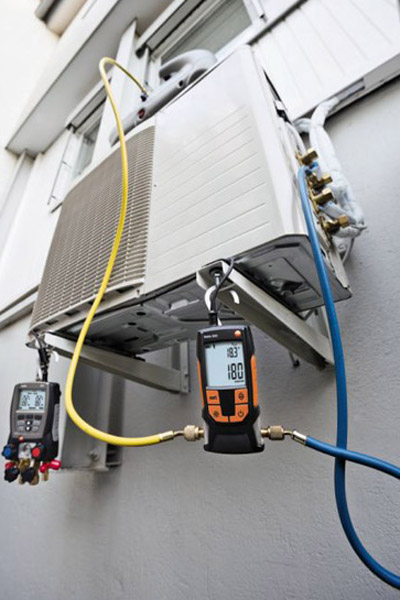

Evacuating AC/R systems

The testo 552 Digital Vacuum Gauge is for the evacuation of heat pumps, air conditioning, and refrigeration systems. The innovative testo 552 utilizes a sensor that, unlike the competition, requires no cleaning and is not affected by contamination. Never worry about a dirty sensor causing false readings. Trust your testo 552 to always be accurate.

Testo 552 Specifications

Vacuum
Measuring Range 0 to 0.40 psi
0 to 26.66 mbar
0 to 20000 micron
Accuracy ±(10 micron + 10% of mv) (100 to 1000 micron)
Resolution 1 micron (0 to 1000 micron)
10 micron (1000 to 2000 micron)
100 micron (2000 to 5000 micron)
500 micron (5000 to 10000 micron)
5000 micron (10000 to 20000 micron)
Overload Vacuum Absolute: 87 psi (6 bar)
Relative: 72 psi (5 bar)
General Specifications
Operating Temperature 14 to 122.0°F (-10 to 50 °C)
Storage Temperature -4.0 to 122.0°F (-20 to 50 °C)
Connections 2 x 7/16" UNF
Parameter mbar; micron; mmHg; Torr; inHg; inH20; hPa; Pa
Measuring Rate 0.5 seconds
Power Source 2 x AA Batteries
Battery Life 50 hrs
Dimensions 10 x 6 x 2" (250 x 165 x 55 mm)
Weight 18 oz (500 g)
Click here for complete specifications on the Testo 552

What's included with the Testo 552

  • Digital Vacuum Micron Gauge
  • 2 Year Warranty
  • 2 x AA Batteries
  • Manual

Testo Smart Probes App

Requires Android 4.3 or newer, plus mobiles end device with Bluetooth 4.0. Click here to download the App from the Google Play store.

Smart Probes App Features

  • Control and monitor the Smart Probes via Smartphone/Tablet wireless
  • Monitor trends via APP and record and send them as an excel sheet (.csv)
  • Create and send .pdf-reports, including pictures of the measurement location
  • Use up to six smart probes at the same time
  • Wireless range of approximately 15m (depends on mobile device used)

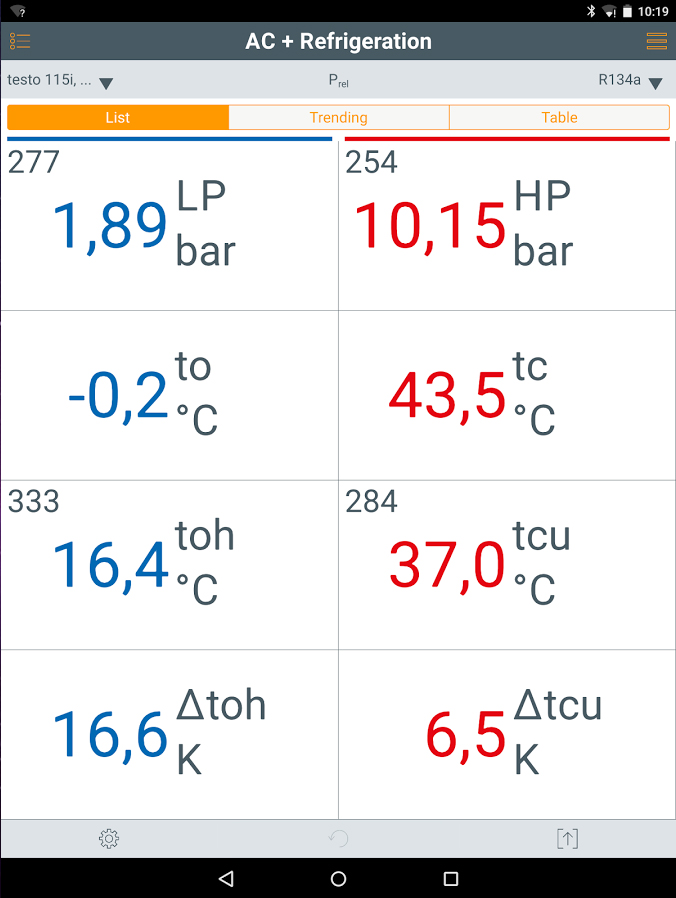

Testo Smart App AC Refrigeration Measurement

Control and monitor the Smart Probes via Smartphone or Tablet

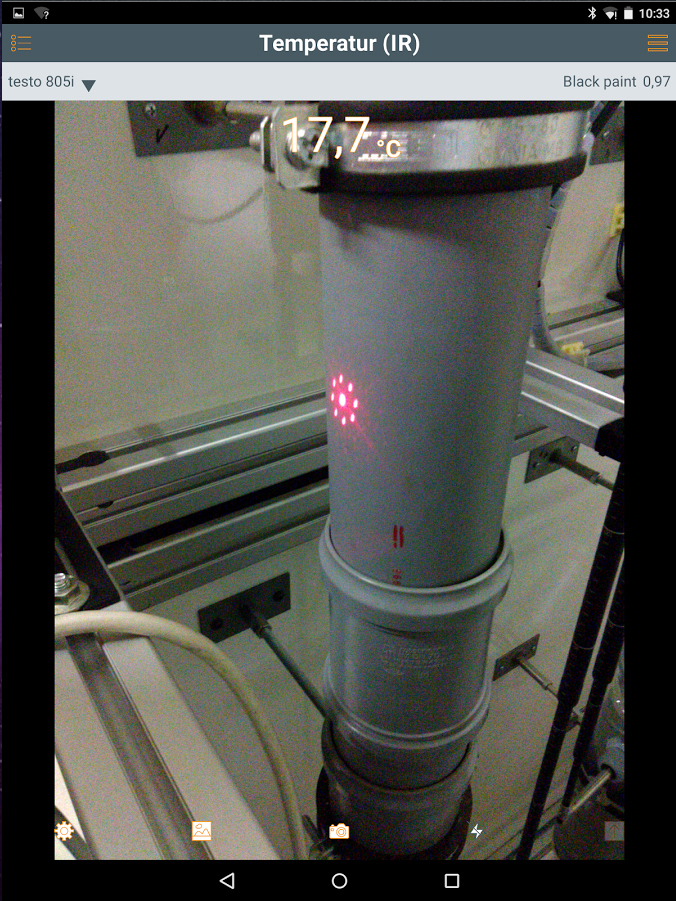

Testo Smart App AC Refrigeration Measurement

Take pictures of the areas you are measuring for reports.

Testo Smart Probes: Overview


This video will serve as an overview of the main features of these Testo smart probes. Additionally, users can communicate with the instruments with their smartphone.

Testo 552 Digital Vacuum Micron Gauge: Overview


Click on a category to view a selection of compatible accessories with the Testo 552 Digital Vacuum Micron Gauge with Bluetooth.

Testo 0554 5520 Connection Cable for the 552 to the 570, 3ft 0554 5520
This miniDIN connection cable is designed to connect a Testo 552 Digital Vacuum Gauge to a Testo 570 Digital Manifold to provide a greater resolution vacuum readout. The cable will allow the 570 to print and store measurements from the 552.




Customer Reviews for the Testo 552

Ask a question about Testo 552 Digital Vacuum Micron Gauge with Bluetooth

Testo 552 Offers

This high-precision digital vacuum gauge that has all the measuring functions you need for evacuating refrigerant systems and heat pumps. The rugged meter is built to last and tough enough to take the odd knock.

It can determine the proper micron/temperature level at which moisture is removed from the system with real time calculations determining the saturation temperature of water. These internal calculations are also used to inform you if and when the pressure is low enough to meet your evacuation target, thus saving you time and providing assurance that the system is now free from moisture and contaminants.

It is also the only vacuum gauge on the market with an absolute pressure sensor which is maintenance-free yet still able to provide you with 100% reliable readings.

Features

  • User defined alarm points alert you when target values are reached
  • Precise deep vacuum measurements, measuring down to single digit resolutions use optimized Pirani sensors
  • Displays the saturation temperature of H2O to ensure full and proper evacuation
  • Illuminated, backlit display with visual alarm for evacuation pressure
  • Wireless Bluetooth communication to smart phone or tablet provides powerful analysis and reporting
  • Display data, create reports, and send via email or SMS

Applications

Evacuating is one of the most important steps when installing or restarting refrigerant or a/c systems: foreign gases, moisture and oils have to be removed properly. That's when the absolute pressure of a system needs to be measured.

The meter provides you with highly accurate information on the dehumidification status of the system and measures even the smallest of absolute pressures reliably. This means that you are always able to observe manufacturer specifications. A visual alarm warns immediately when a threshold has been exceeded.

Testo Smart Probes App

This vacuum gauge uses Bluetooth to link to your smart phone or device utilizing the free Testo SMART Probes App, which is a powerful and easy-to-use tool. This App allows you to remotely read measurements of 1 to 6 Testo Smart Probes including the 552, allowing you to easily document and report the results.

Features

  • User defined alarm points alert you when target values are reached
  • Precise deep vacuum measurements, measuring down to single digit resolutions use optimized Pirani sensors
  • Displays the saturation temperature of H2O to ensure full and proper evacuation
  • Illuminated, backlit display with visual alarm for evacuation pressure
  • Wireless Bluetooth communication to smart phone or tablet provides powerful analysis and reporting
  • Display data, create reports, and send via email or SMS

Applications

Evacuating is one of the most important steps when installing or restarting refrigerant or a/c systems: foreign gases, moisture and oils have to be removed properly. That's when the absolute pressure of a system needs to be measured.

The meter provides you with highly accurate information on the dehumidification status of the system and measures even the smallest of absolute pressures reliably. This means that you are always able to observe manufacturer specifications. A visual alarm warns immediately when a threshold has been exceeded.


Complying with manufacturer's specifications

Some manufacturers specify exactly what the absolute pressure must be for you to evacuate your air conditioning systems and how long this pressure must be maintained. Compliance with these specifications is simple and easy thanks to the flexible setting of the alarm threshold in the testo 552.


Connect to the testo 570 Digital Manifold

When you connect the testo 552 Digital Vacuum Gauge to the testo 570 Digital Manifold, you can save the testo 552's readings directly on a laptop via the optional EasyKool software. This allows data-logging and/or on-site printing.


Complying with manufacturer's specifications

Some manufacturers specify the desired micron lower limit that must be achieved to evacuate their air conditioning systems and how long this pressure must be maintained. Compliance with these specifications is simple and easy thanks to the flexible setting of the alarm threshold in the testo 552.


Evacuating AC/R systems

The testo 552 Digital Vacuum Gauge is for the evacuation of heat pumps, air conditioning, and refrigeration systems. The innovative testo 552 utilizes a sensor that, unlike the competition, requires no cleaning and is not affected by contamination. Never worry about a dirty sensor causing false readings. Trust your testo 552 to always be accurate.

Testo 552 Specifications

Vacuum
Measuring Range 0 to 0.40 psi
0 to 26.66 mbar
0 to 20000 micron
Accuracy ±(10 micron + 10% of mv) (100 to 1000 micron)
Resolution 1 micron (0 to 1000 micron)
10 micron (1000 to 2000 micron)
100 micron (2000 to 5000 micron)
500 micron (5000 to 10000 micron)
5000 micron (10000 to 20000 micron)
Overload Vacuum Absolute: 87 psi (6 bar)
Relative: 72 psi (5 bar)
General Specifications
Operating Temperature 14 to 122.0°F (-10 to 50 °C)
Storage Temperature -4.0 to 122.0°F (-20 to 50 °C)
Connections 2 x 7/16" UNF
Parameter mbar; micron; mmHg; Torr; inHg; inH20; hPa; Pa
Measuring Rate 0.5 seconds
Power Source 2 x AA Batteries
Battery Life 50 hrs
Dimensions 10 x 6 x 2" (250 x 165 x 55 mm)
Weight 18 oz (500 g)
Click here for complete specifications on the Testo 552

What's included with the Testo 552

  • Digital Vacuum Micron Gauge
  • 2 Year Warranty
  • 2 x AA Batteries
  • Manual

Testo Smart Probes App

Requires Android 4.3 or newer, plus mobiles end device with Bluetooth 4.0. Click here to download the App from the Google Play store.

Smart Probes App Features

  • Control and monitor the Smart Probes via Smartphone/Tablet wireless
  • Monitor trends via APP and record and send them as an excel sheet (.csv)
  • Create and send .pdf-reports, including pictures of the measurement location
  • Use up to six smart probes at the same time
  • Wireless range of approximately 15m (depends on mobile device used)
Testo Smart App AC Refrigeration Measurement

Control and monitor the Smart Probes via Smartphone or Tablet

Testo Smart App AC Refrigeration Measurement

Take pictures of the areas you are measuring for reports.

Testo Smart Probes: Overview


This video will serve as an overview of the main features of these Testo smart probes. Additionally, users can communicate with the instruments with their smartphone.

Testo 552 Digital Vacuum Micron Gauge: Overview


Click on a category to view a selection of compatible accessories with the Testo 552 Digital Vacuum Micron Gauge with Bluetooth.

Testo 0554 5520 Connection Cable for the 552 to the 570, 3ft 0554 5520
This miniDIN connection cable is designed to connect a Testo 552 Digital Vacuum Gauge to a Testo 570 Digital Manifold to provide a greater resolution vacuum readout. The cable will allow the 570 to print and store measurements from the 552.
