Testo 0563 0007 Smart Probes HVAC/R Complete Kit

Model: 0563 0007

Testo 0563 0007 Smart Probes HVAC/R Complete Kit-


Downloads: datasheet

Testo 0563 0007 Smart Probes HVAC/R Complete Kit

Model: 0563 0007

This kit is the ultimate solution for air conditioning, refrigeration, and heating contractors, that enables the measurement of temperature, humidity, flow, and pressure.

This kit is the ultimate solution for air conditioning, refrigeration, and heating contractors, that enables the measurement of temperature, humidity, flow, and pressure.

Sale Price $849.15 USD
Regular Price $999.00 USD
Availability 8 in Stock
Quantity

Testo 0563 0007 Offers

The ultimate kit for air conditioning, refrigeration, and heating contractors, enabling the measurement of temperature, humidity, flow, and pressure. All the measuring instruments can be quickly and easily commissioned and attached directly at the pressure connection or the temperature measuring point. In conjunction with a smartphone or tablet, the refrigeration kit is ideally suited to servicing and troubleshooting on air conditioning, refrigeration, and heating systems, as well as their installation. They also make it considerably easier to work on measuring points that are a long distance apart, thanks to wireless connection to a smartphone or tablet and a range of up to 350'.

The measuring values of both instruments are transmitted via Bluetooth® connection to the App installed on the smartphone/tablet enabling convenient and flexible readout. In the App, measurement parameters can be deleted, added or their order altered with just one click, and it is also possible to change the displayed measurement parameters just as quickly. All measurement data are presented either as a diagram or a table, and the measurement data report can be e-mailed directly as a pdf or Excel file.

Features

  • Carry out all measurements in the areas of heating, air conditioning, refrigeration and ventilation with one kit
  • Measurement data is transmitted to the convenient and powerful testo Smart Probes App in your smart device
  • The individual Smart Probes can be combined with one another for a variety of applications

Applications

  • HVAC/R

Download the App

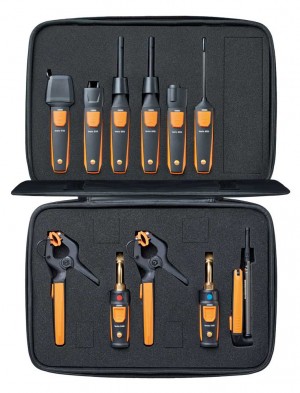

What's included with the Testo 0563 0007

  • 2 x 549i Refrigeration Smart Pressure Probes
  • 2 x 115i Smart Probe Pipe-Clamp Thermometers
  • 2 x 605i Smart Probe Thermo-Hygrometers
  • 405i Hot-wire Anemometer Smart and Wireless Probe
  • 410i Vane Anemometer Smart and Wireless Probe
  • 510i Differential Pressure Manometer Smart and Wireless Probe
  • 805i Infrared Thermometer Smart and Wireless Probe
  • 905i Thermometer Smart and Wireless Probe
  • Calibration Protocol
  • HVAC/R Soft Carrying Case
  • Batteries

This Testo 0563 0007 Smart Probes HVAC/R Complete Kit Includes


Testo 549i Refrigeration Smart Pressure Probe

Tough, accurate, and easy-to-use pressure probe that features a 45° angled probe connection, along with a Bluetooth range of up to 350'. Measures high-side or low-side refrigerant pressure in AC/refrigeration systems with no hoses required.


Testo 115i Smart Probe Pipe-Clamp Thermometer

Quickly identifies temperature changes by monitoring real-time trending and data logging, this tough, accurate, and easy-to-use thermometer also features a Bluetooth range of up to 350'. Accurately measures the temperature of pipes in heating and cooling systems with NTC temperature sensor technology.


Testo 605i Smart Probe Thermo-Hygrometer

Features a foldable to 90°, small diameter probe that is ideal for in-duct measurements, along with a Bluetooth range of up to 350'. Quickly and accurately measure relative humidity and temperature in rooms, ducts, and chambers, as well as automatically calculate the dew point and wet bulb temperature.


Testo 405i Hot-wire Anemometer Smart and Wireless Probe

Wireless smart probe hot-wire anemometer that measures air velocity, volume flow and temperature. It also measures in-duct air flow and automatically calculates volume flow when you simply enter in duct dimensions. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 410i Vane Anemometer Smart and Wireless Probe

Wireless anemometer that measures air velocity, volume flow, and temperature. No air density correction is needed due to the design. It measures air flow at registers and automatically calculates volume flow by simply entering in duct dimensions. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 510i Differential Pressure Manometer Smart and Wireless Probe

This differential pressure manometer measures static pressure, air flow, and volume flow if you attach a Pitot tube. It measures manifold pressure and pressure drop across filters and coils. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 805i Infrared Thermometer Smart and Wireless Probe

Measures non-contact temperature with an optic target ratio of 10:1. Photograph objects with smart device, capturing measurement marker and temperature values for reference and reporting. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 905i Thermometer Smart and Wireless Probe

Quickly and accurately measures air temperature in rooms, ducts, registers, and outlets. Its fast acting temperature probe quickly tracks changes and shows trends on a graphic display. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 0516 0260 VAC Smart Case for Storage and Transport

Store and transport the Testo 405i, 410i, 510i, 605i, 805i and 905i.

Customer Reviews for the Testo 0563 0007

Ask a question about Testo 0563 0007 Smart Probes HVAC/R Complete Kit

Testo 0563 0007 Offers

The ultimate kit for air conditioning, refrigeration, and heating contractors, enabling the measurement of temperature, humidity, flow, and pressure. All the measuring instruments can be quickly and easily commissioned and attached directly at the pressure connection or the temperature measuring point. In conjunction with a smartphone or tablet, the refrigeration kit is ideally suited to servicing and troubleshooting on air conditioning, refrigeration, and heating systems, as well as their installation. They also make it considerably easier to work on measuring points that are a long distance apart, thanks to wireless connection to a smartphone or tablet and a range of up to 350'.

The measuring values of both instruments are transmitted via Bluetooth® connection to the App installed on the smartphone/tablet enabling convenient and flexible readout. In the App, measurement parameters can be deleted, added or their order altered with just one click, and it is also possible to change the displayed measurement parameters just as quickly. All measurement data are presented either as a diagram or a table, and the measurement data report can be e-mailed directly as a pdf or Excel file.

Features

  • Carry out all measurements in the areas of heating, air conditioning, refrigeration and ventilation with one kit
  • Measurement data is transmitted to the convenient and powerful testo Smart Probes App in your smart device
  • The individual Smart Probes can be combined with one another for a variety of applications

Applications

  • HVAC/R

Download the App

What's included with the Testo 0563 0007

  • 2 x 549i Refrigeration Smart Pressure Probes
  • 2 x 115i Smart Probe Pipe-Clamp Thermometers
  • 2 x 605i Smart Probe Thermo-Hygrometers
  • 405i Hot-wire Anemometer Smart and Wireless Probe
  • 410i Vane Anemometer Smart and Wireless Probe
  • 510i Differential Pressure Manometer Smart and Wireless Probe
  • 805i Infrared Thermometer Smart and Wireless Probe
  • 905i Thermometer Smart and Wireless Probe
  • Calibration Protocol
  • HVAC/R Soft Carrying Case
  • Batteries

This Testo 0563 0007 Smart Probes HVAC/R Complete Kit Includes


Testo 549i Refrigeration Smart Pressure Probe

Tough, accurate, and easy-to-use pressure probe that features a 45° angled probe connection, along with a Bluetooth range of up to 350'. Measures high-side or low-side refrigerant pressure in AC/refrigeration systems with no hoses required.


Testo 115i Smart Probe Pipe-Clamp Thermometer

Quickly identifies temperature changes by monitoring real-time trending and data logging, this tough, accurate, and easy-to-use thermometer also features a Bluetooth range of up to 350'. Accurately measures the temperature of pipes in heating and cooling systems with NTC temperature sensor technology.


Testo 605i Smart Probe Thermo-Hygrometer

Features a foldable to 90°, small diameter probe that is ideal for in-duct measurements, along with a Bluetooth range of up to 350'. Quickly and accurately measure relative humidity and temperature in rooms, ducts, and chambers, as well as automatically calculate the dew point and wet bulb temperature.


Testo 405i Hot-wire Anemometer Smart and Wireless Probe

Wireless smart probe hot-wire anemometer that measures air velocity, volume flow and temperature. It also measures in-duct air flow and automatically calculates volume flow when you simply enter in duct dimensions. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 410i Vane Anemometer Smart and Wireless Probe

Wireless anemometer that measures air velocity, volume flow, and temperature. No air density correction is needed due to the design. It measures air flow at registers and automatically calculates volume flow by simply entering in duct dimensions. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 510i Differential Pressure Manometer Smart and Wireless Probe

This differential pressure manometer measures static pressure, air flow, and volume flow if you attach a Pitot tube. It measures manifold pressure and pressure drop across filters and coils. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 805i Infrared Thermometer Smart and Wireless Probe

Measures non-contact temperature with an optic target ratio of 10:1. Photograph objects with smart device, capturing measurement marker and temperature values for reference and reporting. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 905i Thermometer Smart and Wireless Probe

Quickly and accurately measures air temperature in rooms, ducts, registers, and outlets. Its fast acting temperature probe quickly tracks changes and shows trends on a graphic display. The smart app allows you to remotely read and document measurements from up to 6 smart probes.


Testo 0516 0260 VAC Smart Case for Storage and Transport

Store and transport the Testo 405i, 410i, 510i, 605i, 805i and 905i.
