Testo 0563 0003 VAC Wireless Smart Probe Kit

Model: 0563 0003 | UPC: 4029547014352

Testo 0563 0003 VAC Wireless Smart Probe Kit-


Downloads: datasheet

Testo 0563 0003 VAC Wireless Smart Probe Kit

Model: 0563 0003

Kit includes thermal anemometer, vane anemometer, thermo-hygrometer and infrared thermometer. Measures air velocity, temperature, relative humidity, wet bulb/dew point, and calculates volume flow. Measurement data is transmitted via Bluetooth to the Smart Probes App on your smart device and can be displayed as instrument readings, tables, or graphs.

Kit includes thermal anemometer, vane anemometer, thermo-hygrometer and infrared thermometer. Measures air velocity, temperature, relative humidity, wet bulb/dew point, and calculates volume flow. Measurement data is transmitted via Bluetooth to the Smart Probes App on your smart device and can be displayed as instrument readings, tables, or graphs.

This product has been discontinued. Click here for the replacement model(s).


Testo 0563 0003 Offers

The testo VAC Smart Probe Set provides a combination of four instruments needed to test and balance a multioutlet ventilation system. Two types of anememoters give you the capacity to measure in-duct air flow and the flow from each vent. Using an IR temperature probe for surface temperatures will show you motor and electrical equipment conditions and an easy check of each outlet. The thermohygrometer will provide an assessment of the humidity and dewpoint concerns throughout the system. Users can remotely read the measurements from multiple probes by using the testo Smart Probes App. The kit comes with a handy case at a great value.

The testo Smart Probes App is a powerful and easy-to-use tool. It allows you to remotely read measurements from up to six (6) Smart Probes and easily document/report the results. Automatic calculations make it a snap! All measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files. The App creates custom reports which can be saved and/or shared by email. All your data can be stored and retrieved saving you hours of time consuming paperwork!

Features

  • Measures air velocity, temperature, relative humidity, wet bulb / dew point, and calculate volume flow
  • Kit includes instruments to measure, balance, troubleshoot, and optimize ventilation systems performance
  • RH & air flow measurements in-duct and at registers viewed simultaneously in the testo Smart Probes App (605i, 405i, 410i)
  • App calculates system enthalpy with air flow & RH probes
  • Photograph objects with smart device, capturing measurement marker and temperature values for reference and reporting (805i)
  • Measurement data is transmitted to the convenient and powerful testo Smart Probes App in your smart device
  • Tough, accurate, and easy-to-use

Applications

Ideal for the following applications: HVAC/R Technicians and Contractors

Download the App

Testo 0563 0003 Specifications

Hot Wire Measuring Range 0 to 6,000 fpm
Vane Measuring Range 0 to 6,000 fpm
Humidity-Capacitance Measuring Range 0 to 100 %RH
Infrared Measuring Range -22 to 482°F
Compatibility requires iOS 8.3 (or later) / Android 4.3 (or later) and requires mobile device with Bluetooth 4.0
Storage Temperature -4 to 140°F
Operating Temperature -4 to 122°F
Click here for complete specifications on the Testo 0563 0003

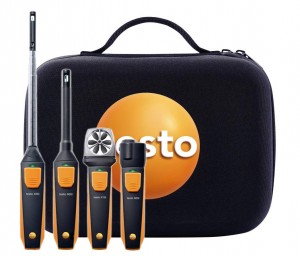

What's included with the Testo 0563 0003

  • 405i Thermal Anemometer
  • 410i Vane Anemometer
  • 605i Thermo-hygrometer
  • 805i Infrared Thermometer
  • Smart Case
  • AAA Batteries
  • Certificate of Calibration

Testo Smart Probes: Overview


This video will serve as an overview of the main features of these Testo smart probes. Additionally, users can communicate with the instruments with their smartphone.
