Carry out pressure difference measurements at A/C system filters or air flow measurements in ventilation ducts using a pitot static tube. Field tested and ideal for installation and maintenance work in and around ventilation and air conditioning.
Carry out pressure difference measurements at A/C system filters or air flow measurements in ventilation ducts using a pitot static tube. Field tested and ideal for installation and maintenance work in and around ventilation and air conditioning.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

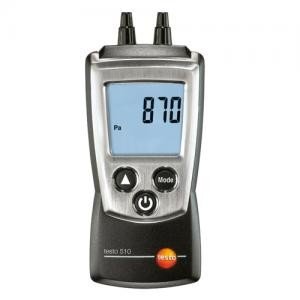

The Testo 510 differential pressure meter ensures that you as an air conditioning technician are best equipped to measure pressure differences from 0 to 1.45 psi. Choose from ten units of measurement: psi, fpm, inH2O, inHg, hPa, Pa, mbar, mmH2O, mmHg, m/s
Testo 510 Features
| Technical Data | |||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Storage temperature | -40 to +70 °C |
| Operating temperature | 32 to +122 °F |
| Battery type | 2 AAA batteries |
| Battery life | 50 hr |
| Dimensions | 4.5 x 1.7 x 1 in |
Differential pressure |
|
|---|---|
| Measuring range | 0 to 40.15 inH2O |
| Accuracy | ±0.01 inH2O (0 to 0.12 inH2O) ±0.02 inH2O (0.12 to 0.4 inH2O) ±(0.04 inH2O + 1.5 %of rdg.) (0.41 to 40 inH2O) |
| Resolution | 0.01 inH2O |
| Overload | 500 mbar |
Click on a category to view a selection of compatible accessories with the Testo 510 Differential Manometer.
| Technical Data | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Storage temperature | -40 to +70 °C |
| Operating temperature | 32 to +122 °F |
| Battery type | 2 AAA batteries |
| Battery life | 50 hr |
| Dimensions | 4.5 x 1.7 x 1 in |
Differential pressure |
|
|---|---|
| Measuring range | 0 to 40.15 inH2O |
| Accuracy | ±0.01 inH2O (0 to 0.12 inH2O) ±0.02 inH2O (0.12 to 0.4 inH2O) ±(0.04 inH2O + 1.5 %of rdg.) (0.41 to 40 inH2O) |
| Resolution | 0.01 inH2O |
| Overload | 500 mbar |
Click on a category to view a selection of compatible accessories with the Testo 510 Differential Manometer.
