Testo 510 Differential Manometer Kit

Model: 510 | Order No: 0563 0510 01 | UPC: 4029547013744

Testo 510 Differential Manometer Kit-


Downloads: datasheet manual

Testo 510 Differential Manometer Kit

Model: 510 | Order No: 0563 0510 01

Carry out pressure difference measurements at A/C system filters or air flow measurements in ventilation ducts using a pitot static tube. Field tested and ideal for installation and maintenance work in and around ventilation and air conditioning.

Carry out pressure difference measurements at A/C system filters or air flow measurements in ventilation ducts using a pitot static tube. Field tested and ideal for installation and maintenance work in and around ventilation and air conditioning.

Sale Price $144.50 USD
Regular Price $170.00 USD
Availability 50 in Stock
Quantity

Add In-House Traceable Calibration to your 0563.0510

Add In-House Traceable Calibration to your 0563.0510


Testo 510 Offers

The Testo 510 digital manomenter is an all in one, low pressure measurement solution. The 510 can measure total external static pressure, differential pressure, duct velocities, manifold pressures, and air flow with pitot tube (optional).

Features

  • 0 to 40" H2O pressure measurement range
  • Temperature compensated pressure sensor
  • Magnetic backing for hands free use
  • Air flow measurement with optional pitot tube
  • User adjustable air density compensation
  • Protective cap for safe storage

Zeroing the Measuring Instrument

The measurement values can be falsified by a change in the position of the measuring instrument. After zeroing, the position of the measuring instrument must not be changed. Carry out zeroing before every measurement in order to compensate faulty positioning or long-term zero-point drift. Zeroing is only possible in a range of 0 to 25% of the measuring range.

The instrument can only be zeroed in the range up to 10hPa.

Testo 510 Specifications

Measuring Range 0 to 40 InH₂O / 0 to 100 hPa
Accuracy ±0.01 InH₂O (0 to 0.12 InH₂O) / ±0.03 hPa (0 to 0.30 hPa), ±0.02 InH₂O (0.12 to 0.40 InH₂O) / ±0.05 hPa (0.31 to 1.00 hPa), ±(0.0 InH₂O + 1.5 % of mv) (0.40 to 40 InH₂O) / ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)
Dimensions 5 x 2 x 1 in. / 119 x 46 x 25 mm
Operating temperature 32.0° to 122.0 °F / 0 to +50 °C
Protection class IP40
Warranty 2 years
Seceltable units hPa, mbar, Pa, mmH2O, inH₂O, inHg, mmHg, psi, m/s, fpm
Maximal static pressure 7.3 psi / 500 mbar
Measuring rate 0.5 sec
Battery type 2 AAA batteries
Battery life 50 h (average, without display illumination)
Storage temperature -40.0° to 158.0 °F / -40 to +70 °C
Weight 3 oz. (with batteries and protective cap) / 90 g (with batteries and protective cap)
Click here for complete specifications on the Testo 510

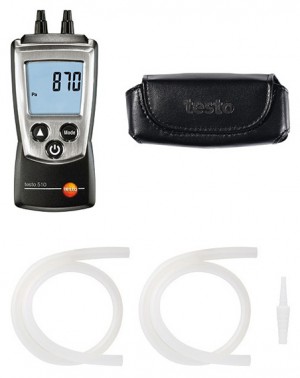

What's Included with the Testo 510

  • Testo 510 Differential Manometer Kit
  • Belt Pouch
  • 2 Hoses
  • Wrist Strap
  • Certificate of Conformity
  • Manual

Click on a category to view a selection of compatible accessories with the Testo 510 Differential Manometer Kit.

Testo 0635 2045 Stainless Steel Pitot Tube, 19.5" Long 0635 2045
500 mm long, for measuring flow velocity.




Testo 0554 0448 Silicone Pressure Meter Connection Hose 0554 0448
2 Meters of Silicone Hose, for use with the 312 Auto-ranging Digital Manometer. Max working pressure is 700hPa/mbar.
