Testo 922 Differential Temperature HVAC/R Set, 2-Channel, Type K

Model: 922 | Order No: 0563 9222

Testo 922 Differential Temperature HVAC/R Set, 2-Channel, Type K-


Downloads: datasheet manual

Testo 922 Differential Temperature HVAC/R Set, 2-Channel, Type K

Model: 922 | Order No: 0563 9222

Featuring two connectable thermocouple probes, this measuring instrument can record and simultaneously display both temperature values, as well as calculate the differential temperature in seconds. With radio transfer capability, an additional probe can be added wirelessly.

Featuring two connectable thermocouple probes, this measuring instrument can record and simultaneously display both temperature values, as well as calculate the differential temperature in seconds. With radio transfer capability, an additional probe can be added wirelessly.

Sale Price $292.40 USD
Regular Price $344.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration add to your 0563 9222

Add In-House Traceable Calibration add to your 0563 9222


Recommended Accessories


Testo 922 Offers

Features

  • 2-channel temperature measuring instrument with an optional wireless probe
  • Continuous display of minimum and maximum values
  • Hold-button for freezing measurement values
  • Cyclic printing of measurement values, e.g. once per minute
  • Temperature measurement and direct display of differential temperature
  • Surface temperature probes come with Velcro to enable easy attachment of the probe to pipes
  • The measuring instrument and the two surface temperature probes can be safely stored in the handy bag
  • TopSafe, the indestructible protective cover, protects from dirt and impact

Applications

  • Heating
  • Sanitation
  • Refrigeration
  • Air Conditioning

Testo 922 Specifications

Temperature - TC Type K (NiCr-Ni)
Measuring Range -58 to 1832°F (-50 to 1000°C)
Accuracy ±(0.9°F + 0.3 % of mv) (-40.0 to 1652.0°F)
±(1.3°F + 0.5 % of mv) (Remaining Range)
±(0.5°C + 0.3 % of mv) (-40 to 900°C)
±(0.7°C + 0.5 % of mv) (Remaining Range)
Resolution 0.1°F (-58 to 391.8°F) / 0.1°C (-50 to 199°C)
1°F (Remaining range) / 1°C (Remaining range)
General Specifications
Operating Temperature -4 to 122°F (-20 to 50°C)
Storage Temperature -40 to 158°F (-40 to 70°C)
Housing Material ABS
Battery Type 9V Block Battery, 6F22
Battery Life Connected Probe, Backlight Off: 200 h
Radio Mode, Backlight Off: 45 h
Connected Probe, Backlight Always On: 68 h
Radio Mode, Backlight Always On: 33 h
Dimensions 7.16 x 2.52 x 1.57" (182 x 64 x 40 mm)
Weight 6 oz (171 g)
Click here for complete specifications on the Testo 922

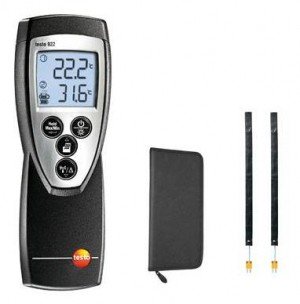

What's included with the Testo 922

  • Differential TemperatureHVAC/R
  • Calibration Protocol
  • 2 x Temperature Probes with Velcro
  • Carrying Case
  • Batteries

Click on a category to view a selection of compatible accessories with the Testo 922 Differential Temperature HVAC/R Set, 2-Channel, Type K.
