Testo 883-2 Thermal Imaging Kit, 27Hz, 42° and 12° lenses

Model: 883-2 | Order No: 0563 8836 | UPC: 4029547026331

Downloads: datasheet

Testo 883-2 Thermal Imaging Kit, 27Hz, 42° and 12° lenses

Model: 883-2 | Order No: 0563 8836

Designed for building energy consultants: The Testo 883-2 Thermal Imager is the reliable partner when carrying out the search for thermal anomalies. Thanks to the best thermal image quality, free analysis and reporting software, and wide-angle lens, you can recommend specific optimization measures and save time in the process.

Your Price	$7499.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Recommended Accessories

Testo 883 Thermal Imager, 320 x 240, <40 mK

0560 8830

Testo 0554 8831 Rechargeable Battery for the 865s/868s/871s/872s

0554 8831

Testo 770-3 True RMS AC/DC Clamp Meter with Bluetooth^®, 1000 V, 600 A

770-3

Testo 0554 8801 2 Bay Thermal Imager Battery Charger

0554 8801

Testo 0554 8805 Protective Lens Glass

0554 8805

Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m)

0554 0051

Testo 883-2 Offers

Applications

Preventive maintenance

Detecting structural defects and ensuring construction quality

Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
Test air-tightness of windows and doors
Locate insulation errors and cold bridges in a building shell
Detect and visualize mould-risk areas

Professional energy consultation

Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
Easy recording and documentation of energy loss from buildings
Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
Localize untight spots in new buildings quickly and easily in combination with Blower Door

Preventing mould formation

Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode

Easy checking of heating systems and installations

Test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
Localization of the course of heating loops in underfloor heating systems
Testo radiators for silting
Measure flow and return temperatures

Localize pipe returns

Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
Precise localization of leakages in underfloor heating and other inaccessible pipe systems

Locating leaks in flat roofs

Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation

More reliability in quality assurance and production monitoring

A Testo thermal imager supports in process control and product quality asurance
Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
Fast and easy monitoring of filling level in closed liquid tanks

Testo 883-2 Specifications

Standards
EU-/EG-guidelines	RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006
General Technical Data
Product Color	Black
Display Ligthing	Bright / Normal / Dark
Display Type	Capacitive Touch Display
Infrared Image Output
Field of View	42° x 32° (wideangle lens), 12° x 9° (telephoto lens, optional)
Focus	Manual
Minimum Focus Distance	0.1 m (wideangle lens); 0.5 (telephoto lens)
Geometric Resolution (IFOV)	2.3 mrad (wideangle lens), 0.7 mrad (telephoto lens)
Image Refresh Rate	27 Hz
Infrared Resolution	320 x 240 pixel
SuperResolution (IFOV)	1.4 mrad (wideangle lens), 0.4 mrad (Telephoto lens)
SuperResolution (Pixel)	640 x 480 pixels
Thermal Sensitivity	˂ 40 mK
Spectral Range	7.5 to 14 µm
Image Output Visual
Minimum Focus Distance	< 0.4' (< 0.4 m)
Image Size	5 MP
Image Presentation
Color Palettes	Iron, Rainbow, Rainbow HC, Cold-hot, Blue-red, Grey, Inverted grey, Sepia, Testo, Iron HAT, Humidity palette
Digital Zoom	2x; 4x
Display Option	IR image / real image
Display Type	8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
Measurement
Accuracy	±2°C, ±2% of m.v.; (greater value applies)
Emissivity	0.01 to 1
Measuring Range	-30 to 650°C
Reflected Temperature	Manual
Testo ε-Assist	Included
Measuring Function
Analysis Function	Up to 5 selectable individual measuring points, hot/cold spot detection, Delta T, area measurement (minimum/maximum on area), alarms, isotherm
Solar Mode	Input of solar radiation value
Electrical Mode - Manual	Input of current, voltage or power
Humidity Mode - Manual	Included
Humidity Measurement with Humidity Measuring Instrument	Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)
IFOV Warner	Included
Testo ScaleAssist	Included
Electrical Measurement with Clamp Meter	Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (sold seperately)
Imager Equipment
Voice Recording	Included
Video Streaming	Via wireless LAN with testo Thermography App; via USB
Standard Lens	42° x 32°
SiteRecognition	Included
Laser	Laser marker
JPEG Storage	Included
Full Screen Mode	Included
Digital Camera	Included
Interface	USB 2.0; USB-C
WLAN Connectivity	Communication with the testo Thermography App/ wireless module BT/WLAN*
Bluetooth	Headset for voice annotations, transfer of readings from testo 605i thermohygrometer, testo 770-3 clamp meter (optional)**
Imager Storage
File Format Image	.bmt; .jpg; software export option in .bmp; .jpg; .png; .csv; .xls
Storage Device	Internal Memory (2.8 GB)
Power Supply
Battery Type	Fast-charging, Li-ion battery can be changed on-site
Charging Options	In instrument / USB charger
Power Supply	Yes
Operating Time	≥ 5 hour
Ambient Condition
Air Humidity	20 to 80%RH non-condensing
Housing Protection Class	IP54
Vibration	2G
Storage Temperature	-22 to 140°F (-30 to 60°C)
Operating Temperature	5 to 122°F (-15 to 50°C)
Physical Specification
Housing	PC - ABS
Tripod Mounting	1/4" - 20UNC; carrying strap
Weight	29.1 oz. (824 g)
Dimensions	7 x 4 x 9" (171 x 95 x 236 mm)
PC Software
System Requirements	Windows® 11 ; Windows® 10; Windows 8; Windows 7
General Technical Data (Spare Rechargeable Battery)
Weight	4.2 oz. (119 g)
Dimensions	1 x 1 x 6" (20 x 24 x 140 mm)
Product Color	Black
General Technical Data (Desktop Charger)
Weight	13.58 oz. (385 g)
Dimensions	3 x 4 x 3" (80 x 90 x 75 mm)
Cable Length	3.281' (1 m)
Product Color	Black/Orange

Click here for complete specifications on the Testo 883-2

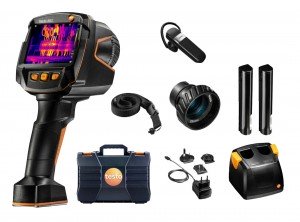

What's included with the Testo 883-2

Thermal Imager
Calibration Protocol
Wide-angle lens (42° x 30°)
Telephoto lens (12° x 9°)
USB-C cable
Bluetooth® headset
Carrying Strap
Carrying Case
USB power supply
Li-ion rechargeable battery
Spare rechargeable battery
Battery-charging station with USB cable
Short Instructions
Professional Software IRSoft (Free Download)
