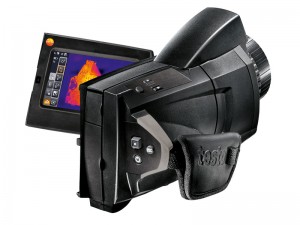

Testo 885-2 DLX Thermal Imaging Camera, 320 x 240 FPA, NETD < 30 mK w/ Telephoto Lens

Model: 885-2 | Order No: 0563 0885 73 | UPC: 4029547011566

Testo 885-2 DLX Thermal Imaging Camera, 320 x 240 FPA, NETD < 30 mK w/ Telephoto Lens-


Downloads: manual datasheet

Testo 885-2 DLX Thermal Imaging Camera, 320 x 240 FPA, NETD < 30 mK w/ Telephoto Lens

Model: 885-2 | Order No: 0563 0885 73

Deluxe Thermal Imager for Electrical and Mechanical Applications.
Features a 320 x 240 60Hz infrared detector with a >30mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480.

Deluxe Thermal Imager for Electrical and Mechanical Applications.
Features a 320 x 240 60Hz infrared detector with a >30mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480.

Sale Price $10145.60 USD
Regular Price $11936.00 USD
Availability 4 to 5 Weeks
Quantity

Add In-House Traceable Calibration to your 0563 0885 73

Add In-House Traceable Calibration to your 0563 0885 73


Testo 885-2 DLX Offers

You can carry out completely damage-free tests on materials and components with the Testo 885-2 Thermal Imager. Thanks to the 320 x 240-pixel detector, in combination with the high-quality Germanium optics, the Testo 885-2 achieves an excellent image quality. This allows for reliable detection of weak spots and problems in industrial and building thermography. In combination with the Testo SuperResolution technology, the Testo 885-2 records high-resolution thermal images in excellent quality (640 x 480 pixels) for very precise images and measurements.

Features

  • The included SuperResolution Technology enhances the image quality to 640 x 480
  • 11 x 9 degree telephoto lens
  • Lens protection glass
  • Panoramic image assistant
  • High temperature option up to 2192°F

Applications

Providing Comprehensive Energy Advice, Reliable High Temperature Measurement, Electrical Maintenance Checks, Monitoring and Checking Solar Energy Systems, Analyzing Building Shells at a Glance, See Critical Temperatures on Circuit Boards Precisely.

Testo 885-2 DLX Specifications

IR Resolution (Array Size) 76,800 (320 x 240)
Thermal Sensitivity <0.03°C (30mK)
Field of View 30° x 23° / 3.9" min. focus
Temperature Range -20 to 350°C (-4 to 662°F)
350 to 1200°C (662 to 2192°F)
Accuracy ±2% rdg.
Measurement Modes Spot, area, auto hot/cold, isotherm, average, surface moisture
Frame Refresh 33 Hz
Thermal Palettes 8
Focus Auto/Manual
Display Screen 4.3" touchscreen
Visual Camera Yes
Digital Zoom 3x
Image Fusion Twin Pix
Picture-in-Picture Yes
Memory Storage 2GB SD card
Video Output Yes
Insulation Alarm Yes
Dewpoint Alarm Yes
Color Alarm Yes
LED Illuminator Yes
Video Recording Yes
Annotations Bluetooth
Click here for complete specifications on the Testo 885-2

What's Included with the Testo 885-2 DLX

  • 885-2 DLX Thermal Imager
  • Hard Shell Storage Case
  • 11° Telephoto Lens
  • Lens Protector
  • 2GB SD Memory Card
  • USB Cable
  • IRSoft Software
  • Power Supply
  • Battery (+1 additional)
  • External Rapid Charger
  • Instruction Manual
  • Certificate of Conformity

Testo SuperResolution Offers

The patent-pending SuperResolution technology improves the thermal image quality of your Testo imagers with the included software upgrade. With SuperResolution, images have a higher resolution, and are therefore more detailed.

The important thing is that SuperResolution technology always records genuine temperature measuring values. There are no artificial intermediate values projected! This means that this technology offers the possibility of recording more temperature measuring values without using larger, more expensive detectors.

SuperResolution in Building Thermography

Outside Wall, Poor InsulationView hot-spots outside of a building in great detail, indicating poor insulation.
NFPA 1801-2013 CertificationInspect a floor heating system, ensuring that it is working properly.

In building thermography, SuperResolution technology is ideally suited to fast and effective detection of building damage. Energy losses in buildings’ heating or air conditioning systems can also be analyzed with the help of the high-resolution thermal images. The high level of detail in the image makes inadequate insulation, resulting heat losses or construction defects clearly visible. Leakages can also be displayed precisely in the thermal image using SuperResolution technology.

SuperResolution in Industrial Thermography

Hot FuseCheck for hot spots on fuses, to catch blow-outs before they happen.
Hot TransformerInspect for hot-spots on transformers, which can pose a safety hazard.

SuperResolution technology also plays an important role in industrial maintenance – above all in the detailed early detection of imminent damage in production-related plant components. In the case of mechanical components too, thermal irregularities (e.g. due to friction or incorrect adjustment) can indicate an elevated level of stress. In the field of research and development, the geometric resolution of the thermal image is of great significance. This is improved by a factor of 1.6 by SuperResolution technology. This means that even smaller objects can be recorded, which enables the measurement of the smallest possible structures.

Click on a category to view a selection of compatible accessories with the Testo 885-2 DLX Thermal Imaging Camera, 320 x 240 FPA, NETD < 30 mK w/ Telephoto Lens.

Testo 0554 8808 AC Power Supply for Thermal Imagers 0554 8808
Includes four switchable plug adapters.




Testo 0554 0191 Wireless Handle for Plug-in Probe Heads 0554 0191
Includes T/C Adapter. For use with the 435, 556, 560, 635, 735, 882, 875i-2, 885-2, 890-2, 925, and 926.




Testo 0636 9736 Humidity Plug-in Probe Head for Wireless Handle 0636 9736
Head measures 0 to 100% RH and -4.0° to 158.0 °F (-20 to 70°C). Requires the Testo 0554 0191 Wireless Handle for use.




Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.




Customer Reviews for the Testo 885-2

Ask a question about Testo 885-2 DLX Thermal Imaging Camera, 320 x 240 FPA, NETD < 30 mK w/ Telephoto Lens
