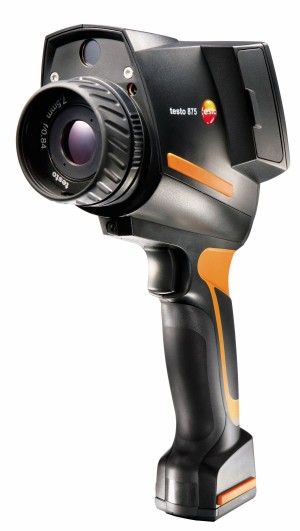

Testo 875i-2 Thermal Imaging Camera, 160 x 120 FPA, NETD < 50 mK w/ Humidity

Model: 875i-2 | Order No: 0563 0875 72 | UPC: 4029547012358

Testo 875i-2 Thermal Imaging Camera, 160 x 120 FPA, NETD < 50 mK w/ Humidity-


Downloads: datasheet manual

Testo 875i-2 Thermal Imaging Camera, 160 x 120 FPA, NETD < 50 mK w/ Humidity

Model: 875i-2 | Order No: 0563 0875 72

With class-leading sensitivity the 875i Series fits the needs of building science and preventive maintenance professionals. It provides the right amount of power and flexibility for an affordable value. Includes SuperResolution Technology which enhances the image quality to 320 x 240.

With class-leading sensitivity the 875i Series fits the needs of building science and preventive maintenance professionals. It provides the right amount of power and flexibility for an affordable value. Includes SuperResolution Technology which enhances the image quality to 320 x 240.

Sale Price $3782.50 USD
Regular Price $4450.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your 0563 0875 72

Add In-House Traceable Calibration to your 0563 0875 72


Testo 875-2i Thermal Imaging Camera Offers

The Testo 875-2i Thermal Imager is a trusty partner for a wide range of thermography applications in industry and building. This camera can be used to carry out non-destructive checks on materials and components and expose weak points which could cause major problems or breakdowns, or a fire hazard. Locate leaks in roofs, walls or windows with this camera. The latter inspections can help your customers to save on fuel bills and decide what type of renovation work they may need to carry out.

Features

  • Resolution and image quality: detector size 160 x 120 pixels = 19,200 temperature measuring points
  • Included SuperResolution technology enhances image quality to 320 x 240 pixels
  • Thermal sensitivity: < 50 mK
  • Onboard digital camera with power LEDs: real time recording parallel to each thermal image – built-in power LEDs guarantee optimal illumination in dark areas
  • Automatic hot and cold spot tracking
  • Solar mode: enter and save sunlight value for each thermal image
  • Special measuring mode to determine high risk of mold. Enter the surrounding temperature and RH, which you could have previously measured using a Testo 625 Thermo-Hygrometer. The Testo 875-2i measures surface temperature, calculates moisture values and shows the results as a moisture image on the display
  • Optional moisture measurements with additional wireless moisture sensors possible
  • Measuring range can be extended for high temperatures up to 1022 °F
  • Interchangeable lens; voice annotations via headset; intuitive, easy operation
  • The optional 9° x 7° telelens allows you to measure distant objects

Applications

Electrical Maintenance Checks, Preventative Mechanical Maintenance, Location of Structural Defects in Buildings, Precisely Locating Roof Leaks, HVAC/R Installations, Energy Consultations, Tracing Pipe Leaks, Moisture Damage, QC in Production Process.

Testo 875i-2 Specifications

IR Resolution (Array Size) 19,200 (160 x 120)
Thermal Sensitivity <0.05°C (50mK)
Field of View 32° x 23° / 7" min. focus
Temperature Range -20 to 350°C (-4 to 662°F), 350 to 550°C (662 to 1022°F)
Accuracy ±2% rdg.
Measurement Modes Spot
Frame Refresh 33 Hz
Thermal Palettes 9
Focus Manual
Display Screen 3.5" LCD
Image Fusion Twin Pix
Picture-in-Picture Yes
Memory Storage 2GB SD card
Video Output Yes
Insulation Alarm Yes
Dewpoint Alarm No
Color Alarm Yes
LED Illuminator Yes
Annotations Voice
Click here for complete specifications on the Testo 875i-2

What's Included with the Testo 875-2i

  • 875-2i Thermal Imager
  • PC Pro Software
  • Soft Case
  • Shoulder Strap
  • SD Memory Card
  • USB Cable
  • Lens Cloth
  • Power Adaptor
  • Li-Ion Battery
  • Certificate of Conformity
  • Tripod Mount Adaptor
  • Voice Annotation Headset

Testo SuperResolution Offers

The patent-pending SuperResolution technology improves the thermal image quality of your Testo imagers with the included software upgrade. With SuperResolution, images have a higher resolution, and are therefore more detailed.

The important thing is that SuperResolution technology always records genuine temperature measuring values. There are no artificial intermediate values projected! This means that this technology offers the possibility of recording more temperature measuring values without using larger, more expensive detectors.

SuperResolution in Building Thermography

Outside Wall, Poor InsulationView hot-spots outside of a building in great detail, indicating poor insulation.
NFPA 1801-2013 CertificationInspect a floor heating system, ensuring that it is working properly.

In building thermography, SuperResolution technology is ideally suited to fast and effective detection of building damage. Energy losses in buildings’ heating or air conditioning systems can also be analyzed with the help of the high-resolution thermal images. The high level of detail in the image makes inadequate insulation, resulting heat losses or construction defects clearly visible. Leakages can also be displayed precisely in the thermal image using SuperResolution technology.

SuperResolution in Industrial Thermography

Hot FuseCheck for hot spots on fuses, to catch blow-outs before they happen.
Hot TransformerInspect for hot-spots on transformers, which can pose a safety hazard.

SuperResolution technology also plays an important role in industrial maintenance – above all in the detailed early detection of imminent damage in production-related plant components. In the case of mechanical components too, thermal irregularities (e.g. due to friction or incorrect adjustment) can indicate an elevated level of stress. In the field of research and development, the geometric resolution of the thermal image is of great significance. This is improved by a factor of 1.6 by SuperResolution technology. This means that even smaller objects can be recorded, which enables the measurement of the smallest possible structures.

Click on a category to view a selection of compatible accessories with the Testo 875i-2 Thermal Imaging Camera, 160 x 120 FPA, NETD < 50 mK w/ Humidity.

Testo 0554 8808 AC Power Supply for Thermal Imagers 0554 8808
Includes four switchable plug adapters.




Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.




Testo 0554 8801 2 Bay Thermal Imager Battery Charger 0554 8801
Desktop rechargeable battery charging station for the 875, 875i, 881, and 882. Charges two batteries at a time.




Testo 0554 8805 Protective Lens Glass 0554 8805
Special germanium protective glass for optimum protection of the lens from dust and scratching.




Testo 0554 0191 Wireless Handle for Plug-in Probe Heads 0554 0191
Includes T/C Adapter. For use with the 435, 556, 560, 635, 735, 882, 875i-2, 885-2, 890-2, 925, and 926.
