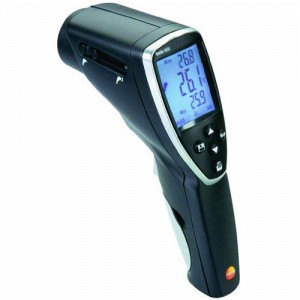

Testo 845 Infrared Thermometer, 75:1 Optics, External TC Connection

Model: 845 | Order No: 0563 8450 | UPC: 4029547004100

Testo 845 Infrared Thermometer, 75:1 Optics, External TC Connection-


Downloads: datasheet manual

Testo 845 Infrared Thermometer, 75:1 Optics, External TC Connection

Model: 845 | Order No: 0563 8450

IR Thermometer with cross laser sighting and switchable optics for far-field measurement and close focus measurement.

IR Thermometer with cross laser sighting and switchable optics for far-field measurement and close focus measurement.

This product has been discontinued. Click here for the replacement model(s).


Testo 845 Infrared Thermometer with Integrated Humidity Module Offers

For the first time, surface temperatures with smallest diameters can be measured accurately at short and long distances. The switchable optics for far-field and close focus measurement make this possible. Measurements in the far-field are made with an optical resolution of 75:1. Surface temperatures can thus be measured accurately even at greater distances from the object to be measured. At a distance of 1.2 metres from the object, the measurement point diameter is only 16 mm. A cross laser marks the measurement point exactly.

For measurements at a small distance from the object to be measured, the close focus optics provide a measurement point diameter of only 1 mm at a distance of 70 mm! Two laser points mark the measurement point.

Testo 845 Features

  • Switchable optics for far-field measurements (75:1) and close focus (1 mm, 70 mm distance)
  • Instrument memory for 90 measurement protocols
  • Backlit display (3-line) showing °C, %RH, °C td, min./max. values, alarm limit values and emissivity
  • Measurement data documentation on site with Testo report printer

Testo 845 Technical Data

Storage temperature -40 to +70 °C
Operating temperature -20 to +50 °C
Battery type 2 AA batteries
Dimensions 155 x 58 x 195 mm
Housing material ABS
Infrared
Measuring range -35 to +950 °C
Accuracy ±2.5 °C (-35 to -20.1 °C)
±1.5 °C (-20 to +19.9 °C)
±0.75 °C (+20 to +99.9 °C)
±0.75% of mv (+100 to +950 °C)
Resolution 0.1 °C
Type K
Measuring range -35 to +950 °C
Accuracy ±0.75 °C (-35 to +75 °C)
±1% of mv (+75.1 to +950 °C)
Resolution 0.1 °C
Click here for complete specifications on the Testo 845

What's Included with the Testo 845

  • Testo 845
  • PC Software with USB Cable
  • Aluminium Case
  • Battery
  • Calibration Protocol

Click on a category to view a selection of compatible accessories with the Testo 845 Infrared Thermometer, 75:1 Optics, External TC Connection.

Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.




Testo 0602 1793 Air Probe, Type K TC 0602 1793
Rugged air probe with 4ft cable. Useful for HVAC/R applications.




Testo 0602 0646 Flexible Bead Tip Probe, 60", Type K TC, PTFE 0602 0646
Thermocouple with T/C adapter and flexible teflon sheath. Class 2 accuracy.




Testo 0602 0645 Flexible Bead Tip Probe, 60", Type K TC, Fiberglass 0602 0645
Thermocouple with T/C adapter and fibre glass sheathing. Class 2 accuracy.




Testo 0602 0644 Flexible Bead Tip Probe, 32", Type K TC 0602 0644
Thermocouple with T/C adapter and fiber glass sheating. Class 2 accuracy.




Testo 0602 0743 Black Globe Probe, 6" dia., Type K TC 0602 0743
Adjustment time approx 30 min.




Testo 0554 0549 Universal Infrared Printer 0554 0549
Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0602 2292 Waterproof Food Probe, SS, Type K TC 0602 2292
TC type K stainless steel (IP65) waterproof food probe.




Testo 0602 2492 Waterproof Food Penetration Probe, Type K TC 0602 2492
Rugged food penetration probe with easy-grip handle for desnser foodstuffs. Includes a IP65 waterproof reinforced cable (PUR) with reinforced protection from buckling.




Testo 0602 2693 Waterproof Immersion/Penetration Probe, Type K TC 0602 2693
Super-quick, waterproof immersion/penetration probe. Calibration not available for temperatures over 300°C.




Testo 0602 1293 Waterproof Immersion/Penetration Probe, Type K TC 0602 1293
Useful for measuring inside of liquid wells, pipes, and the internal temperature of food.




Testo 0602 5792 Flexible Immersion Probe, 20", Type K TC 0602 5792
20" flexible thermocouple probe.




Testo 0602 0493 Flexible, Low-mass Immersion Probe, Type K TC 0602 0493
Flexible, low-mass immersion measurement tip. Ideal for measurements in small volumes such as petri dishes or for surface measurements (e.g. attached with adhesive tape).




Testo 0602 0593 Waterproof Immersion Probe, Type K TC 0602 0593
Efficient and fast-action. Includes a 1.2m cable and Type K mini plug connector.




Testo 0602 4892 10N Magnetic Probe for High Temperatures, Type K TC 0602 4892
Magnet has 10N (approx 2.2 lbs) of holding force on a ferrous metal. For High Temperature applications.




Testo 0602 4792 20N Magnetic Probe, Type K TC 0602 4792
Magnet has 20N (approx 4.5 lbs) of holding force on a ferrous metal.




Testo 0602 0293 Air/Immersion/Penetration Probe for Wireless Handle, Type K TC 0602 0293
Probe head for air, immersion, and penetration measurements.




Testo 0602 0092 Replacement Head for Pipe Clamp Probe 0602 0092
Spare measuring TC head for the 0602 4592 Pipe Clamp Probe.




Testo 0602 4692 Pipe Clamp Probe, 1" max. dia., Type K TC 0602 4692
Clamp probe for measurements on pipe diameters of 0.6 to 1". Measuring range to 266 °F short-term.




Testo 0602 4592 Pipe Clamp Probe, 2.5" max. dia., Type K TC 0602 4592
Pipe clamp probe for pipe diameters of 0.2 to 2.5", with replaceable measuring head. Measuring range to 536°F short-term.




Testo 0602 0394 Surface Probe for Wireless Handle, Type K TC 0602 0394
T/C probe head for surface measurement (T/C Type K).




Testo 0602 0393 Surface Probe, Spring-loaded, Type K TC 0602 0393
Fast-action surface probe with spring thermocouple, for uneven surfaces. Short-term range to 932°F.




Testo 0602 2394 Surface Probe, Flat Tip, Type K TC w/ Telescopic Handle 0602 2394
Measure hard-to-reach areas with the 24 inch telescopic handle. Useful for HVAC/R applications.




Testo 0602 1993 Waterproof Surface Probe, Flat Tip, Type K TC 0602 1993
Widenend measurement tip for flat surfaces.




Testo 0602 0693 Surface Probe, 0.1" dia. Tip, Type K TC 0602 0693
Efficient, waterproof surface probe with small measurement head for flat surfaces.




Testo 0602 0193 Paddle Surface Probe, Type K TC 0602 0193
Fast-reaction paddle surface probe, for measurements in inaccessible places, like narrow apertures and slots. For use with the 845.




Testo 0602 0993 90° Angle Surface Probe, Type K TC 0602 0993
Fast-action surface probe with spring thermocouple for uneven surfaces. Short-term to 932°F.




Testo 0602 5793 Bendable Cryogenic Probe, 20", Type K TC 0602 5793
For use with the 175 T3 Temperature Data Logger and 480V AC Meter.
