Testo 830-T4 KIT Infrared Thermometer Kit 30:1 Optics External TC Connection

Model: 830-T4 | Order No: 0563 8314 | UPC: 4029547011771

Testo 830-T4 KIT Infrared Thermometer Kit 30:1 Optics External TC Connection-


Downloads: datasheet manual

Testo 830-T4 KIT Infrared Thermometer Kit 30:1 Optics External TC Connection

Model: 830-T4 | Order No: 0563 8314

Testo 830-T4 set, consisting of Testo 830-T4 with protective leather case, incl. cross-band surface probe, battery and factory calibration certificate with the measurement points 176°C and 662°F.

Testo 830-T4 set, consisting of Testo 830-T4 with protective leather case, incl. cross-band surface probe, battery and factory calibration certificate with the measurement points 176°C and 662°F.

Sale Price $235.45 USD
Regular Price $277.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your 830-T4

Add In-House Traceable Calibration to your 830-T4


Testo 830-T4 Infrared Thermometer Kit Offers

This set consists of the testo 830-T4 with protective leather case and factory calibration certificate with the measurement points +176 °C and +662 °F.

This universal infrared thermometer is designed to perform fast and accurate surface temperature measurements in the HVAC/R area and industry. At a distance of 1 m the point diameter is only 3.6 cm. From a secure distance even smaller, difficult to access or dangerous targets can be measured without any problems. The new high resolution processor enables measurement results of unbelievable accuracy. And due to the min./max. function you can define your temperature limit values according to your needs. To control the limits with the help of an audible and visual alarm has never been easier.

Testo 830-T4 Features

  • 30:1 optics for measuring temperature at a distance, even on small objects
  • Fast measurement value recording at two measurements per second
  • 2-point laser for spot sighting
  • Display illumination

Testo 830-T4 Specifications

Temperature - TC Type K (NiCr-Ni)
Measuring Range -50 to 500°C
Accuracy ±0.5°C + 0.5% of mv
Resolution 0.1 °C
Measuring Rate 1.75 s
Temperature - Infrared
Measuring range -30 to +400 °C
Accuracy ±1.5°C (-20 to 0°C)
±2°C (-30 to -20.1°C)
±1°C or ±1% of mv (Remaining Range)
Resolution 0.1 °C
Measuring Rate 0.5 s
General Technical Data
Dimensions 190 x 75 x 38 mm
Operating Temperature -20 to 50°C
Housing ABS
Battery Type 9V Block Battery
Battery Life 15h
Storage Temperature -40 to 70°C
Weight 200 g
Click here for complete specifications on the Testo 830-T4

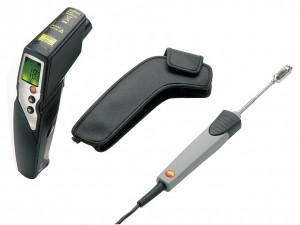

What's Included with the Testo 830-T4

  • testo 830-T4
  • Protective leather case
  • Cross-band surface probe
  • Battery
  • Factory calibration certificate with the measurement points +176 °C and +662 °F

Click on a category to view a selection of compatible accessories with the Testo 830-T4 KIT Infrared Thermometer Kit 30:1 Optics External TC Connection.

Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051
Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.




Testo 0602 1793 Air Probe, Type K TC 0602 1793
Rugged air probe with 4ft cable. Useful for HVAC/R applications.




Testo 0602 0644 Flexible Bead Tip Probe, 32", Type K TC 0602 0644
Thermocouple with T/C adapter and fiber glass sheating. Class 2 accuracy.




Testo 0602 0645 Flexible Bead Tip Probe, 60", Type K TC, Fiberglass 0602 0645
Thermocouple with T/C adapter and fibre glass sheathing. Class 2 accuracy.




Testo 0602 0646 Flexible Bead Tip Probe, 60", Type K TC, PTFE 0602 0646
Thermocouple with T/C adapter and flexible teflon sheath. Class 2 accuracy.




Testo 0602 0743 Black Globe Probe, 6" dia., Type K TC 0602 0743
Adjustment time approx 30 min.




Testo 0602 2492 Waterproof Food Penetration Probe, Type K TC 0602 2492
Rugged food penetration probe with easy-grip handle for desnser foodstuffs. Includes a IP65 waterproof reinforced cable (PUR) with reinforced protection from buckling.




Testo 0602 2292 Waterproof Food Probe, SS, Type K TC 0602 2292
TC type K stainless steel (IP65) waterproof food probe.




Testo 0602 1293 Waterproof Immersion/Penetration Probe, Type K TC 0602 1293
Useful for measuring inside of liquid wells, pipes, and the internal temperature of food.




Testo 0602 2693 Waterproof Immersion/Penetration Probe, Type K TC 0602 2693
Super-quick, waterproof immersion/penetration probe. Calibration not available for temperatures over 300°C.




Testo 0602 0593 Waterproof Immersion Probe, Type K TC 0602 0593
Efficient and fast-action. Includes a 1.2m cable and Type K mini plug connector.




Testo 0602 0493 Flexible, Low-mass Immersion Probe, Type K TC 0602 0493
Flexible, low-mass immersion measurement tip. Ideal for measurements in small volumes such as petri dishes or for surface measurements (e.g. attached with adhesive tape).




Testo 0602 5792 Flexible Immersion Probe, 20", Type K TC 0602 5792
20" flexible thermocouple probe.




Testo 0602 4892 10N Magnetic Probe for High Temperatures, Type K TC 0602 4892
Magnet has 10N (approx 2.2 lbs) of holding force on a ferrous metal. For High Temperature applications.




Testo 0602 4792 20N Magnetic Probe, Type K TC 0602 4792
Magnet has 20N (approx 4.5 lbs) of holding force on a ferrous metal.




Testo 0602 0293 Air/Immersion/Penetration Probe for Wireless Handle, Type K TC 0602 0293
Probe head for air, immersion, and penetration measurements.




Testo 0602 4692 Pipe Clamp Probe, 1" max. dia., Type K TC 0602 4692
Clamp probe for measurements on pipe diameters of 0.6 to 1". Measuring range to 266 °F short-term.




Testo 0602 4592 Pipe Clamp Probe, 2.5" max. dia., Type K TC 0602 4592
Pipe clamp probe for pipe diameters of 0.2 to 2.5", with replaceable measuring head. Measuring range to 536°F short-term.




Testo 0602 0393 Surface Probe, Spring-loaded, Type K TC 0602 0393
Fast-action surface probe with spring thermocouple, for uneven surfaces. Short-term range to 932°F.




Testo 0602 2394 Surface Probe, Flat Tip, Type K TC w/ Telescopic Handle 0602 2394
Measure hard-to-reach areas with the 24 inch telescopic handle. Useful for HVAC/R applications.




Testo 0602 1993 Waterproof Surface Probe, Flat Tip, Type K TC 0602 1993
Widenend measurement tip for flat surfaces.




Testo 0602 0993 90° Angle Surface Probe, Type K TC 0602 0993
Fast-action surface probe with spring thermocouple for uneven surfaces. Short-term to 932°F.




Testo 0602 0693 Surface Probe, 0.1" dia. Tip, Type K TC 0602 0693
Efficient, waterproof surface probe with small measurement head for flat surfaces.




Testo 0602 0394 Surface Probe for Wireless Handle, Type K TC 0602 0394
T/C probe head for surface measurement (T/C Type K).




Testo 0602 0193 Paddle Surface Probe, Type K TC 0602 0193
Fast-reaction paddle surface probe, for measurements in inaccessible places, like narrow apertures and slots. For use with the 845.




Testo 0602 5793 Bendable Cryogenic Probe, 20", Type K TC 0602 5793
For use with the 175 T3 Temperature Data Logger and 480V AC Meter.
