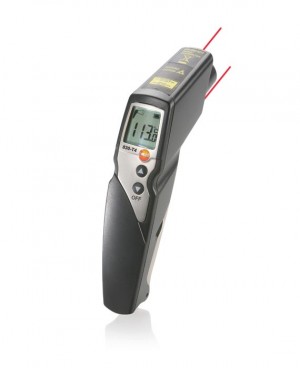

Testo 830-T4 Dual Laser IR Thermometer with 30:1 Optics

Model: 830-T4 | Order No: 0560 8314 | UPC: 4029547011702

Downloads: datasheet manual

Testo 830-T4 Dual Laser IR Thermometer with 30:1 Optics

Model: 830-T4 | Order No: 0560 8314

The large optic range is useful for measuring temperature at a distance, even on small objects. Features 2 point laser sighting to obtain a more accurate measurement point. Includes port for optional probes.

Sale Price	$215.90 USD
Regular Price	$254.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 830-T4 Dual Laser IR Thermometer with 30:1 Optics

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIIR1) for only $160.00 USD

Traceable Calibration Certificate for your 830-T4 Dual Laser IR Thermometer with 30:1 Optics

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIIR1) for only $160.00 USD

Recommended Accessories

Testo 0602 0645 Flexible Bead Tip Probe, 60", Type K TC, Fiberglass

0602 0645

Testo 0602 0644 Flexible Bead Tip Probe, 32", Type K TC

0602 0644

Testo 0554 0549 Universal Infrared Printer

0554 0549

Testo 0602 0493 Flexible, Low-mass Immersion Probe, Type K TC

0602 0493

Testo 0602 0593 Waterproof Immersion Probe, Type K TC

0602 0593

Testo 0602 0393 Surface Probe, Spring-loaded, Type K TC

0602 0393

Testo 830-T4 Offers

This universal infrared thermometer is designed to perform fast and accurate surface temperature measurements in the HVAC/R area and industry. At a distance of 1 m the point diameter is only 3.6 cm. From a secure distance even smaller, difficult to access or dangerous targets can be measured without any problems. The new high resolution processor enables measurement results of unbelievable accuracy. And due to the min./max. function you can define your temperature limit values according to your needs. To control the limits with the help of an audible and visual alarm has never been easier.

Features

30:1 optics for measuring temperature at a distance, even on small objects
Fast measurement value recording at two measurements per second
2-point laser for spot sighting
Display illumination

Testo 830-T4 Technical Data

Infrared
Storage temperature	-40 to +158°F
Operating temperature	-4 to +122°F
Battery type	9 volt battery
Battery life	15 hr
Dimensions	6.1 x 5.35 x 1.5 in
Housing material	ABS
Measuring range	-13 to +752°F
Accuracy	±1.8°F (-4 to +212°F) ±3.6°F or ±2% of rdg. (remaining range)
Resolution	0.5°C
Type K
Measuring range	-58 to +932°F
Accuracy	±(0.9°F +0.5% of rdg.)
Resolution	0.1 °C

Click here for complete specifications on the Testo 830-T4

What's Included with the Testo 830-T4

Testo 830-T4 Dual Laser IR Thermometer
Cross-brand Surface Probe
Protective Leather Case
Calibration Certificate
Battery

datasheet for the Testo 830-T4 Dual Laser IR Thermometer with 30:1 Optics manual for the Testo 830-T4 Dual Laser IR Thermometer with 30:1 Optics

Click on a category to view a selection of compatible accessories with the Testo 830-T4 Dual Laser IR Thermometer with 30:1 Optics.

Tape

Testo 0554 0051 Emission Adhesive Tape Roll for polished surfaces, 33ft (10m) 0554 0051

Adhesive Tape Roll for Infrared Thermometers. It features an emissivity of 0.95 and is resistant to temperatures up to 250°C. It measures 33ft in length and 1in in width.

Air Temperature Probes

Testo 0602 1793 Air Probe, Type K TC 0602 1793

Rugged air probe with 4ft cable. Useful for HVAC/R applications.

Bead Tip Probes

Testo 0602 0646 Flexible Bead Tip Probe, 60", Type K TC, PTFE 0602 0646

Thermocouple with T/C adapter and flexible teflon sheath. Class 2 accuracy.

Testo 0602 0645 Flexible Bead Tip Probe, 60", Type K TC, Fiberglass 0602 0645

Thermocouple with T/C adapter and fibre glass sheathing. Class 2 accuracy.

Testo 0602 0644 Flexible Bead Tip Probe, 32", Type K TC 0602 0644

Thermocouple with T/C adapter and fiber glass sheating. Class 2 accuracy.

Black Globe Probes

Testo 0602 0743 Black Globe Probe, 6" dia., Type K TC 0602 0743

Adjustment time approx 30 min.

Communications

Testo 0554 0549 Universal Infrared Printer 0554 0549

Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.

Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568

For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.

Food Temperature Probes

Testo 0602 2292 Waterproof Food Probe, SS, Type K TC 0602 2292

TC type K stainless steel (IP65) waterproof food probe.

Testo 0602 2492 Waterproof Food Penetration Probe, Type K TC 0602 2492

Rugged food penetration probe with easy-grip handle for desnser foodstuffs. Includes a IP65 waterproof reinforced cable (PUR) with reinforced protection from buckling.

Immersion & Penetration Probes

Testo 0602 2693 Waterproof Immersion/Penetration Probe, Type K TC 0602 2693

Super-quick, waterproof immersion/penetration probe. Calibration not available for temperatures over 300°C.

Testo 0602 1293 Waterproof Immersion/Penetration Probe, Type K TC 0602 1293

Useful for measuring inside of liquid wells, pipes, and the internal temperature of food.

Immersion Probes

Testo 0602 5792 Flexible Immersion Probe, 20", Type K TC 0602 5792

20" flexible thermocouple probe.

Testo 0602 0493 Flexible, Low-mass Immersion Probe, Type K TC 0602 0493

Flexible, low-mass immersion measurement tip. Ideal for measurements in small volumes such as petri dishes or for surface measurements (e.g. attached with adhesive tape).

Testo 0602 0593 Waterproof Immersion Probe, Type K TC 0602 0593

Efficient and fast-action. Includes a 1.2m cable and Type K mini plug connector.

Magnetic Temperature Probes

Testo 0602 4892 10N Magnetic Probe for High Temperatures, Type K TC 0602 4892

Magnet has 10N (approx 2.2 lbs) of holding force on a ferrous metal. For High Temperature applications.

Testo 0602 4792 20N Magnetic Probe, Type K TC 0602 4792

Magnet has 20N (approx 4.5 lbs) of holding force on a ferrous metal.

Penetration Probes

Testo 0602 0293 Air/Immersion/Penetration Probe for Wireless Handle, Type K TC 0602 0293

Probe head for air, immersion, and penetration measurements.

Pipe Clamp Temperature Probes

Testo 0602 0092 Replacement Head for Pipe Clamp Probe 0602 0092

Spare measuring TC head for the 0602 4592 Pipe Clamp Probe.

Testo 0602 4692 Pipe Clamp Probe, 1" max. dia., Type K TC 0602 4692

Clamp probe for measurements on pipe diameters of 0.6 to 1". Measuring range to 266 °F short-term.

Testo 0602 4592 Pipe Clamp Probe, 2.5" max. dia., Type K TC 0602 4592

Pipe clamp probe for pipe diameters of 0.2 to 2.5", with replaceable measuring head. Measuring range to 536°F short-term.

Surface Temperature Probes

Testo 0602 0394 Surface Probe for Wireless Handle, Type K TC 0602 0394

T/C probe head for surface measurement (T/C Type K).

Testo 0602 0393 Surface Probe, Spring-loaded, Type K TC 0602 0393

Fast-action surface probe with spring thermocouple, for uneven surfaces. Short-term range to 932°F.

Testo 0602 2394 Surface Probe, Flat Tip, Type K TC w/ Telescopic Handle 0602 2394

Measure hard-to-reach areas with the 24 inch telescopic handle. Useful for HVAC/R applications.

Testo 0602 1993 Waterproof Surface Probe, Flat Tip, Type K TC 0602 1993

Widenend measurement tip for flat surfaces.

Testo 0602 0693 Surface Probe, 0.1" dia. Tip, Type K TC 0602 0693

Efficient, waterproof surface probe with small measurement head for flat surfaces.

Testo 0602 0193 Paddle Surface Probe, Type K TC 0602 0193

Fast-reaction paddle surface probe, for measurements in inaccessible places, like narrow apertures and slots. For use with the 845.

Testo 0602 0993 90° Angle Surface Probe, Type K TC 0602 0993

Fast-action surface probe with spring thermocouple for uneven surfaces. Short-term to 932°F.
