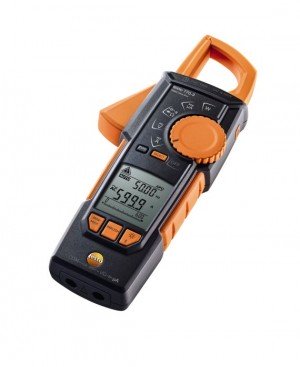

Testo 770-3 Hook-Clamp Digital Multimeter with TRMS, Power & Bluetooth, 600A

Model: 770-3 | Order No: 0590 7703

Testo 770-3 Hook-Clamp Digital Multimeter with TRMS, Power & Bluetooth, 600A-


Downloads: datasheet

Testo 770-3 Hook-Clamp Digital Multimeter with TRMS, Power & Bluetooth, 600A

Model: 770-3 | Order No: 0590 7703

The 770-3 includes real-time power measurements (Watts), Power Factor, and Bluetooth. The Testo App can be used for remote viewing, monitoring trending over time, and creating reports. The powerful app allows you to create custom reports that include photos, data, and graphs that can be saved or sent via email.

The 770-3 includes real-time power measurements (Watts), Power Factor, and Bluetooth. The Testo App can be used for remote viewing, monitoring trending over time, and creating reports. The powerful app allows you to create custom reports that include photos, data, and graphs that can be saved or sent via email.

This product has been discontinued. Contact us for more information.


Testo 770-3 Offers

Features

  • Unique hook-on function separates and grabs wires without using your hands and retractable post makes hook release fast and easy
  • Bluetooth with free Testo App for Smart Phone for remote viewing, monitoring trending over time, and creating reports
  • Real-time power measurements (Watts) with simultaneous power factor indication
  • µA for flame rod and can also measure temperature using an optional Type-K thermocouple adapter

Applications

Electrical Contractors, HVAC/R Technicians, Plant Maintenance

Compare - Electrical Instrument Comparison

Testo 770-3 Specifications

Temperature-Type K TC
Measuring range -4.0° to 932.0°F/-20 to +500°C
Accuracy ±1.8°F(32.0° to 212.0°F)/±1°C(0 to +100 °C)
Resolution 0.1°F/0.1°C
DC voltage
Resolution 6.000V/1mV
60.00V/10mV
600.0V/100mV
Accuracy ±(0.8% of mv + 3 Digit)
AC voltage
Resolution 6.000V/1mV
60.00V/10mV
600.0V/100mV
Accuracy ±(0.8% of mv + 3 Digit)
DC current
Resolution 600A/0.1A
Accuracy ±(2% of mv + 5 Digit)
AC current
Resolution 600A/0.1A
Accuracy ±(2% of mv + 5 Digit)
Resistance
Resolution 60.00Ohm/0.01Ohm
600.0Ohm/0.1Ohm
6.000kOhm/1Ohm
60.00kOhm/10Ohm
600.0kOhm/100Ohm
6.000MOhm/1kOhm
60.00MOhm/10kOhm
Accuracy ±(1.5% of mv + 3 Digit)
Capacitance
Resolution 60.00nF/0.01nF
600.0Ohm/0.1Ohm
600.0nF/0.1nF
6.000µF/0.001µF
60.00µF/0.01µF
600.0µF/0.1µF
6.000mF/1µF
60.00mF/10µF
Accuracy ±(1.5% of mv + 5 Digit)
Frequency
Resolution 99.99Hz/0.01Hz
999.9Hz/0.1Hz
9.999kHz/1Hz
Accuracy ±(1.0% of mv + 1 Digit)
General technical data
Storage temperature 5.0° to 140.0°F/-15 to +60°C
Overvoltage Category CAT IV 600V; CAT III 1000V
Operating temperature 14.0° to 122.0°F/-10 to +50°C
Click here for complete specifications on the Testo 770-3

What's included with Testo 770-3

  • 770-3 Hook-Clamp Digital Multimeter
  • Measuring Cables
  • Batteries

Testo 770 - Clamp Meter for Current Measurement

Click on a category to view a selection of compatible accessories with the Testo 770-3 Hook-Clamp Digital Multimeter with TRMS, Power & Bluetooth, 600A.

Testo 0590 0017 Carrying Case for 755 and 770 Series Electrical Meters 0590 0017
For use with 770-1, 770-2, 770-3 Clamp Meters, 755-1 / 775-2 Voltage Meters, and related accessories.
