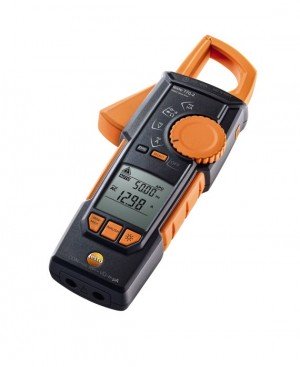

Testo 770-2 Hook-clamp Digital Multimeter with TRMS & Adapter for Type K Thermocouple, 400A AC/DC

Model: 770-2 | Order No: 0590 7702

Testo 770-2 Hook-clamp Digital Multimeter with TRMS & Adapter for Type K Thermocouple, 400A AC/DC-


Downloads: datasheet

Testo 770-2 Hook-clamp Digital Multimeter with TRMS & Adapter for Type K Thermocouple, 400A AC/DC

Model: 770-2 | Order No: 0590 7702

The unique hooking clamp can be used to separate then grab wires making it easy and safe to work in tight spaces. When the testing is complete the easy hook-off retractable post releases the wires. With the additional feature of µA, measuring temperature using an optional thermocouple adapter is also a possibility.

The unique hooking clamp can be used to separate then grab wires making it easy and safe to work in tight spaces. When the testing is complete the easy hook-off retractable post releases the wires. With the additional feature of µA, measuring temperature using an optional thermocouple adapter is also a possibility.

Sale Price $165.75 USD
Regular Price $195.00 USD
Availability Currently Not Available
Quantity

Add In-House Traceable Calibration to your 0590.7702


Testo 770-2 Offers

Features

  • Unique hook-on function separates and grabs wires without using your hands
  • Includes µA for flame rod and can measure temperature using Type K thermocouple adapter
  • Retractable post makes hook release fast and easy
  • Meter automatically identifies testing in-process and selects correct meter configuration to save time and optimize accuracy

Applications

Electrical Contractors, HVAC/R Technicians, Plant Maintenance

Compare - Electrical Instrument Comparison

Testo 770-2 Specifications

Temperature-Type K TC
Measuring Range -4.0° to 932.0°F/-20 to +500°C
Accuracy ±1.8°F(32.0° to 212.0°F)/±1°C(0 to +100°C)
Resolution 0.1°F/0.1°C
DC Voltage
Resolution 4.000V/1mV,40.00V/10mV,400.0V/100mV,600V/1V
Accuracy ±(0.8% of mv + 3 Digit)
AC Voltage
Resolution 4.000V/1mV,40.00V/10mV,400.0V/100mV,600V/1V
Accuracy ±(0.8% of mv + 3 Digit)
DC current
Resolution 400A/0.1A
Accuracy ±(2% of mv + 5 Digit)
AC Current
Resolution 400A/0.1A
Accuracy ±(2% of mv + 5 Digit)
Resistance
Resolution 400.0Ohm/0.1Ohm,4.000kOhm/1Ohm,40.00kOhm/10Ohm,400.0kOhm/100Ohm,4.000MOhm/1kOhm,40.00MOhm/10kOhm
Accuracy ±(1.5 % of mv + 3 Digit)
Capacitance
Resolution 51.20nF/0.01nF,512.0nF/0.1nF,5.120µF/0.001µF,51.20µF/0.01µF,100µF/0.1µF
Accuracy ±(1.5 % of mv + 5 Digit)
Frequency
Resolution 99.99Hz/0.01Hz, 999.9Hz/0.1Hz, 9.999kHz/1Hz
Accuracy ±(0.1% of mv + 1 Digit)
General Technical Data
Storage Temperature 5.0° to 140.0°F/-15 to +60°C
Overvoltage Category CAT IV 600V; CAT III 1000V
Operating Temperature 14.0° to 122.0°F/-10 to +50°C
Click here for complete specifications on the Testo 770-2

What's included with the Testo 770-2

  • 770-2-Hook-Clamp Digital Multimeter
  • Measuring Cables
  • Adapter
  • Batteries

Testo 770 - Clamp Meter for Current Measurement

Click on a category to view a selection of compatible accessories with the Testo 770-2 Hook-clamp Digital Multimeter with TRMS & Adapter for Type K Thermocouple, 400A AC/DC.

Testo 0590 0017 Carrying Case for 755 and 770 Series Electrical Meters 0590 0017
For use with 770-1, 770-2, 770-3 Clamp Meters, 755-1 / 775-2 Voltage Meters, and related accessories.
