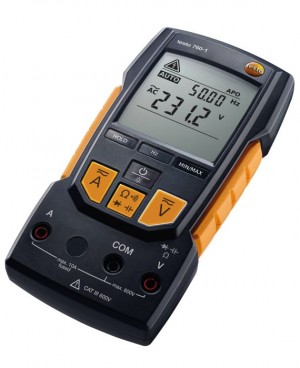

Testo 760-1 Digital Multimeter with Capacitance & Auto Setup

Model: 760-1 | Order No: 0590 7601

Testo 760-1 Digital Multimeter with Capacitance & Auto Setup-


Downloads: datasheet

Testo 760-1 Digital Multimeter with Capacitance & Auto Setup

Model: 760-1 | Order No: 0590 7601

Testo's exclusive auto-test setup enables the user to simply turn on the unit, connect the leads, and begin measuring. The Testo 760 Digital Multimeter detects the lead connection and prevents switching from V to A or A to V if leads are not in proper socket. This prevents accidentally blowing the meter's fuse because of incorrect connections.

Testo's exclusive auto-test setup enables the user to simply turn on the unit, connect the leads, and begin measuring. The Testo 760 Digital Multimeter detects the lead connection and prevents switching from V to A or A to V if leads are not in proper socket. This prevents accidentally blowing the meter's fuse because of incorrect connections.

Sale Price $92.65 USD
Regular Price $109.00 USD
Availability 1 in Stock
Quantity

Add In-House Traceable Calibration to your 0590.7601

Add In-House Traceable Calibration to your 0590.7601


Testo 760-1 Offers

The function and range settings are always correct because the measurement parameters are detected and set automatically. Three easy-to-read buttons replace the traditional rotary switch when selecting manual test functions.

Features

  • Auto test-setup based upon lead connection prevents blown fuses in the meter
  • Meter prevents switching from V to A or A to V if leads are not in the proper socket
  • Meter automatically detects testing in-process and selects correct meter configuration to save time and optimize accuracy
  • 3 buttons that illuminate for easy and clear selection of test functions

Applications

Electrical Contractors, HVAC/R Technicians, Plant Maintenance

Compare - Electrical Instrument Comparison

Testo 760-1 Specifications

Basic accuracy 0.8 %
AC/DC voltage measuring range 0.1 mV to 600 V
AC/DC current measuring range 1 mA to 10 A
Resistance range 0.1 to 40 MΩ
Frequency range 0.001 Hz to 500 kHz
Capacitance range 0.001 nF to 100 µF
Display (Dual Readout) 4,000 Counts
Safety category CAT III 600 V
Continuity Testing <30 Ω
Diode Test 2.5 V
Protection class IP 64
Operating temperature 14 to 122 °F (-10 to +50 °C)
Storage temperature -5 to 140 °F (-15 to +60 °C)
Dimensions 6.6 x 3.3 x 1.77in. (167 x 84 x 45 mm)
Weight 0.73 lbs (330 g)
Click here for complete specifications on the Testo 760-1

What's included with Testo 760-1

  • 760-1-Digital Multimeter
  • Test leads
  • Batteries

Testo 760 - Digital Multimeter

Click on a category to view a selection of compatible accessories with the Testo 760-1 Digital Multimeter with Capacitance & Auto Setup.

Testo 0590 0001 Magnetic Hanging Strap 0590 0001
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0014 Test Lead Extension Cables, 90° Plug 0590 0014
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0013 Test Lead Extension Cables, Straight Plug 0590 0013
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0012 Pin Type Standard Test Leads, Straight Plug 0590 0012
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0011 Standard Test Leads, 90° Plug 0590 0011
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0010 Pin Type Test Leads, 90° Plug 0590 0010
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0009 Standard Alligator Clips 0590 0009
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0008 Safety Alligator Clips 0590 0008
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.




Testo 0590 0007 Spare Fuses, set of 5, 630mA/600V 0590 0007
For use with Testo 760-1 and 760-2 Digital Multimeters.




Testo 0590 0005 Spare Fuses, set of 5, 11A/600V 0590 0005
For use with Testo 760-1 and 760-2 Digital Multimeters.




Testo 0590 0016 Carrying Case for the 760 Series 0590 0016
For use with Testo 760-1, 760-2 and 760-3 Digital Multimeters.
