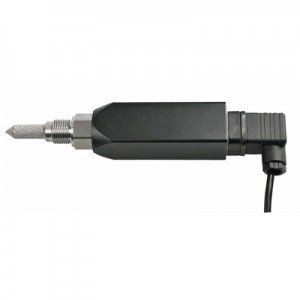

Testo 6742 Dew Point Transmitter, 1/2" NPT Thread

Model: 6742 | Order No: 0555 6742 | UPC: 4029547015489

Testo 6742 Dew Point Transmitter, 1/2" NPT Thread-


Downloads: datasheet

Testo 6742 Dew Point Transmitter, 1/2" NPT Thread

Model: 6742 | Order No: 0555 6742

Efficiently measure trace humidity in compressed air or dry air/dry gas. Features a 1/2" NPT thread.

Efficiently measure trace humidity in compressed air or dry air/dry gas. Features a 1/2" NPT thread.

Sale Price $1277.55 USD
Regular Price $1503.00 USD
Availability 2 Days
Quantity

Testo 6742 Offers

Features

  • Reliable measurement of trace humidity
  • 1/2" NPT thread
  • Calculation of the most important trace humidity variables, also ppm
  • Protocoled fine adjustment at -40°F (-40°C) tpd 4 to 20 mA in two-wire technology

Testo 6742 Specifications

Dewpoint/Trace Humidity
Units %RH, °C
Calculated Parameters °Ctd, °Ftd, °CtA, °FtA, ppmv, mg/m3, °F
Measuring Range -49 to 86°Ftd (-45 to 30°Ctd)
Measurement Uncertainty ±1 K at 32°Ftd (0°Ctd)
±3 K at -4°Ftd (-20°Ctd)
±4 K at -40°Ftd (-40°Ctd)
Sensor Polymer humidity sensor with protocolized trace humidity adjustment at -40°Ftd (-40°Ctd)
Normed Atmospheric Dewpoint
Measuring Range -112 to -5°FtdA (-70 to -15°CtdA)
(at 30 bar rel./435 psi)
-94 to 50°FtdA (-54 to 10°CtdA)
(at 3 bar rel./43.5 psi)
-76 to 86°FtdA (-45 to 30°CtdA)
(at 0 bar rel./0 psi)
Temperature
Measurement Range 32 to 122°F (0 to 50°C)
Measurement Uncertainty ±0.5 K (32 to 122°F/0 to 50°C)
Sensor NTC
Click here for complete specifications on the Testo 6742

What's included with the Testo 6742

  • Testo 6742 Dew Point Transmitter, 1/2" NPT Thread
