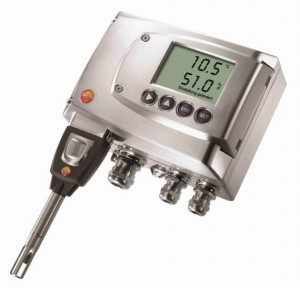

Testo 6681 Industrial Humidity Transmitter

Model: 6681 | Order No: 0555 6681 | UPC: 4029547015465

Testo 6681 Industrial Humidity Transmitter-


Downloads: datasheet manual

Testo 6681 Industrial Humidity Transmitter

Model: 6681 | Order No: 0555 6681

In industrial processes or in research-based business, the Testo 6681 temperature and humidity transmitter is ideal wherever critical climatic values need to be maintained.

In industrial processes or in research-based business, the Testo 6681 temperature and humidity transmitter is ideal wherever critical climatic values need to be maintained.

Call for Pricing
Availability 2 to 3 Weeks

Testo 6681 Offers

In industrial processes or in research-based business, the testo 6681 temperature and humidity transmitter is ideal wherever critical climatic values need to be maintained. The climate transmitter boasts a high-precision humidity sensor with long-term stability (optionally available), which enables it to achieve maximum precision: up to ±(1.0 + 0.007 reading).

Features

  • Optimum adjustment concept thanks to adjustability of the entire signal chain incl. analog adjustment
  • Analog outputs enable optimum integration into individual automation systems
  • Calculation and presentation of all relevant humidity parameters
  • Self-monitoring and an early warning function ensure high system availability
  • P2A software for parameterization, adjustment and analysis saves time and costs in commissioning and maintenance
  • Display with multi-language display
  • Robust, easy-to-clean metal housing

Applications

  • Drying processes (e.g. drying tobacco, manufacturing ceramics, drying roofing tiles)
  • Painting installations
  • Food production (e.g. cheese processing, ripening fruit, drying pasta)
  • Storing electronic components
  • High-humidity specialist fields
  • Sterilization processes in an H2O2 environment
  • Bio research
  • Mushroom cultivation
  • Clean rooms
  • Museums

Testo 6681 Specifications

Humidity Selectable units Dependent on probe, available are: relative humidity %RH; normed atm. dewpoint in °CtdA (°Ftd); dewpoint in °Ctd (°Ftd); absolute humidity in g/m³ (gr/ft³); degree of humidity in g/kg (gr/lb); enthalpy in kj/kg (BTU/ lb); psychrometer temperature in °Ctw (°Ftw); water vapour partial pressure in hPa/H20; water content in ppmV; mixture dewpoint H2O2 in °Ctm/°Ftm; %RH acc. to WMO; temperature in °C/°F
Meas. range 0 to 100 %RH
Temperature Units Temperature in °C / °F
Meas. range Dependent on probe (testo 661x)
Output 4 to 20 mA (2 wire, 24VDC)
Material Metal
Channel 1 % RH min-max
Channel 2 Temperature °F min-max
Cable Entry Cable bushing M16 X 1.5 (Relays: M20 X 1.5)
Dimensions 122 x 162 x 77 mm (without probe)
Display Resolution 0.1 %RH / °Ctd / °Ftd / °Ctw / °Ftw or 0.01 °C/°F 1g / kg / g/m³ / ppm
Click here for complete specifications on the Testo 6681

What's included with the Testo 6681

  • Testo 6681 temperature/humidity transmitter with selectable signal outputs
  • 2-line display (optional)
  • Ethernet/Profibus module (optional)
  • Output of all relevant humidity variables
  • Relay (optional)
  • 3 analog outputs (optional)
