Testo 0555 6448 Offers

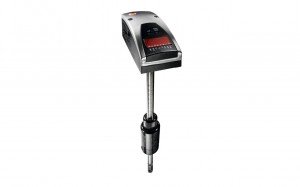

The testo 6448 compressed air meter is a transmitter that converts the measured parameter into a standardized electrical signal. This allows the meter to be easily integrated into systems like compressed air networks, making it a key instrument for measurement and control technology.

Features

• Ultimate flexibility with a variety of signal outputs: analog output, pulse output, 2 switching outputs. This means it can be used for any kind of application: consumption measurement, consumption or leak monitoring and also flow measurement
• Quick, safe assembly/disassembly of the probe thanks to reverse running protection and ball valve: no risk of injury due to reverse running, no escape of compressed air, probe can be used flexibly at multiple measuring point
• Assembly of the whole transmitter possible under pressure: the compressed air meter can be fitted during operation thanks to the tapping clamp (optional)
• Integrated totalling function: the totaliser enables the overall consumption to be determined without any additional analysis units
• Easy operation with a high degree of flexibility: parametrization of signal outputs, switching of physical units, signal delay and signal attenuation are all possible
• Measurement according to the calorimetric principle: no pressure loss during measurement
• Further advantages: no temperature compensation needed, fast response time, robust sensor, available for a variety of pipe diameters (DN40-250)
