Measuring differential pressure from 10 Pa to 1000 hPa, this transmitter maintains positive pressure in controlled environments and calculates flow velocity from the reading. Additionally, an optional probe adds simultaneous humidity and temperature measurement, and automatic zero-point adjustment preserves accuracy. It includes self-monitoring with an early-warning alarm.
Measuring differential pressure from 10 Pa to 1000 hPa, this transmitter maintains positive pressure in controlled environments and calculates flow velocity from the reading. Additionally, an optional probe adds simultaneous humidity and temperature measurement, and automatic zero-point adjustment preserves accuracy. It includes self-monitoring with an early-warning alarm.

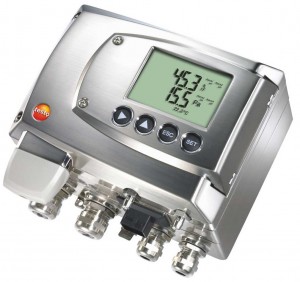

The Testo 6381 differential pressure transmitter with calculation of flow velocity and optionally with humidity/temperature, accuracy +/-0.5% of measuring range final value, automatic zero-point adjustment, selectable measuring range between 10 to 1000hPa, selectable signal outputs, optional display, output of all relevant pressure, flow and humidity parameters
Features
Applications
| Measuring range | Selectable between 10 Pa and 1,000 hPa |
| Sensor | Piezoresistive sensor |
| Autom. zero-point adjustment | via magnetic valve Frequency adjustable: 15 sec, 30 sec, 1 min, 5 min, 10 min |
| Display | Optional: 3-line LCD with multi-language operating menu |
| Operating temperature | -5 to 50 °C / 23 to 122 °F |
| Storage temperature | -20 to 60 °C / -4 to 140 °F |
| Measuring range | Selectable between 10 Pa and 1,000 hPa |
| Sensor | Piezoresistive sensor |
| Autom. zero-point adjustment | via magnetic valve Frequency adjustable: 15 sec, 30 sec, 1 min, 5 min, 10 min |
| Display | Optional: 3-line LCD with multi-language operating menu |
| Operating temperature | -5 to 50 °C / 23 to 122 °F |
| Storage temperature | -20 to 60 °C / -4 to 140 °F |
