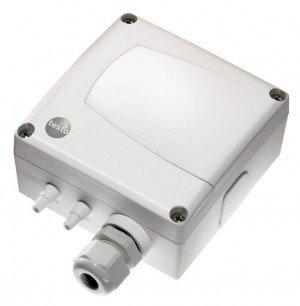

Testo 6321 ABS Compact Differential Pressure Transmitter

Model: 6321 | Order No: 0555 6321 | UPC: 4029547015366

Testo 6321 ABS Compact Differential Pressure Transmitter-


Downloads: datasheet manual

Testo 6321 ABS Compact Differential Pressure Transmitter

Model: 6321 | Order No: 0555 6321

Testo 6321 ensures the best possible system function, optimization of the climatic conditions and energy savings by means of highly accurate measurement, stable over the long-term, of the differential pressure.

Testo 6321 ensures the best possible system function, optimization of the climatic conditions and energy savings by means of highly accurate measurement, stable over the long-term, of the differential pressure.

Sale Price $396.95 USD
Regular Price $467.00 USD
Availability 2 to 3 Weeks
Quantity
This product requires one of the following accessories:

This product requires one of the following accessories:


Testo 6321 Offers

Testo 6321 Differential pressure transmitter has a good price/performance ratio with applications in air conditioning and ventilation technology. The automated building services must always be monitored precisely, whereby the requirements placed on the measuring technology are increased. Testo 6321 fulfills these requirements by ensuring the best possible system function, optimization of the climatic conditions and energy savings by means of highly accurate measurement, stable over the long-term, of the differential pressure.

Features

  • Measurement of differential pressure in the measuring range of 0 to 10 Pa
  • Accuracy ±1.2 percent of Measuring range: + intrinsic error of 0.3 Pa - valid for zeroing cycle of 60 sec/nominal temperature 22 °C
  • Freely scalable: ±50 percent of measuring range final value and free scalability within the measuring range
  • Piezoresistive sensor
  • Automatic zero-point adjustment: via magnetic valve
  • Protection class: IP65 only when the transmitter is wired and/or sealing plugs are in use
  • Output type: 0 to 1V (4-wire, 24VAC/DC)
  • Measuring rate: 1/s
  • Resolution: 12 bit
  • Maximum load: 500 ohms
  • Humidity (sensor): 0 to 90 percent rF
  • Temperature (sensor): -5 to 50 °C
  • Storage temperature: -40 to 80 °C

Applications

  • Industrial and commercial buildings, e.g. in production and storage
  • Controlling different pressure in critical environment areas
  • Different pressure measurement in equipment and tools
  • controlling different pressure in hospitals, labs, clinics, school buildings, hotels, restaurants etc.

Testo 6321 Specifications

Measuring range Selectable between 0Pa and 10Pa
Sensor Piezoresistive sensor
Autom. zero-point adjustment via magnetic valve
Units min/max in H2O
Operating temperature -5 to +50°C
Storage temperature -20 to +60°C
Click here for complete specifications on the Testo 6321

What's included with the Testo 6321

  • Testo 6321 ABS Compact Differential Pressure Transmitter
  • Customer Reviews for the Testo 6321

    Ask a question about Testo 6321 ABS Compact Differential Pressure Transmitter

    Testo 6321 Offers

    Testo 6321 Differential pressure transmitter has a good price/performance ratio with applications in air conditioning and ventilation technology. The automated building services must always be monitored precisely, whereby the requirements placed on the measuring technology are increased. Testo 6321 fulfills these requirements by ensuring the best possible system function, optimization of the climatic conditions and energy savings by means of highly accurate measurement, stable over the long-term, of the differential pressure.

    Features

    • Measurement of differential pressure in the measuring range of 0 to 10 Pa
    • Accuracy ±1.2 percent of Measuring range: + intrinsic error of 0.3 Pa - valid for zeroing cycle of 60 sec/nominal temperature 22 °C
    • Freely scalable: ±50 percent of measuring range final value and free scalability within the measuring range
    • Piezoresistive sensor
    • Automatic zero-point adjustment: via magnetic valve
    • Protection class: IP65 only when the transmitter is wired and/or sealing plugs are in use
    • Output type: 0 to 1V (4-wire, 24VAC/DC)
    • Measuring rate: 1/s
    • Resolution: 12 bit
    • Maximum load: 500 ohms
    • Humidity (sensor): 0 to 90 percent rF
    • Temperature (sensor): -5 to 50 °C
    • Storage temperature: -40 to 80 °C

    Applications

    • Industrial and commercial buildings, e.g. in production and storage
    • Controlling different pressure in critical environment areas
    • Different pressure measurement in equipment and tools
    • controlling different pressure in hospitals, labs, clinics, school buildings, hotels, restaurants etc.

    Testo 6321 Specifications

    Measuring range Selectable between 0Pa and 10Pa
    Sensor Piezoresistive sensor
    Autom. zero-point adjustment via magnetic valve
    Units min/max in H2O
    Operating temperature -5 to +50°C
    Storage temperature -20 to +60°C
    Click here for complete specifications on the Testo 6321

    What's included with the Testo 6321

  • Testo 6321 ABS Compact Differential Pressure Transmitter
  • Ask a question about Testo 6321 ABS Compact Differential Pressure Transmitter

    Customer Reviews for the Testo 6321
