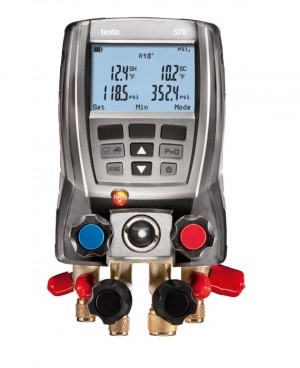

Testo 570 Digital Manifold with Vacuum Sensor & Data Logging

Model: 570 | Order No: 0563 5703 | UPC: 4029547011412

Testo 570 Digital Manifold with Vacuum Sensor & Data Logging-


Downloads: datasheet manual

Testo 570 Digital Manifold with Vacuum Sensor & Data Logging

Model: 570 | Order No: 0563 5703

This digital manifold is the ultimate AC/R trouble-shooting tool. Measure, analyze, and log oil pressure, ambiant and surface temperatures, electricity, and vacuum measurements for the evacuation of refrigerant systems/heat pumps.

This digital manifold is the ultimate AC/R trouble-shooting tool. Measure, analyze, and log oil pressure, ambiant and surface temperatures, electricity, and vacuum measurements for the evacuation of refrigerant systems/heat pumps.

Sale Price $735.25 USD
Regular Price $865.00 USD
Availability 4 in Stock
Quantity

Testo 570 Offers

The Testo 570 is a rugged digital manifold with a 4-way valve block that's ideal for installing and troubleshooting all types of refrigeration, heat pumps and AC systems. Use it daily for calculating superheat and subcooling simultaneously, in real time, with two external temperature probes. During heat pump mode the 570 saves you time by automatically switching over the high and low side pressure and temperature without having to change the hoses.

Testo 570 Features

  • Four-way valve, built-in digital pressure, vacuum, and micron gauge, and sight glass
  • Data logging and analysis of superheat and subcooling, vacuum, and high and low side pressure and temperatures with built-in pressure and temperature charts
  • Record and print up to 99 hours of measurement data and values onsite with optional Testo fast printer
  • NTC thermistor temperature used for optimal accuracy

Testo 570 Specifications

NTC
Measuring Range -58 to 302°F (-50 to 150°C)
Accuracy 1.0° (±1 Digit)
Resolution 0.1°
Vacuum
Measuring Range -1 to 0 psi
High Pressure Probe
Measuring Range -14.7 to 725 psi
Accuracy 0.5% fs (±1 Digit)
Resolution 0.01 bar / 0.1 psi
Overload 870 psi
Low Pressure Probe Measurement
Measuring Range -14.7 to 725 psi
Accuracy 0.5% fs (±1 Digit)
Resolution 0.01 bar / 0.1 psi
Overload 870 psi
General Specifications
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Temperature 14 to 122°F (-10 to 50°C)
Battery Life 40 Hours
Dimensions 11 x 5.25 x 3"
Click here for complete specifications on the Testo 570

What's included with the Testo 570

  • Digital Manifold Kit with Data Logging
  • 2x Temperature Clamp Probes
  • USB Data Cable
  • Calibration Protocol
  • Transport Case
  • Batteries

Click on a category to view a selection of compatible accessories with the Testo 570 Digital Manifold with Vacuum Sensor & Data Logging.

Testo 0613 5605 Pipe Clamp Probe, Ø5 to Ø65mm diameter 0613 5605
Measures Condenser and Evaporator Temperatures. For use with the Testo 550, 557 and 570.




Testo 0554 5570 Digital Manifolds, Valve Replacement Kit 0554 5570
Use this kit to replace valve positioners on digital manifolds from Testo. Particularly useful, you can replace the valve positioners yourself; directly on site. Can be used with the Testo 549, 550, 557 and 570 Series digital Manifolds.




Testo 0613 1712 Air Probe for Refrigeration System Analyzer 0613 1712
Efficient and robust NTC air probe with 3.9' cable.




Testo 0554 0549 Universal Infrared Printer 0554 0549
Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0613 2211 Penetration Probe for Food, SS, NTC 0613 2211
IP65 stainless steel features a PUR cable. Probe can be used up to 176°F. Includes a IP54 plug-in connection.




Testo 0613 1052 Frozen Food Tip, 3.5" long 0613 1052
Corkscrew tip design for easier penitration on frozen food. For use with the 105 Hand-Held T-Bar Thermometer.




Testo 0613 3311 Food Probe, SS, NTC 0613 3311
IP67 stainless steel, with Teflon cable. Resistant to temperatures up to 392°F (short-term to 482°F).




Testo 0613 3211 Frozen Food Probe w/ T-handle, NTC 0613 3211
Corkscrew tip design for easier penitration on frozen food.




Testo 0613 1212 Waterproof Immersion/Penetration Probe, NTC 0613 1212
Useful for measuring inside of liquid wells, pipes, and the internal temperature of food.




Testo 0613 2411 Penetration Probe w/ T-handle, NTC 0613 2411
Robust food penetration probe with easy grip handle. Includes a IP65 waterproof reinforced cable (PUR) with reinforced protection from buckling.




Testo 0613 1053 Penetration Tip, 7.8" long 0613 1053
Long tip design for deep temperature measurements. For use with the 105 Hand-Held T-Bar Thermometer.




Testo 0613 1051 Penetration Tip, 4" long 0613 1051
Multipurpose standard designed probe tip. For use with the 105 Hand-Held T-Bar Thermometer.




Testo 0613 4611 Pipe Wrap Probe for Refrigeration System Analyzer 0613 4611
Pipe probe with Velcro. For 3" pipe diameters.




Testo 0613 5505 Clamp Probe for Refrigeration System Analyzer 0613 5505
Clamp fits to 1/4 to 1-1/3" pipes. Features a Measuring range of -40 to +125 °C. For use with the 549, 550, 557, and 570.Clamp fits to 1/4 to 1-1/3" pipes. For use with the 549, 550, 557, and 570.




Testo 0613 1912 Surface Probe for Refrigeration System Analyzer 0613 1912
Waterproof NTC surface probe for measurements on flat surfaces.
