Testo 550 Refrigeration Digital Manifold Kit

Model: 550 | Order No: 0563 1550 | UPC: 4029547013393

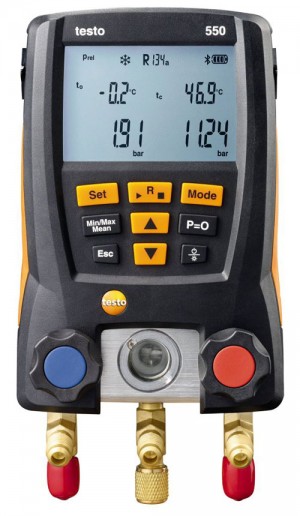

Testo 550 Refrigeration Digital Manifold Kit-


Downloads: datasheet manual

Testo 550 Refrigeration Digital Manifold Kit

Model: 550 | Order No: 0563 1550

Robust tool for daily work on refrigeration systems and heat pumps. The 2-way metal valve block with 3 connections and 3 hose parkers allows you to work quickly and easily. Comes with manifold, with bluetooth, 2 clamp probes, batteries and case. Calibrated.

Robust tool for daily work on refrigeration systems and heat pumps. The 2-way metal valve block with 3 connections and 3 hose parkers allows you to work quickly and easily. Comes with manifold, with bluetooth, 2 clamp probes, batteries and case. Calibrated.

Sale Price $322.15 USD
Regular Price $379.00 USD
Availability 19 in Stock
Quantity

Testo 550 Offers

The Testo 550 instantly displays superheat and sub-cooling for up to 60 refrigerants. It also measures high / low side pressures and temperatures. With its free Bluetooth linked App, the Testo 550 opens up new possibilities for efficient analysis and documentation.

PLEASE NOTE: The Testo Refrigeration App currently runs on iOS7 (or later), and Android 4.3 or 4.4 ONLY

Features

  • Includes two temperature clamp probes (two channel NTC temperature inputs) and service case
  • Bluetooth / App integration for monitoring, report generation, and sending reports and invoices via email
  • Large 2-line backlit display
  • Measures high side / low side pressures and temperatures and displays saturation and evaporation temperatures
  • 2-way valve block with three connections
  • 60 refrigerant profiles stored in the instrument
  • Simplified menu structure using ESC key
  • Automatic superheat and sub-cooling calculations

Digital Manifold with Bluetooth for Servicing and Charging

Testo's full line if Digital Manifolds are ideal for servicing and charging an AC/R system.

Bluetooth App

  • Opens up new possibilities for efficient analysis and documentation
  • Read the measurement data on a smartphone or tablet, allowing for more work quickly and conveniently
  • Finalize and email the measurement report directly from the job site
  • The app allows the list of stored refrigerants to be uploaded

Servicing and Charging an AC/R

  • Stand alone or App operation
  • Measure high & low-side pressures & temperatures
  • 60 on-board refrigerant profiles

Applications

  • Airconditioning
  • Refrigeration
  • Preventative Maintenance
  • Facilities

Testo 550 Digital Manifold Kit Offers

NTC Measuring Range  -58 to 302°F (-50 to +150°C)
NTC Accuracy  ±.9°F (±0.5°C)
NTC Resolution  0.1°F (0.1°C)
Vacuum Measuring Range  -14.7 to 0 psi (-1 bar to 0 bar) (display only)
Low Pressure Probe Measuring Range  -14.7 to 870 psi (-1 to 60 bar)
Low Pressure Probe Accuracy  ±0.5% fs
Low Pressure Probe Resolution  0.1 psi (0.01 bar)
Low Pressure Probe Overload  65 psi
Process Connection 1/4"
Storage Temperature   -4 to 140° F (-20 to +60°C)
Operating Temperature  -4 to 122° F (-10 to +50°C)
Battery Life  250 h (less with use of Bluetooth, backlight or vacuum)
Dimensions  8.7 x 4.0 x 2.75" (220 x 125 x 70 mm)
Click here for complete specifications on the Testo 550

What's included with the Testo 550

  • 550 Digital Manifold with Bluetooth/App
  • 2-Clamp Probes
  • Batteries
  • Case
  • Certificate of Conformity
  • Users Manual

Testo: The Smart World of Refrigeration

How To Make Basic Settings on the Testo 550 and 557 Digital Manifold


In this video, the user will receive a step by step tutorial on how to make basic settings on their digital manifold. Additionally, this instrument allows the user to read measurement data right on your smartphone or tablet thanks to the Bluetooth connectivity and the Testo Refrigeration app.

How To Switch Measurement Views on the Testo 550 and 557 Digital Manifold


This video will serve as a tutorial video on how to switch measurement views on the digital manifold. Also, this instrument allows the user to read measurement data, such as automatic calculations of superheating and subcooling on a smartphone or tablet.

How To Set Up the Connection on the Testo Refrigeration App


This tutorial video will walk the user through the steps needed to connect their digital manifold to the refrigeration app. Additionally, users can view measurement data on their smartphones or tablets.

How To Switch Measurement Views on the Testo Refrigeration App


This video will serve as a tutorial on how to switch measurement views on the refrigeration app. Users can swipe left or right on the screen to view a different measurement.

How To Update the Refrigerants on the Testo Refrigeration App


This video will show the viewer how to update their refrigerants on the refrigeration app. Additionally, unlimited refrigerants can be selected or deselected.

How To Create Reports on the Testo Refrigeration App


In this video, the user will learn how to create a report through the refrigeration app. Additionally, they can select or import the address, add other data such as a job number, select a photo for the report, and send it by email.

Click on a category to view a selection of compatible accessories with the Testo 550 Refrigeration Digital Manifold Kit.

Testo 0613 1912 Surface Probe for Refrigeration System Analyzer 0613 1912
Waterproof NTC surface probe for measurements on flat surfaces.




Testo 0613 4611 Pipe Wrap Probe for Refrigeration System Analyzer 0613 4611
Pipe probe with Velcro. For 3" pipe diameters.




Testo 0613 5505 Clamp Probe for Refrigeration System Analyzer 0613 5505
Clamp fits to 1/4 to 1-1/3" pipes. Features a Measuring range of -40 to +125 °C. For use with the 549, 550, 557, and 570.Clamp fits to 1/4 to 1-1/3" pipes. For use with the 549, 550, 557, and 570.




Testo 0628 0020 Pipe Wrap Probe w/ Velcro, 5" max. dia., Type K TC 0628 0020
Pipe probe with Velcro. For 5" pipe diameters.




Testo 0613 5605 Pipe Clamp Probe, Ø5 to Ø65mm diameter 0613 5605
Measures Condenser and Evaporator Temperatures. For use with the Testo 550, 557 and 570.




Testo 0516 0012 Transport Case for Testo 549/550 and Accessories 0516 0012
Carry your Testo 549 and 550 Digital Manifolds and accessories in this heavy duty transport case.




Testo 0554 5570 Digital Manifolds, Valve Replacement Kit 0554 5570
Use this kit to replace valve positioners on digital manifolds from Testo. Particularly useful, you can replace the valve positioners yourself; directly on site. Can be used with the Testo 549, 550, 557 and 570 Series digital Manifolds.
