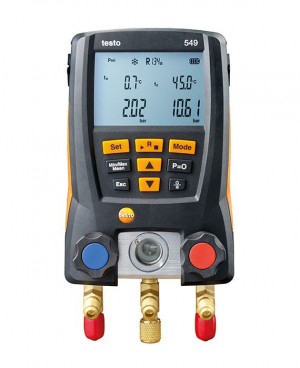

Testo 549 Refrigeration Digital Manifold

Model: 549 | Order No: 0560 0550 | UPC: 4029547013386

Testo 549 Refrigeration Digital Manifold-


Downloads: datasheet manual

Testo 549 Refrigeration Digital Manifold

Model: 549 | Order No: 0560 0550

Robust tool for daily work on refrigeration systems and heat pumps. The 2-way metal valve block with 3 connections and 3 hose parkers allows you to work quickly and easily.

Robust tool for daily work on refrigeration systems and heat pumps. The 2-way metal valve block with 3 connections and 3 hose parkers allows you to work quickly and easily.

Sale Price $211.65 USD
Regular Price $249.00 USD
Availability 34 in Stock
Quantity

Testo 549 Offers

The Testo 549 It precisely measures high side / low side pressure and instantly displays the corresponding saturation / evaporation temperatures for 60 refrigerants. With optional temperature probes, automatic superheat and sub-cooling calculations can be displayed.

Features

  • 60 refrigerant profiles stored in the instrument
  • Rugged design and housing with 5 year warranty with registration
  • Large 2-line backlit display
  • Digital accuracy performs more reliably than analog manifold gauge sets for more precise readings
  • Measures high side / low side pressure and displays saturation / evaporation temperatures
  • 2-way valve block with three connections and sight glass
  • Provides real-time superheat and sub-cooling with optional temperature probes

Applications

  • Air Conditioning
  • Refrigeration
  • Preventative Maintenance

Testo 549 Digital Manifold Offers

NTC Measuring Range  -58 to 302°F (-50 to +150°C)
NTC Accuracy  ±.9°F (±0.5°C)
NTC Resolution  0.1°F (0.1°C)
Vacuum Measuring Range  -14.7 to 0 psi (-1 bar to 0 bar) (display only)
Low Pressure Probe Measuring Range  -14.7 to 870 psi (-1 to 60 bar)
Low Pressure Probe Accuracy  ±0.5% fs
Low Pressure Probe Resolution  0.1 psi (0.01 bar)
Low Pressure Probe Overload  940 psi (65 bar)
Storage Temperature   -4 to 140° F (-20 to +60°C)
Operating Temperature  -4 to 122° F (-10 to +50°C)
Battery Life  250 h (without backlight)
Dimensions  7.9 x 4.3 x 2.5" (200 x 109 x 63 mm)
Click here for complete specifications on the Testo 549

What's included with the Testo 549

  • 549 Digital Manifold
  • Batteries
  • Certificate of Conformity
  • Users Manual

Click on a category to view a selection of compatible accessories with the Testo 549 Refrigeration Digital Manifold.

Testo 0613 1912 Surface Probe for Refrigeration System Analyzer 0613 1912
Waterproof NTC surface probe for measurements on flat surfaces.




Testo 0613 4611 Pipe Wrap Probe for Refrigeration System Analyzer 0613 4611
Pipe probe with Velcro. For 3" pipe diameters.




Testo 0613 5505 Clamp Probe for Refrigeration System Analyzer 0613 5505
Clamp fits to 1/4 to 1-1/3" pipes. Features a Measuring range of -40 to +125 °C. For use with the 549, 550, 557, and 570.Clamp fits to 1/4 to 1-1/3" pipes. For use with the 549, 550, 557, and 570.




Testo 0628 0020 Pipe Wrap Probe w/ Velcro, 5" max. dia., Type K TC 0628 0020
Pipe probe with Velcro. For 5" pipe diameters.




Testo 0516 0012 Transport Case for Testo 549/550 and Accessories 0516 0012
Carry your Testo 549 and 550 Digital Manifolds and accessories in this heavy duty transport case.




Testo 0554 5570 Digital Manifolds, Valve Replacement Kit 0554 5570
Use this kit to replace valve positioners on digital manifolds from Testo. Particularly useful, you can replace the valve positioners yourself; directly on site. Can be used with the Testo 549, 550, 557 and 570 Series digital Manifolds.
