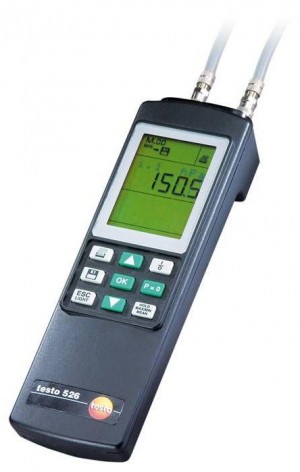

Testo 526-1 Differential Pressure Meter, 0 to 2000 hPa, 0-1% Accuracy

Model: 526-1 | Order No: 0560 5280 | UPC: 4029547010118

Testo 526-1 Differential Pressure Meter, 0 to 2000 hPa, 0-1% Accuracy-


Downloads: datasheet manual

Testo 526-1 Differential Pressure Meter, 0 to 2000 hPa, 0-1% Accuracy

Model: 526-1 | Order No: 0560 5280

The Testo 526 is the differential pressure meter for industrial applications. Critical processes can be measured and monitored efficiently with an accuracy of up to 0.05% of the full-scale value.

The Testo 526 is the differential pressure meter for industrial applications. Critical processes can be measured and monitored efficiently with an accuracy of up to 0.05% of the full-scale value.

Sale Price $909.50 USD
Regular Price $1070.00 USD
Availability 5 to 6 Weeks
Quantity

Testo 526-1 Offers

Features

  • Temperature-compensated differential pressure sensor
  • Multi-point and timed mean calculation
  • Recording of measurement data with freely selectable measuring rate
  • 2 probe inputs for pressure and temperature

Applications

The testo 526 is the differential pressure meter designed for industrial applications, where critical processes require measurement and monitoring with accuracy up to 0.05 % of full scale value.

Testo 526-1 Specifications

Operating temperature 0 to +50°C
Storage temperature -20° to 70 °F
Power supply Battery/Rechargeable battery,Mains unit 12 V
Battery type 9 V (6LR61)
Battery life Continuous operation w/ internal pressure sensor: 30 h With rech. battery: 10 h With carbon battery: 18 h
Dimensions 219 x 68 x 50 mm
Material/Housing ABS
Memory 100 kB (corresponds to approx. 25000 readings)
Connection Hose: inner Ø 4 mm outer Ø 6 mm
Display LCD display with symbol, 7 segment display and point matrix
Measuring rate from 0.04 seconds
PC RS232 interface
Click here for complete specifications on the Testo 526-1

What's included with the Testo 526-1

  • Testo 526-1 high-precision differential pressure measuring instrument
  • Calibration protocol
  • Quick-release connections
  • Batteries

Click on a category to view a selection of compatible accessories with the Testo 526-1 Differential Pressure Meter, 0 to 2000 hPa, 0-1% Accuracy.

Testo 0409 0202 Connection cable, 2.5m 0409 0202
2.5m connector cable for Testo 0638 1741, 0638 1841, 0638 1941, 0638 2041 and 0638 2141 pressure probes.




Testo 0554 0610 External NiMH Battery Recharger 0554 0610
External recharger incld. 4 Ni-NMH rechargeable batteries with built-in international power supply - 100-240 V, 300 MA, 50/60 Hz, 12 VA/instrument.
