Testo 476 Kit, Pocket Strobe Hand-Held Stroboscope

Model: 476 | Order No: 0563 4760 | UPC: 4029547001772

Testo 476 Kit, Pocket Strobe Hand-Held Stroboscope-


Downloads: datasheet manual

Testo 476 Kit, Pocket Strobe Hand-Held Stroboscope

Model: 476 | Order No: 0563 4760

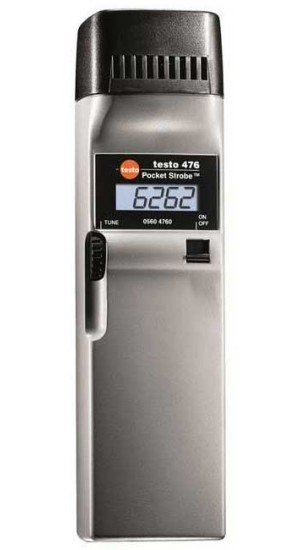

The Testo 476 Pocket Strobe™ hand-held stroboscope measures and checks rotation and vibration movements. It facilitates the measurement of very small objects or in hard-to-access places.

The Testo 476 Pocket Strobe™ hand-held stroboscope measures and checks rotation and vibration movements. It facilitates the measurement of very small objects or in hard-to-access places.

Sale Price $871.25 USD
Regular Price $1025.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your 0563 4760

Add In-House Traceable Calibration to your 0563 4760


Testo 476 Offers

The high light-intensity hand stroboscope testo 476 is used when it is necessary to make fast-moving objects appear in slow motion. The hand stroboscope Pocket Strobe™ measures and tests rotation and vibration movements. It allows the measurement of very small objects, or in places which are not directly accessible and it does this without interrupting the production process! The testo 476 is thus optimally suitable for rpm measurements and for the inspection of components moving at high frequencies.

Features

  • High adjustment accuracy and stability thanks to setting wheel with dynamic reaction
  • High-intensity light thanks to energy-optimzed switching electronics and high-performance xenon flash lamp
  • Memory function (last value is stored when instrument is switched off)
  • High-performance battery pack for min. 2 hours continuous operation without mains connection over entire frequency range
  • Trigger input for synchronizing the flash sequence (longterm inspection)
  • Tripod connection on housing

Applications

  • AutomotiveIndustry
  • Research quality control
  • Laboratories
  • Medical technology

Testo 476 Specifications

rpm - Xenon Measuring range 30 to 12500 rpm
Accuracy ±0.01 % of mv
Resolution 1 rpm
TPM Measuring range 0.0 to 40.0 % TPM
Housing ABS
Illumination value 800 Lux at distance of approx. 20 cm
Flash color 6000 to 6500 K
Life-time flash lamp 200,000,000 flashes
Connection external trigger 0 to 5 V DTL/TTL compatible; 3.5 mm / 1/8 Standard plug; Uout=7.2 V unregulated
Display size one-line
Display Function 5 digit LCD display
Dimensions 9 x 3 x 2 in. / 240 x 65 x 50 mm
Operating temperature 32° to 104 °F / 0 to +40 °C
Click here for complete specifications on the Testo 476

What's included with the Testo 476

  • Testo 476 hand-held stroboscope (Xenon) for rpm measurement
  • Transport case
  • Charger with 4 country-specific adapters
  • Trigger signal connector

Customer Reviews for the Testo 476

Ask a question about Testo 476 Kit, Pocket Strobe Hand-Held Stroboscope

Testo 476 Offers

The high light-intensity hand stroboscope testo 476 is used when it is necessary to make fast-moving objects appear in slow motion. The hand stroboscope Pocket Strobe™ measures and tests rotation and vibration movements. It allows the measurement of very small objects, or in places which are not directly accessible and it does this without interrupting the production process! The testo 476 is thus optimally suitable for rpm measurements and for the inspection of components moving at high frequencies.

Features

  • High adjustment accuracy and stability thanks to setting wheel with dynamic reaction
  • High-intensity light thanks to energy-optimzed switching electronics and high-performance xenon flash lamp
  • Memory function (last value is stored when instrument is switched off)
  • High-performance battery pack for min. 2 hours continuous operation without mains connection over entire frequency range
  • Trigger input for synchronizing the flash sequence (longterm inspection)
  • Tripod connection on housing

Applications

  • AutomotiveIndustry
  • Research quality control
  • Laboratories
  • Medical technology

Testo 476 Specifications

rpm - Xenon Measuring range 30 to 12500 rpm
Accuracy ±0.01 % of mv
Resolution 1 rpm
TPM Measuring range 0.0 to 40.0 % TPM
Housing ABS
Illumination value 800 Lux at distance of approx. 20 cm
Flash color 6000 to 6500 K
Life-time flash lamp 200,000,000 flashes
Connection external trigger 0 to 5 V DTL/TTL compatible; 3.5 mm / 1/8 Standard plug; Uout=7.2 V unregulated
Display size one-line
Display Function 5 digit LCD display
Dimensions 9 x 3 x 2 in. / 240 x 65 x 50 mm
Operating temperature 32° to 104 °F / 0 to +40 °C
Click here for complete specifications on the Testo 476

What's included with the Testo 476

  • Testo 476 hand-held stroboscope (Xenon) for rpm measurement
  • Transport case
  • Charger with 4 country-specific adapters
  • Trigger signal connector

Ask a question about Testo 476 Kit, Pocket Strobe Hand-Held Stroboscope

Customer Reviews for the Testo 476
