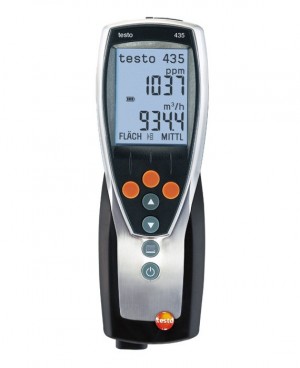

Testo 435-1 Multi-function IAQ/HVAC/R Meter

Model: 435-1 | Order No: 0560 4351 | UPC: 4029547004131

Downloads: datasheet manual

Testo 435-1 Multi-function IAQ/HVAC/R Meter

Model: 435-1 | Order No: 0560 4351

Basic model to display and optimally print data on-site. An affordable introduction to measurement engineering for ambient air conditions.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Testo 440 dP Air Velocity and IAQ Measuring Instrument with differential pressure sensor

Model: 440 | Order No: 0560 4402

Precise and reliable, this multifunction measuring instrument is intuitive and easy to use thanks to its integrated differential pressure sensor and clearly structured menus. In addition, adjust air conditioning and ventilation systems and monitor air quality without the hassle of juggling multiple tools and different devices.

Learn More

Testo 440 Air Velocity and IAQ Measuring Instrument with digital vane probe, ø 0.63"

Model: 440 | Order No: 0563 4401

Precise and reliable, this multifunction measuring instrument is intuitive and easy to use thanks to its clearly structured menus. In addition, this kit includes the air velocity and IAQ meter, a ø 0.63" wired vane probe with an extendable telescope, a USB cable, 3 x AA batteries, and a standard carrying case.

Learn More

Testo 440 Air Velocity and IAQ Measuring Instrument with Bluetooth

Model: 440 | Order No: 0560 4401

Precise and reliable, this multifunction measuring instrument is intuitive and easy to use thanks to its clearly structured menus. In addition, by using multiple attachments, adjust air conditioning and ventilation systems and monitor air quality without the hassle of juggling multiple tools and different devices.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

Testo 0613 1712 Air Probe for Refrigeration System Analyzer

0613 1712

Testo 0554 0190 Wireless Module

0554 0190

Testo 0613 1212 Waterproof Immersion/Penetration Probe, NTC

0613 1212

Testo 0613 4611 Pipe Wrap Probe for Refrigeration System Analyzer

0613 4611

Testo 435-1 Offers

The Testo 435-1 is a measuring instrument for ambient air conditions, for assessing Indoor Air Quality and adjusting and inspecting VAC systems. The new IAQ probe measures Indoor Air Quality by measuring CO₂ level, air moisture and air temperature. Temperature and humidity measurement is integrated in the new thermal probe.

Readings from up to 3 temperature probes can be displayed in the clearly laid-out measuring instrument display; data transmission is radio-controlled, therefore wireless. Measurement data is printed on site on the Testo printer.

Features

2-line, back-lit display
User-defined fast function keys
IAQ probe for assessment of Indoor Air Quality (optional)
Vane measurement and thermal probes (optional)

Testo 435-1 Specifications

Storage Temperature	-22 to 158°F
Operating Temperature	-4 to 122°F
Battery Type	Alkali Manganese, Mignon, Type AA
Battery Life	200 Hours (Typical Vane Measurement)
Dimensions	86.61 x 29.13 x 18.11"
Housing Material	ABS/TPE/Metal
Type T (Cu-CuNi)
Measuring Range	-328 to 752°F
Accuracy	±0.54°F (-76 to 140 °F) ±0.5% of rdg. (Remaining Range)
Resolution	0.1°C
Airflow - Vane
Measuring Range	0 to 197 fpm
Resolution	0.01fpm (60 + 100 mm Vane) 0.1 fpm (16 mm Vane)
NTC
Measuring Range	-40 to 302°F
Accuracy	±0.36°F (-13 to 166.82°F) ±0.72°F (-40 to -13.18°F) ±0.72°F (167 to 211.82°F) ±0.5% of rdg. (Remaining Range)
Resolution	0.1°C
Absolute Pressure Probe
Measuring Range	0 to 800 inH₂O
Resolution	0.1 inH₂O
Hot Wire
Measuring Range	0 to 3937 fpm
Resolution	0.01 fpm
CO₂
Measuring Range	0 to 10,000 ppm CO₂
Resolution	1 ppm CO₂
Humidity
Measuring Range	0 to 100 %RH
Resolution	0.1 %RH
Type K
Measuring Range	-328 to 2498°F
Accuracy	±0.54°F (-76 to 140°F) ±0.5% of rdg. (Remaining Range)
Resolution	0.1°C

Click here for complete specifications on the Testo 435-1

What's included with the Testo 435-1

Multi-function IAQ/HVAC/R Meter
Batteries
Conformity Certificate

datasheet for the Testo 435-1 Multi-function IAQ/HVAC/R Meter manual for the Testo 435-1 Multi-function IAQ/HVAC/R Meter
