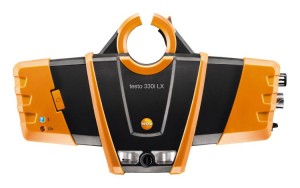

Testo 330i LX Combustion Analyzer Kit with Bluetooth®

Model: 330i | Order No: 0563 3000 72

Testo 330i LX Combustion Analyzer Kit with Bluetooth&reg-


Downloads: datasheet manual

Testo 330i LX Combustion Analyzer Kit with Bluetooth®

Model: 330i | Order No: 0563 3000 72

Featuring a remote controlled combustion analyzer that is quick and easy to install, enabling you to overcome all of the challenges when servicing heating systems. Numerous measurement options and intuitive operation make your daily work easier, allows more freedom, and flexibility.

Featuring a remote controlled combustion analyzer that is quick and easy to install, enabling you to overcome all of the challenges when servicing heating systems. Numerous measurement options and intuitive operation make your daily work easier, allows more freedom, and flexibility.

Sale Price $1742.50 USD
Regular Price $2050.00 USD
Availability 2 to 3 Weeks
Quantity

Add In-House Traceable Calibration to your 0563 3000 72

Add In-House Traceable Calibration to your 0563 3000 72


Testo 330i Offers

Features

  • Paperless documentation and report creation on site, with the testo 330i LX app
  • Reliable attachment of the flue gas probe with the testoFix probe holder
  • Robust, completely enclosed plastic housing, for use in harsh environments
  • User-replaceable long-life sensors with a service life of up to 6 years; this saves at least one sensor replacement over the instrument's typical useful life
  • H2-compensated CO measuring cell (The testo 330i LX is also approved for official acceptance testing of heating systems)
  • Integrated draught and gas zeroing, without removing the probe (The probe can remain in the flue during zeroing)
  • Fresh air dilution upon exceeding a CO threshold value up to 30,000 ppm
  • Measures O2, CO (330i LX up to 8000 ppm), differential pressure, draft, ambient, and flue temperatures
  • TUV-tested according to the 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1 - 3
  • Testo 330i and Combustion app are required
  • Remotely operate and display readings via smartphone or tablet with the 330i app

Applications

  • Heating
  • Differential pressure measurement
  • O2 supply air measurement
  • Flue gas analysis and flue gas measurement

Testo 330i Specifications

Pressure Measurements
Measuring Range 0 to 120 InH2O (0 to 300 hPa)
Accuracy ±0.2 InH2O (0.0 to 20.0 InH2O)
±1 % of mv (20.0 to 40.0 InH2O)
±1.5 % of mv (Remaining Range)
±0.5 hPa (0.0 to 50.0 hPa)
±1 % of mv (50.1 to 100.0 hPa)
±1.5 % of mv (Remaining Range)
Resolution 0.0 InH2O (0.1 hPa)
CO Measurements
Measuring Range 0 to 30,000 ppm
Accuracy ±200 ppm or ±20 % of mv (0 to 30,000 ppm)
Resolution 1 ppm
Temperature
Measuring Range -40 to 2192°F (-40 to 1200°C)
Accuracy ±0.9°F (32.0 to 212.0°F)
±0.5°C (0.0 to 100.0°C)
±0.5% of mv (Remaining Range)
Resolution 0.1°F (-40 to 1831.8°F)
±1°F (Remaining Range)
0.1°C (-40 to 999.9°C)
±1°C (Remaining Range)
General Specifications
Operating Temperature 23 to 113°F (-5 to 45°C)
Storage Temperature -4 to 122°F (-20 to 50°C)
Power Supply Rechargeable Battery Block 3.7 V / 2.6 Ah
Mains Unit 6 V /1.2 A (Optional)
System Requirements Requires iOS 7.1 or Newer
Requires Android 4.3 or Newer
Requires Mobile End Device with Bluetooth 4.0
Maximum 500,000 Readings
Dimensions 11 x 6 x 2" (270 x 160 x 57 mm)
Weight 25 oz (720 g) (Excluding Battery)
Click here for complete specifications on the Testo 330i

What's included with the Testo 330i

  • Combustion Analyzer Kit
  • Certificate of Conformity
  • H2-Compensated CO Sensor
  • Combustion Air Temperature Probe
  • 10 x Particle Filters
  • Li-Ion Rechargeable Battery
  • Universal Adapter
  • Hard Carrying Case
