Testo 330-2G LL Kit #2 Combustion Analyzer with NOX and Hi-range CO with Bluetooth

Model: 400563 3372 BT | Order No: 400563 3372-BT

Testo 330-2G LL Kit #2 Combustion Analyzer with NOX and Hi-range CO with Bluetooth-


Downloads: datasheet manual

Testo 330-2G LL Kit #2 Combustion Analyzer with NOX and Hi-range CO with Bluetooth

Model: 400563 3372 BT | Order No: 400563 3372-BT

Commercial/Industrial Combustion & NOx kit measures O2, CO (to 30,000ppm), temperature, pressure and other required combustion efficiency parameters. This model includes Bluetooth.

Commercial/Industrial Combustion & NOx kit measures O2, CO (to 30,000ppm), temperature, pressure and other required combustion efficiency parameters. This model includes Bluetooth.

This product has been discontinued. Click here for the replacement model(s).


Testo 330-2G LL Kit #2 Offers

This model includes Bluetooth.

For commercial and industrial boiler combustion analysis, the Testo 330-2G LL Kit 2 combustion analyzer is properly outfitted NO sensor to calculate NOX, high range CO, sensor protection, large memory for maintaining service records, and on-site printing capability. The Testo 330-2G LL combustion analyzer has the longest sensor warranty on the market - 4 years!. Rugged construction and high quality sensors provide years of reliability and very low cost-of-ownership.

Features

  • Calculates NOX
  • Over-range sensor protection
  • Built-on dilution systems allows for CO readings to 30,000ppm
  • On board self-diagnostics and service tracking
  • Efficient "in the green" or "in the red" display results allow for fine tuning the combustion process
  • Optional probes for hi-temp, gas leak, ambient CO and more
  • Memory up to 500,000 readings
  • Calculates CO2, efficiency, excess air, CO air free

Testo 330-2G LL Kit #2 Technical Data

Differential Pressure
Measuring Range 0 to 300 inH2O
Accuracy ±0.5 inH2O (0.0 to 50.0 inH2O)
±1% of rdg. (50.1 to 100.0 inH2O)
±1.5 % of rdg. (remaining range)
Resolution 0.1 inH2O
CO Low
Measuring Range 0 to 500 ppm
Accuracy ±2 ppm (0.0 to 40.0 ppm)
±5% of rdg. (remaining range)
Resolution 0.1 ppm
NO Measurement
Measuring Range 0 to 3000 ppm
Accuracy ±5 ppm (0 to 100 ppm)
±5% of rdg. (101 to 2000 ppm)
±10% of rdg. (2001 to 3000 ppm)
Resolution 1 ppm
O2 Measurement
Measuring Range 0 to 21 Vol. %
Accuracy ±0.2 Vol. %
Resolution 0.1 Vol. %
Exhaust Gas Measurement
Measuring Range 0 to 99.9%
Resolution 0.1%
Draft Measurements
Measuring Range -9.99 to +40 inH2O
Accuracy ±0.02 inH2O or ±5% of rdg. (-0.50 to +0.60 inH2O)
±0.03 inH2O (+0.61 to +3.00 inH2O)
±1.5% of rdg. (+3.01 to +40.00 inH2O)
Resolution 0.01 inH2O
CO Measurement (Electrochemical)
Measuring Range 0 to 8000 ppm
Accuracy ±10 ppm or ±10% of rdg. (0 to 200 ppm)
±20 ppm or ±5% of rdg. (201 to 2000 ppm)
±10% of rdg. (2001 to 8000 ppm)
Resolution 1 ppm
CO2
Measuring Range 0 to 1 Vol. %
0 to 10.000 ppm
Accuracy ±(50 ppm ±2% of rdg.) (0 to 5000 ppm)
Reaction time Approx. 35 sec.
CO
Measuring Range 0 to 500 ppm
Accuracy ±5 ppm (0 to 100 ppm)
±5% of rdg. (>100 ppm)
Resolution 1 ppm
Reaction time Approx. 35 sec.
Efficiency Measurement (ETA)
Measuring Range 0 to 120%
Resolution 0.1%
Type K
Measuring Range -40 to 1200 °C
Accuracy (relative) ±0,5 °C (0.0 to +100.0 °C)
±0,5 % of rdg. (remaining range)
Resolution 0.1 °C (-40 to 999,9 °C)
1 °C (remaining range)
CO2 - Determination
Measuring Range 0 to CO2 max
Accuracy ±0.2 Vol. %
Resolution 0.1 Vol.%
Reaction time < 40 sec.
General Specifications
Memory 500.000 values
Storage Temperature -20 to 50 °C
Operating Temperature -5 to +45 °C
Dimensions 270 x 90 x 65 mm
Click here for complete specifications on the Testo 400563 3372 BT

What's Included with the Testo 330-2G LL Kit #2

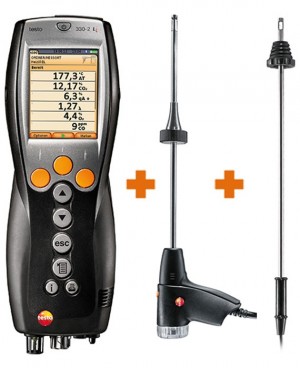

  • 330-2G LL Combustion Analyzer
  • O2, CO, and NO, 12" Flue Gas Probe
  • AC Power Supply
  • Li-Ion Battery
  • Charger
  • Case

Click on a category to view a selection of compatible accessories with the Testo 330-2G LL Kit #2 Combustion Analyzer with NOX and Hi-range CO with Bluetooth.

Testo 0449 0047 Mini USB to Standard USB Converter 0449 0047
For use with the 330-1, 330-2, and 335.




Testo 0554 0549 Universal Infrared Printer 0554 0549
Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0554 1202 Flue Gas Hose Extension, 9' 0554 1202
Extensions can be used toghether with the standard hose for a maximum length of 25 feet.




Testo 0554 3332 EasyHeat Software (interface cable not included) 0554 3332
Set up, download and analyze data. For Flue Gas Analyzers.




Testo 0554 3385 Spare Particle Filter for Modular Flue Gas Probes (Pk/10) 0554 3385
Disk type filter that fits standard Modular Flue Gas probe handles. Package of 10.
