Testo 330-2G LX Kit #2 Combustion Analyzer with NOx and Hi-Range CO

Model: 330-2G LX | Order No: 400563 3372

Testo 330-2G LX Kit #2 Combustion Analyzer with NO<sub>x</sub> and Hi-Range CO-


Downloads: datasheet manual

Testo 330-2G LX Kit #2 Combustion Analyzer with NOx and Hi-Range CO

Model: 330-2G LX | Order No: 400563 3372

Commercial/Industrial Combustion & NOx kit measures O2, CO (to 30,000 ppm), temperature, pressure and other required combustion efficiency parameters.

Commercial/Industrial Combustion & NOx kit measures O2, CO (to 30,000 ppm), temperature, pressure and other required combustion efficiency parameters.

This product has been discontinued. Click here for the replacement model(s).


Testo 330-2G LX Offers

For commercial and industrial boiler combustion analysis, the combustion analyzer is properly outfitted NO sensor to calculate NOx, high range CO, sensor protection, large memory for maintaining service records, and on-site printing capability. The combustion analyzer has the longest sensor warranty on the market. Rugged construction and high quality sensors provide years of reliability and very low cost-of-ownership.

Features

  • Calculates NOx
  • Over-range sensor protection
  • Built-on dilution systems allows for CO readings to 30,000 ppm
  • On board self-diagnostics and service tracking
  • Efficient "in the green" or "in the red" display results allow for fine tuning the combustion process
  • Optional probes for hi-temp, gas leak, ambient CO and more
  • Memory up to 500,000 readings
  • Calculates CO2, efficiency, excess air, CO air free

Testo 330-2G LX Specifications

Temperature
Measuring Range 40 to 2192°F (-40 to 1200°C)
Accuracy ±1°F (32 to 212.0°F) (±0.5°C (0 to 100.0°C)
Remaining Range: ±0.5 % of m.v.
Resolution 0.1°F (-40 to 1832°F) (0.1°C [-40 to 999.9°C])
1.0°F (>1832°F) (1°C [>1000°C])
Pressure Measurement
Measuring Range 0 to 120 inH20 (0 to 300 hPa)
Accuracy ±0.2 inH2O (0.0 to 20.0 inH2O) (±0.5 hPa [0.0 to 50.0 hPa])
±1% of mv (20.0 to 40.0 inH2O) (±1% of mv [50.1 to 100.0 hPa])
Remaining Range: ±1.5 % of m.v.
Resolution 0.1 inH2O (0.1 hPa)
General Specifications
Display 240 x 320 pixels
Storage Temperature -4 to 122°F (-20 to 50°C)
Operating Temperature 23 to 113°F (-5 to 45°C)
Dimensions 11 x 4 x 3" (270 x 90 x 65 mm)
Weight Without rechargeable battery: 21 oz. (600 g)
Click here for complete specifications on the Testo 330-2G LX

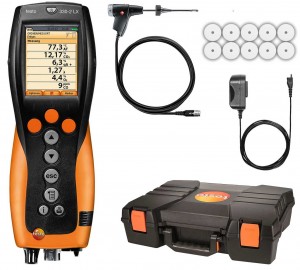

What's included with the Testo 330-2G LX

  • Combustion Analyzer with NOx Measurement
  • Certificate of Conformity
  • Sensors (O2, H2-compensated CO, & NO)
  • 12" Flue Gas Probe with 7' Hose
  • AC Power Adapter
  • 10 x Particulate Filters
  • Rechargeable Li-Ion Battery
  • Case

Testo Combustion Analyzers: Series 310, 320 & 330

Click on a category to view a selection of compatible accessories with the Testo 330-2G LX Kit #2 Combustion Analyzer with NOx and Hi-Range CO.

Testo 0449 0047 Mini USB to Standard USB Converter 0449 0047
For use with the 330-1, 330-2, and 335.




Testo 0554 8764 13" Probe Shaft 0554 8764
For use with the Testo 330.




Testo 0554 9764 Flexible Probe Without Handle 0554 9764
180°C maximum temperature.




Testo 0554 0116 Adhesive Storage Pockets 0554 0116
For use with the Testo 330.




Testo 0554 0307 Standard Smoke Test Kit 0554 0307
For measuring soot in flue gas and for use with flue gas analysers. Includes scale, filter paper and lubricant.




Testo 0604 0194 Surface Probe, Type K TC 0604 0194
Quick-action plug-in probe.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0554 0549 Universal Infrared Printer 0554 0549
Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




Testo 0554 1202 Flue Gas Hose Extension, 9' 0554 1202
Extensions can be used toghether with the standard hose for a maximum length of 25 feet.




Testo 0554 3332 EasyHeat Software (interface cable not included) 0554 3332
Set up, download and analyze data. For Flue Gas Analyzers.




Testo 0554 3385 Spare Particle Filter for Modular Flue Gas Probes (Pk/10) 0554 3385
Disk type filter that fits standard Modular Flue Gas probe handles. Package of 10.
