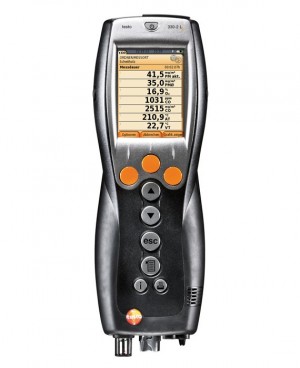

Testo 330-2G LL Kit #1 Combustion Analyzer and 12" Flue Gas Probe with Bluetooth

Model: 0563 3372 71 BT | Order No: 0563 3372 71-BT

Testo 330-2G LL Kit #1 Combustion Analyzer and 12" Flue Gas Probe with Bluetooth-


Downloads: datasheet manual

Testo 330-2G LL Kit #1 Combustion Analyzer and 12" Flue Gas Probe with Bluetooth

Model: 0563 3372 71 BT | Order No: 0563 3372 71-BT

Commercial/Industrial Combustion kit measures O2, CO (to 30,000ppm), temperature, pressure and other required combustion efficiency parameters. This model includes Bluetooth.

Commercial/Industrial Combustion kit measures O2, CO (to 30,000ppm), temperature, pressure and other required combustion efficiency parameters. This model includes Bluetooth.

This product has been discontinued. Click here for the replacement model(s).


Testo 330-2G LL Kit #1 Offers

This model includes Bluetooth.

For commercial and industrial flue gas applications, the Testo 330-2G LL Kit 1 combustion analyzer is properly outfitted with high range CO, sensor protection, large memory for maintaining service records, on-site printing capability, and if needed it is easily field upgraded with a plug and play NO sensor. The interface for burner control modules makes this a versatile flue gas tuning and testing tool. The Testo 330-2G LL combustion analyzer has the longest sensor warranty on the market - 4 years! Rugged construction and high quality sensors provide years of reliability and very low cost-of-ownership.

Features

  • Built-on dilution systems allows for CO readings to 30,000ppm
  • On board self-diagnostics and service tracking
  • Over-range sensor protection
  • Efficient "in the green" or "in the red" display box results allow for fine tuning the combustion process
  • Optional probes for hi-temp, gas leak, ambient CO and more
  • Memory up to 500,000 readings
  • Calculates CO2, efficiency, excess air, CO air free
  • Long life sensors(up to six years) with over-range protection
  • Industrial CO range of 8,000ppm (up to 30,000 via on board dilution)
  • Intuitive Graphic Display
  • Optional NOx sensor is field upgradeable

Testo 330-2G LL Kit #1 Technical Data

Memory 500.000 values
Storage temperature -20 to +50 °C
Operating temperature -5 to +45 °C
Dimensions 270 x 90 x 65 mm
Differential Pressure
Measuring range 0 to 300 inH2O
Accuracy ±0.5 inH2O (0.0 to 50.0 inH2O)
±1% of rdg. (50.1 to 100.0 inH2O)
±1.5 % of rdg. (remaining range)
Resolution 0.1 inH2O
CO low
Measuring range 0 to 500 ppm
Accuracy ±2 ppm (0.0 to 40.0 ppm)
±5% of rdg. (remaining range)
Resolution 0.1 ppm
NO measurement (electrochemical)
Measuring range 0 to 3000 ppm
Accuracy ±5 ppm (0 to 100 ppm)
±5% of rdg. (101 to 2000 ppm)
±10% of rdg. (2001 to 3000 ppm)
Resolution 1 ppm
O2 measurement (electrochemical)
Measuring range 0 to 21 Vol. %
Accuracy ±0.2 Vol. %
Resolution 0.1 Vol. %
Exhaust gas measurement
Measuring range 0 to 99.9%
Resolution 0.1%
Draft Measurement
Measuring range -9.99 to +40 inH2O
Accuracy ±0.02 inH2O or ±5% of rdg. (-0.50 to +0.60 inH2O)
±0.03 inH2O (+0.61 to +3.00 inH2O)
±1.5% of rdg. (+3.01 to +40.00 inH2O)
Resolution 0.01 inH2O
CO measurement (electrochemical)
Measuring range 0 to 8000 ppm
Accuracy ±10 ppm or ±10% of rdg. (0 to 200 ppm)
±20 ppm or ±5% of rdg. (201 to 2000 ppm)
±10% of rdg. (2001 to 8000 ppm)
Resolution 1 ppm
CO2
Measuring range 0 to 1 Vol. %
0 to 10.000 ppm
Accuracy ±(50 ppm ±2% of rdg.) (0 to 5000 ppm)
Reaction time Approx. 35 sec.
CO
Measuring range 0 to 500 ppm
Accuracy ±5 ppm (0 to 100 ppm)
±5% of rdg. (>100 ppm)
Resolution 1 ppm
Reaction time Approx. 35 sec.
Efficiency Measurement (ETA)
Measuring range 0 to 120%
Resolution 0.1%
Type K
Measuring range -40 to +1200 °C
Accuracy (relative) ±0,5 °C (0.0 to +100.0 °C)
±0,5 % of rdg. (remaining range)
Resolution 0.1 °C (-40 to 999,9 °C)
1 °C (remaining range)
CO2-Determination
Measuring range 0 to CO2 max
Accuracy ±0.2 Vol. %
Resolution 0.1 Vol. %
Reaction time < 40 sec.
Click here for complete specifications on the Testo 0563 3372 71 BT

What's Included with the Testo 330-2G LL Kit #1

  • Combustion Analyzer
  • 12" Flue Gas Probe
  • Li-Ion Recharger with Battery
  • Power Supply
  • Recharger
  • Particle Filters
  • Case

Testo Combustion Analyzers: Series 310, 320 & 330

Click on a category to view a selection of compatible accessories with the Testo 330-2G LL Kit #1 Combustion Analyzer and 12" Flue Gas Probe with Bluetooth.

Testo 0449 0047 Mini USB to Standard USB Converter 0449 0047
For use with the 330-1, 330-2, and 335.




Testo 0600 3692 Ambient Air Probe 0600 3692
For separate ambient air temperature measurements.




Testo 0600 9797 Combustion Air Temperature Probe, 2.4" Immersion 0600 9797
For use with the 330-1 LL, 330-2 LL, and 327-2.




Testo 0554 0549 Universal Infrared Printer 0554 0549
Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0604 0194 Surface Probe, Type K TC 0604 0194
Quick-action plug-in probe.




Testo 0554 2151 Nitric Oxide Upgrade Module for 330-1G LL 0554 2151
Sensor Upgrade Module for 330-1G LL Combustion Alalyzers.




Testo 0632 1240 Ambient Carbon Dioxide Probe 0632 1240
CO2 probe measures indoor air quality and monitors the workplace. For use with the 950, 650, 400, 320, and 330.




Testo 0632 3330 Gas Leak Detection Probe for the 320 and 330 0632 3330
Extend the functionality of the 330 or 320 to detect low-level flammable gas leaks.




Testo 0632 3331 Ambient Carbon Monoxide Probe 0632 3331
For use with the 950, 650, 400, 320, and 330.




Testo 0554 1202 Flue Gas Hose Extension, 9' 0554 1202
Extensions can be used toghether with the standard hose for a maximum length of 25 feet.




Testo 0554 3332 EasyHeat Software (interface cable not included) 0554 3332
Set up, download and analyze data. For Flue Gas Analyzers.




Testo 0554 3385 Spare Particle Filter for Modular Flue Gas Probes (Pk/10) 0554 3385
Disk type filter that fits standard Modular Flue Gas probe handles. Package of 10.
