Testo 330-2G LX Kit #1 Combustion Analyzer and 12" Flue Gas Probe

Model: 330-2G LX | Order No: 0563 3372 71 | UPC: 4029547015595

Testo 330-2G LX Kit #1 Combustion Analyzer and 12" Flue Gas Probe-


Downloads: datasheet manual

Testo 330-2G LX Kit #1 Combustion Analyzer and 12" Flue Gas Probe

Model: 330-2G LX | Order No: 0563 3372 71

Commercial/Industrial Combustion kit measures O2, CO (to 30,000 ppm), temperature, pressure and other required combustion efficiency parameters.

Commercial/Industrial Combustion kit measures O2, CO (to 30,000 ppm), temperature, pressure and other required combustion efficiency parameters.

This product has been discontinued. Click here for the replacement model(s).


Testo 330-2G LX Offers

For commercial and industrial flue gas applications, this analyzer is properly outfitted with high range CO, sensor protection, large memory for maintaining service records, on-site printing capability, and if needed it is easily field upgraded with a plug and play NO sensor. The interface for burner control modules makes this a versatile flue gas tuning and testing tool. It also has the longest sensor warranty on the market. Rugged construction and high quality sensors provide years of reliability and very low cost-of-ownership.

Features

  • Built-on dilution systems allows for CO readings to 30,000 ppm
  • On board self-diagnostics and service tracking
  • Over-range sensor protection
  • Efficient "in the green" or "in the red" display box results allow for fine tuning the combustion process
  • Optional probes for hi-temp, gas leak, ambient CO and more
  • Memory up to 500,000 readings
  • Calculates CO2, efficiency, excess air, CO air free

Applications

  • Commercial
  • Residential

Testo 330-2G LX Specifications

Temperature
Measuring Range 40 to 2192°F (-40 to 1200°C)
Accuracy ±1°F (32 to 212.0°F) (±0.5°C (0 to 100.0°C)
Remaining Range: ±0.5 % of m.v.
Resolution 0.1°F (-40 to 1832°F) (0.1°C [-40 to 999.9°C])
1.0°F (>1832°F) (1°C [>1000°C])
Velocity/Volume Flow
Measuring Range 29.53 to 591 fpm (0.15 to 3 m/s)
Resolution 0.1 fpm (0.1 m/s)
General Specifications
Display 240 x 320 pixels
Storage Temperature -4 to 122°F (-20 to 50°C)
Operating Temperature 23 to 113°F (-5 to 45°C)
Dimensions 11 x 4 x 3" (270 x 90 x 65 mm)
Weight Without rechargeable battery: 21 oz. (600 g)
Click here for complete specifications on the Testo 330-2G LX

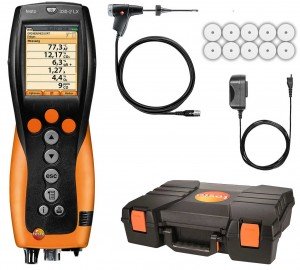

What's included with the Testo 330-2G LX

  • Combustion Analyzer
  • Certificate of Conformity
  • 12" Flue Gas Probe with 7' Hose
  • 10 x Particulate Filters
  • AC Power Adapter
  • Rechargeable Battery
  • Case

Testo Combustion Analyzers: Series 310, 320 & 330

Click on a category to view a selection of compatible accessories with the Testo 330-2G LX Kit #1 Combustion Analyzer and 12" Flue Gas Probe.

Testo 0449 0047 Mini USB to Standard USB Converter 0449 0047
For use with the 330-1, 330-2, and 335.




Testo 0554 8764 13" Probe Shaft 0554 8764
For use with the Testo 330.




Testo 0554 9764 Flexible Probe Without Handle 0554 9764
180°C maximum temperature.




Testo 0554 0116 Adhesive Storage Pockets 0554 0116
For use with the Testo 330.




Testo 0430 0143 Probe Connection Cable, 5 Ft 0430 0143
For use with Testo 330 units.




Testo 0554 0307 Standard Smoke Test Kit 0554 0307
For measuring soot in flue gas and for use with flue gas analysers. Includes scale, filter paper and lubricant.




Testo 0600 3692 Ambient Air Probe 0600 3692
For separate ambient air temperature measurements.




Testo 0600 9797 Combustion Air Temperature Probe, 2.4" Immersion 0600 9797
For use with the 330-1 LL, 330-2 LL, and 327-2.




Testo 0604 0194 Surface Probe, Type K TC 0604 0194
Quick-action plug-in probe.




Testo 0554 2151 Nitric Oxide Upgrade Module for 330-1G LL 0554 2151
Sensor Upgrade Module for 330-1G LL Combustion Alalyzers.




Testo 0632 3331 Ambient Carbon Monoxide Probe 0632 3331
For use with the 950, 650, 400, 320, and 330.




Testo 0632 3330 Gas Leak Detection Probe for the 320 and 330 0632 3330
Extend the functionality of the 330 or 320 to detect low-level flammable gas leaks.




Testo 0632 1240 Ambient Carbon Dioxide Probe 0632 1240
CO2 probe measures indoor air quality and monitors the workplace. For use with the 950, 650, 400, 320, and 330.




Testo 0554 1202 Flue Gas Hose Extension, 9' 0554 1202
Extensions can be used toghether with the standard hose for a maximum length of 25 feet.




Testo 0554 3332 EasyHeat Software (interface cable not included) 0554 3332
Set up, download and analyze data. For Flue Gas Analyzers.




Testo 0554 3385 Spare Particle Filter for Modular Flue Gas Probes (Pk/10) 0554 3385
Disk type filter that fits standard Modular Flue Gas probe handles. Package of 10.
