Testo 330-1G LL Kit #2 Combustion Analyzer with Probes and Printer

Model: 330-1G LX | Order No: 0563 3371 75

Downloads: datasheet manual

Testo 330-1G LL Kit #2 Combustion Analyzer with Probes and Printer

Model: 330-1G LX | Order No: 0563 3371 75

Combines field-replaceable, pre-calibrated sensor technology and a high level of safety for a long product life span and easy handling. Includes IR Printer.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Testo 300 Pro Commercial Combustion Analyzer Kit with Bluetooth and printer, O₂, 0 to 4000 ppm CO

Model: 300 LL | Order No: 0564 3004 93

Featuring stored, intuitive menus for all relevant measurements, this combustion analyzer is fully operated via the large 5" (12.7 cm) touch display, which is scratch-resistant and embedded in a robust housing. In addition, it comes with a printer and has a measuring range of 0 to 21 volume % for O₂ and 0 to 4000 ppm for CO.

Learn More

Recommended Accessories

Testo 0554 1096 Power Supply/Recharger, 100-240 V AC / 6.3 V DC

0554 1096

Testo 0449 0047 Mini USB to Standard USB Converter

0449 0047

Testo 0600 3692 Ambient Air Probe

0600 3692

Testo 0554 2151 Nitric Oxide Upgrade Module for 330-1G LL

0554 2151

Testo 0554 3385 Spare Particle Filter for Modular Flue Gas Probes (Pk/10)

0554 3385

Testo 330-1G LX Offers

This combustion analyzer kit with printer has easy to read graphical curves, easy to understand symbols, and a clear color display. The pre-calibrated sensors allow you to begin your measurements without wasting any time.

Features

Graphical readouts display either "in the green" or "in the red" which allows for fine tuning to ensure that adjustments can be made for optimal efficiency
Memory up to 500,000 readings
Long lasting, user-changeable, pre-calibrated sensors that are easily replaceable
Quick and accurate measurements of O₂, CO (up to 30,000 ppm with Standard Dilution System), °F, pressure, efficiency, and excess air

Applications

Commercial

Testo 330-1G LX Specifications

Temperature
Measuring Range	40 to 2192°F (-40 to 1200°C)
Accuracy	±1°F (32 to 212.0°F) (±0.5°C [0 to 100.0°C]) Remaining Range: ±0.5% of mv
Resolution	0.1°F (-40 to 1831.8°F) (0.1°C [-40 to 999.9°C]) 1.0°F (>1832°F) (1°C [>1000°C])
Velocity/Volume Flow
Measuring Range	29.53 to 591 fpm (0.15 to 3 m/s)
Resolution	0.1 fpm (0.1 m/s)
General Specifications
Display	240 x 320 pixels
Storage Temperature	-4 to 122°F (-20 to 50°C)
Operating Temperature	23 to 113°F (-5 to 45°C)
Dimensions	11 x 4 x 3" (270 x 90 x 65 mm)
Weight	Without rechargeable battery: 21 oz. (600 g)

Click here for complete specifications on the Testo 330-1G LX

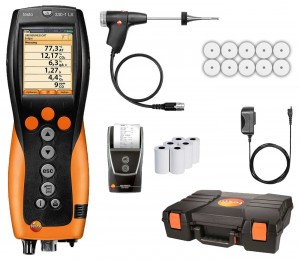

What's included with the Testo 330-1G LX

Combustion Analyzer
Certificate of Conformity
Sensors (O₂ & CO)
IrDA Printer
AC Power Adapter
12" Flue Gas Probe with 7' Hose
6 x Additional Rolls of Thermal Paper
10 x Particulate Filters
Rechargeable Li-Ion Battery
Case

Testo Combustion Analyzers: Series 310, 320 & 330

datasheet for the Testo 330-1G LL Kit #2 Combustion Analyzer with Probes and Printer manual for the Testo 330-1G LL Kit #2 Combustion Analyzer with Probes and Printer

Click on a category to view a selection of compatible accessories with the Testo 330-1G LL Kit #2 Combustion Analyzer with Probes and Printer.

Power Supplies

Testo 0554 1096 Power Supply/Recharger, 100-240 V AC / 6.3 V DC 0554 1096

For use as the main power source or to charge the batteries within the unit. Includes four (4) switchable plug adapters.

Probes

Testo 0554 8764 13" Probe Shaft 0554 8764

For use with the Testo 330.

Testo 0554 9764 Flexible Probe Without Handle 0554 9764

180°C maximum temperature.

Storage

Testo 0554 0116 Adhesive Storage Pockets 0554 0116

For use with the Testo 330.

USB Cables

Testo 0449 0047 Mini USB to Standard USB Converter 0449 0047

For use with the 330-1, 330-2, and 335.

Ambient Air Probes

Testo 0600 3692 Ambient Air Probe 0600 3692

For separate ambient air temperature measurements.

Combustion Air Temperature Probe

Testo 0600 9797 Combustion Air Temperature Probe, 2.4" Immersion 0600 9797

For use with the 330-1 LL, 330-2 LL, and 327-2.

Testo 0600 9787 Combustion Air Temperature Probe, 7.5" Immersion 0600 9787

For use with the 330-1 LL, 330-2 LL, and 327-2.

Communications

Testo 0554 0549 Universal Infrared Printer 0554 0549

Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.

Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568

For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.

Flue Gas Accessories

Testo 0554 0307 Standard Smoke Test Kit 0554 0307

For measuring soot in flue gas and for use with flue gas analysers. Includes scale, filter paper and lubricant.

Flue Gas Probes

Testo 0600 9764 Bendable Flue Gas Probe, 330mm 0600 9764

Bending radius of 90 degrees for difficult-to-access measurements points. 2.2m Hose and Particle Filter included.

Food Temperature Probes

Testo 0604 0194 Surface Probe, Type K TC 0604 0194

Quick-action plug-in probe.

Gas Detection Accessories

Testo 0554 2151 Nitric Oxide Upgrade Module for 330-1G LL 0554 2151

Sensor Upgrade Module for 330-1G LL Combustion Alalyzers.

Gas Detection Probes

Testo 0632 3330 Gas Leak Detection Probe for the 320 and 330 0632 3330

Extend the functionality of the 330 or 320 to detect low-level flammable gas leaks.

Testo 0632 3331 Ambient Carbon Monoxide Probe 0632 3331

For use with the 950, 650, 400, 320, and 330.

Hose Extensions

Testo 0554 1202 Flue Gas Hose Extension, 9' 0554 1202

Extensions can be used toghether with the standard hose for a maximum length of 25 feet.

Spares

Testo 0554 3385 Spare Particle Filter for Modular Flue Gas Probes (Pk/10) 0554 3385

Disk type filter that fits standard Modular Flue Gas probe handles. Package of 10.

Testo 0554 3381 Spare Particle Filter (Pk/20) 0554 3381

Filter set for measuring box and gas cooler.

Ask a question about Testo 330-1G LL Kit #2 Combustion Analyzer with Probes and Printer

Customer Reviews for the Testo 330-1G LX

Description ➕➖

Testo 330-1G LX Offers

Features

Graphical readouts display either "in the green" or "in the red" which allows for fine tuning to ensure that adjustments can be made for optimal efficiency
Memory up to 500,000 readings
Long lasting, user-changeable, pre-calibrated sensors that are easily replaceable
Quick and accurate measurements of O₂, CO (up to 30,000 ppm with Standard Dilution System), °F, pressure, efficiency, and excess air

Applications

Commercial

Specifications ➕➖

Testo 330-1G LX Specifications

Temperature
Measuring Range	40 to 2192°F (-40 to 1200°C)
Accuracy	±1°F (32 to 212.0°F) (±0.5°C [0 to 100.0°C]) Remaining Range: ±0.5% of mv
Resolution	0.1°F (-40 to 1831.8°F) (0.1°C [-40 to 999.9°C]) 1.0°F (>1832°F) (1°C [>1000°C])
Velocity/Volume Flow
Measuring Range	29.53 to 591 fpm (0.15 to 3 m/s)
Resolution	0.1 fpm (0.1 m/s)
General Specifications
Display	240 x 320 pixels
Storage Temperature	-4 to 122°F (-20 to 50°C)
Operating Temperature	23 to 113°F (-5 to 45°C)
Dimensions	11 x 4 x 3" (270 x 90 x 65 mm)
Weight	Without rechargeable battery: 21 oz. (600 g)
