Testo 330-1G LX Kit #1 Combustion Analyzer with Probe and Spare Filter

Model: 330-1G LX | Order No: 0563 3371 70

Downloads: datasheet manual

Testo 330-1G LX Kit #1 Combustion Analyzer with Probe and Spare Filter

Model: 330-1G LX | Order No: 0563 3371 70

Features a full color graphic display, which allows you to visualize flue gas measurement data clearly. With field replaceable, pre-calibrated sensors, this combustiona analyzer ensures a long product life, allowing for many flue gas testing options.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Testo 300 Pro Commercial Combustion Analyzer Kit with Bluetooth, O₂, 0 to 4000 ppm CO

Model: 300 LL | Order No: 0564 3004 92

Compact and scratch-resistant, this combustion analyzer is fully operated via the large 5" (12.7 cm) touch display embedded in a robust plastic housing that reliably stands up to the rigors of everyday use. In addition, it has a measuring range of 0 to 21 volume % for O₂ and 0 to 4000 ppm for CO, and NO sensor retrofittable.

Learn More

Recommended Accessories

Testo 0554 1096 Power Supply/Recharger, 100-240 V AC / 6.3 V DC

0554 1096

Testo 0449 0047 Mini USB to Standard USB Converter

0449 0047

Testo 0600 3692 Ambient Air Probe

0600 3692

Testo 0554 2151 Nitric Oxide Upgrade Module for 330-1G LL

0554 2151

Testo 0554 3385 Spare Particle Filter for Modular Flue Gas Probes (Pk/10)

0554 3385

Testo 330-1G LX Offers

This flue gas analysis kit allows you to carry out your service and maintenance inspections quickly and efficiently. The high-quality combustion analyzer combines sophisticated sensor technology and a high level of safety with a long product life span and easy handling.

Features

Two high quality sensors for O₂ and CO
Big savings with Long Life (LL) sensors (cells are typically replaced once every six years)
High resolution graphic color display
Integrated sensor monitoring, traffic light color coding system and at-a-glance status
User-changeable sensors, easy to replace sensor filter
Logger function for up to two hours of continuous measurements
Large memory for up to 500,000 readings
Integrated magnets that stick to almost any metal object for easy measuring
Easily emptied condensate collection tank
4-year warranty without service contract

Applications

Commercial

Testo 330-1G LX Specifications

Temperature
Measuring Range	40 to 2192°F (-40 to 1200°C)
Accuracy	±0.9°F (32 to 212.0°F) (±0.5°C [0 to 100.0°C]) Remaining Range: ±0.5% of mv
Resolution	0.1°F (-40 to 1831.8°F) (0.1°C [-40 to 999.9°C]) 1.0°F (>1832°F) (1°C [>1000°C])
Pressure Measurement
Measuring Range	0 to 120 inH₂O (0 to 300 hPa)
Accuracy	±0.2 inH₂O (0.0 to 20.0 inH₂O) (±0.5 hPa [0.0 to 50.0 hPa]) ±1% of mv (50.1 to 40.0 inH₂O) (±1% of mv [50.1 to 100.0 hPa]) Remaining Range: ±1.5% of mv
Resolution	0.1 inH₂O (0.1 hPa)
General Specifications
Display	240 x 320 pixels
Storage Temperature	-4 to 122°F (-20 to 50°C)
Operating Temperature	23 to 113°F (-5 to 45°C)
Dimensions	11 x 4 x 3" (270 x 90 x 65 mm)
Weight	Without rechargeable battery: 21 oz. (600 g)

Click here for complete specifications on the Testo 330-1G LX

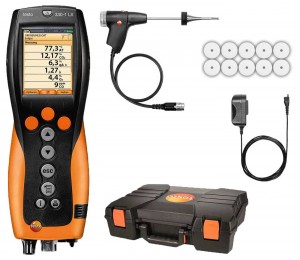

What's included with the Testo 330-1G LX

Combustion Analyzer
Certificate of Conformity
12" Flue Gas Probe with 7' Hose
10 x Particulate Filters
AC Power Adapter
Rechargeable Li-Ion Battery
Case

Testo Combustion Analyzers: Series 310, 320 & 330

datasheet for the Testo 330-1G LX Kit #1 Combustion Analyzer with Probe and Spare Filter manual for the Testo 330-1G LX Kit #1 Combustion Analyzer with Probe and Spare Filter

Click on a category to view a selection of compatible accessories with the Testo 330-1G LX Kit #1 Combustion Analyzer with Probe and Spare Filter.

Power Supplies

Testo 0554 1096 Power Supply/Recharger, 100-240 V AC / 6.3 V DC 0554 1096

For use as the main power source or to charge the batteries within the unit. Includes four (4) switchable plug adapters.

Probes

Testo 0554 8764 13" Probe Shaft 0554 8764

For use with the Testo 330.

Testo 0554 9764 Flexible Probe Without Handle 0554 9764

180°C maximum temperature.

USB Cables

Testo 0449 0047 Mini USB to Standard USB Converter 0449 0047

For use with the 330-1, 330-2, and 335.

Ambient Air Probes

Testo 0600 3692 Ambient Air Probe 0600 3692

For separate ambient air temperature measurements.

Combustion Air Temperature Probe

Testo 0600 9797 Combustion Air Temperature Probe, 2.4" Immersion 0600 9797

For use with the 330-1 LL, 330-2 LL, and 327-2.

Testo 0600 9787 Combustion Air Temperature Probe, 7.5" Immersion 0600 9787

For use with the 330-1 LL, 330-2 LL, and 327-2.

Communications

Testo 0554 0549 Universal Infrared Printer 0554 0549

Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.

Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568

For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.

Flue Gas Accessories

Testo 0554 0307 Standard Smoke Test Kit 0554 0307

For measuring soot in flue gas and for use with flue gas analysers. Includes scale, filter paper and lubricant.

Flue Gas Probes

Testo 0600 9764 Bendable Flue Gas Probe, 330mm 0600 9764

Bending radius of 90 degrees for difficult-to-access measurements points. 2.2m Hose and Particle Filter included.

Food Temperature Probes

Testo 0604 0194 Surface Probe, Type K TC 0604 0194

Quick-action plug-in probe.

Gas Detection Accessories

Testo 0554 2151 Nitric Oxide Upgrade Module for 330-1G LL 0554 2151

Sensor Upgrade Module for 330-1G LL Combustion Alalyzers.

Gas Detection Probes

Testo 0632 3331 Ambient Carbon Monoxide Probe 0632 3331

For use with the 950, 650, 400, 320, and 330.

Testo 0632 3330 Gas Leak Detection Probe for the 320 and 330 0632 3330

Extend the functionality of the 330 or 320 to detect low-level flammable gas leaks.

Hose Extensions

Testo 0554 1202 Flue Gas Hose Extension, 9' 0554 1202

Extensions can be used toghether with the standard hose for a maximum length of 25 feet.

Spares

Testo 0554 3381 Spare Particle Filter (Pk/20) 0554 3381

Filter set for measuring box and gas cooler.

Testo 0554 3385 Spare Particle Filter for Modular Flue Gas Probes (Pk/10) 0554 3385

Disk type filter that fits standard Modular Flue Gas probe handles. Package of 10.

Ask a question about Testo 330-1G LX Kit #1 Combustion Analyzer with Probe and Spare Filter

Customer Reviews for the Testo 330-1G LX

Description ➕➖

Testo 330-1G LX Offers

Features

Two high quality sensors for O₂ and CO
Big savings with Long Life (LL) sensors (cells are typically replaced once every six years)
High resolution graphic color display
Integrated sensor monitoring, traffic light color coding system and at-a-glance status
User-changeable sensors, easy to replace sensor filter
Logger function for up to two hours of continuous measurements
Large memory for up to 500,000 readings
Integrated magnets that stick to almost any metal object for easy measuring
Easily emptied condensate collection tank
4-year warranty without service contract

Applications

Commercial

Specifications ➕➖

Testo 330-1G LX Specifications

Temperature
Measuring Range	40 to 2192°F (-40 to 1200°C)
Accuracy	±0.9°F (32 to 212.0°F) (±0.5°C [0 to 100.0°C]) Remaining Range: ±0.5% of mv
Resolution	0.1°F (-40 to 1831.8°F) (0.1°C [-40 to 999.9°C]) 1.0°F (>1832°F) (1°C [>1000°C])
Pressure Measurement
Measuring Range	0 to 120 inH₂O (0 to 300 hPa)
Accuracy	±0.2 inH₂O (0.0 to 20.0 inH₂O) (±0.5 hPa [0.0 to 50.0 hPa]) ±1% of mv (50.1 to 40.0 inH₂O) (±1% of mv [50.1 to 100.0 hPa]) Remaining Range: ±1.5% of mv
Resolution	0.1 inH₂O (0.1 hPa)
General Specifications
Display	240 x 320 pixels
Storage Temperature	-4 to 122°F (-20 to 50°C)
Operating Temperature	23 to 113°F (-5 to 45°C)
Dimensions	11 x 4 x 3" (270 x 90 x 65 mm)
Weight	Without rechargeable battery: 21 oz. (600 g)
