Testo 320 LX Combustion Analyzer Kit with Printer

Model: 320 LX | Order No: 0563 3220 71 | UPC: 4029547012020

Testo 320 LX Combustion Analyzer Kit with Printer-


Downloads: datasheet manual

Testo 320 LX Combustion Analyzer Kit with Printer

Model: 320 LX | Order No: 0563 3220 71

Combustion analyzer for residential and commercial combustion system analysis. Assures correct combustion efficiency and CO safety analysis the first time and every time. Also features Bluetooth capability and a printer.

Combustion analyzer for residential and commercial combustion system analysis. Assures correct combustion efficiency and CO safety analysis the first time and every time. Also features Bluetooth capability and a printer.

This product has been discontinued. Click here for the replacement model(s).


Testo 320 LX Offers

Offering a comprehensive combustion system analysis, this analyzer is designed for the job site and for the contractor who expects more. Use this for basic testing and tuning of all types of boilers, heaters or furnaces and also to set up and commission more complex multi-stage or modulating heating systems, for accurate combustion efficiency analysis.

Innovative features like the flue gas matrix will graphically display the combustion characteristics, which is an easy way to show if the heating system is running efficiently. Additionally, this analyzer makes the job easier by displaying from two to eight user-defined parameters simultaneously. Eliminates the guess work and provides accurate combustion system analysis.

Measures

  • O2, CO (with built-in NOx filter), CO2
  • Combustion calculations
  • Draft
  • Pressure
  • Flue gas matrix
  • User-changeable, pre-calibrated sensors that are easy to replace

Applications

Use for the testing and tuning of:

  • Boilers
  • Heaters
  • Furnaces
  • HVAC's

Download the App

Testo 320 LX Specifications

Temperature
Measuring Range -40 to 2192°F (-40 to 1200°C)
Accuracy ±0.5°F (32 to 212°F)
Remaining Range: ±0.5% of m.v.
Resolution 0.1°F (-40 to 1831.8°F) (0.1°C [-40 to 999.9°C])
1.0 °F (>1832°F) (1°C (>1000°C)
General Specifications
Storage Temperature -4 to 122°F (-20 to 50°C)
Operating Temperature 23 to 113°F (-5 to 45°C)
Maximum 500 Measurement Values
Display Color graphic display with 240 x 320 pixels
Dimensions 9 x 3 x 3" (240 x 85 x 65 mm)
Weight 20 oz (573 g)
Click here for complete specifications on the Testo 320 LX

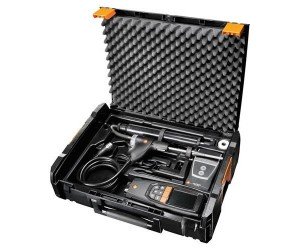

What's included with the Testo 320 LX

  • Combustion Analyzer
  • Certificate of Conformity
  • IRDA Wireless Printer
  • AC Adapter Adapter with USB Recharging
  • 10 x Particle Filters
  • Rugged Case
  • Case

Testo 320 Residential and Commercial Combustion Analyzer

Testo Combustion Analyzers: Series 310, 320 & 330

Click on a category to view a selection of compatible accessories with the Testo 320 LX Combustion Analyzer Kit with Printer.

Testo 0600 9797 Combustion Air Temperature Probe, 2.4" Immersion 0600 9797
For use with the 330-1 LL, 330-2 LL, and 327-2.




Testo 0600 9787 Combustion Air Temperature Probe, 7.5" Immersion 0600 9787
For use with the 330-1 LL, 330-2 LL, and 327-2.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0554 0307 Standard Smoke Test Kit 0554 0307
For measuring soot in flue gas and for use with flue gas analysers. Includes scale, filter paper and lubricant.




Testo 0632 1240 Ambient Carbon Dioxide Probe 0632 1240
CO2 probe measures indoor air quality and monitors the workplace. For use with the 950, 650, 400, 320, and 330.




Testo 0632 3330 Gas Leak Detection Probe for the 320 and 330 0632 3330
Extend the functionality of the 330 or 320 to detect low-level flammable gas leaks.




Testo 0632 3331 Ambient Carbon Monoxide Probe 0632 3331
For use with the 950, 650, 400, 320, and 330.




Testo 0554 1202 Flue Gas Hose Extension, 9' 0554 1202
Extensions can be used toghether with the standard hose for a maximum length of 25 feet.




Testo 0554 3332 EasyHeat Software (interface cable not included) 0554 3332
Set up, download and analyze data. For Flue Gas Analyzers.




Testo 0554 0040 Spare Particle Filter for CO Flue Gas Probes (Pk/10) 0554 0040
Replacement particle filter. Pack of 10.
