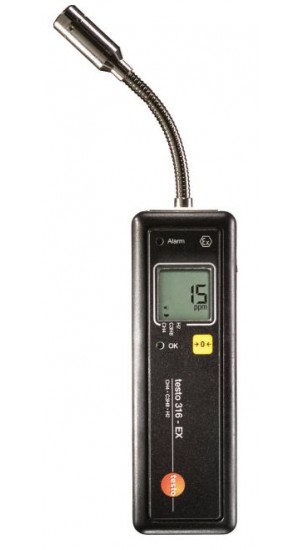

Testo 316-EX Gas Leak Detector

Model: 316-EX | Order No: 0632 0336

Testo 316-EX Gas Leak Detector-


Downloads: datasheet manual

Testo 316-EX Gas Leak Detector

Model: 316-EX | Order No: 0632 0336

Proof of gas and leakage localization on gas pipes and installations in indoor and outdoor areas. Multi-range gas detector with Ex protection for the gases methane, propane and hydrogen.

Proof of gas and leakage localization on gas pipes and installations in indoor and outdoor areas. Multi-range gas detector with Ex protection for the gases methane, propane and hydrogen.

Sale Price $633.25 USD
Regular Price $745.00 USD
Availability 3 to 4 Weeks
Quantity

Testo 316-EX Offers

Features

  • Gas concentrations are measured by the semi-conductor sensor in the ppm range and are shown in the display with a resolution of 1ppm
  • 1 ppm resolution on display
  • Indicator suppression for comfortable locating of the leak
  • 3 different types of gas can be detected: methane, propane and hydrogen
  • Flexible probe for inaccessible areas
  • ppm and vol.% display
  • ATEX approval (94/9/EC)

Testo 316-EX Specifications

Operating humidity 20 to 80 %rH (not condensed)
Reaction time 14 sec t₉₀
Dimensions 5 x 2 x 1 in. / 135 x 45 x 25 mm
Operating temperature 14° to 104 °F / -10 to +40 °C
Protection class IP54
EU-/EG-guidelines 94/9/EG (ATEX); EU-guideline 2014/30/EU
Warranty 2 years on the instrument; 1 year on sensor
Battery type 2 AA batteries
Battery life Up to 10 h
Battery feaute Type permitted for use in areas with danger of explosion: Camelion Plus Alkaline LR6 (see order data, order no. 0515 0316)
Storage temperature 14° to 122 °F / -10 to +50 °C
Weight Approx. 7 oz. / Approx. 200 g
Ex-protection II 2G EEx ib IIC T1 (Ex Zone 1)
Click here for complete specifications on the Testo 316-EX

What's included with the Testo 316-EX

  • Testo 316-2 Gas Leak Detector
  • Power adaptor
  • Earphones
