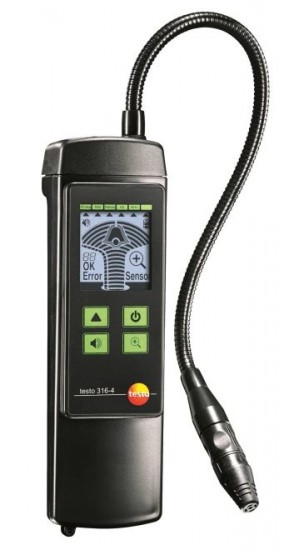

Testo 316-4 Leakage Detector for Refrigerants, 3g/a

Model: 316-4 | Order No: 0563 3164

Testo 316-4 Leakage Detector for Refrigerants, 3g/a-


Downloads: datasheet manual

Testo 316-4 Leakage Detector for Refrigerants, 3g/a

Model: 316-4 | Order No: 0563 3164

Everything you need for fast, reliable, professional leakage protection. This unit detects all common refrigerants, such as CFC, HFC, HCFC and H2 so you will be able to detect even the smallest of leaks.

Everything you need for fast, reliable, professional leakage protection. This unit detects all common refrigerants, such as CFC, HFC, HCFC and H2 so you will be able to detect even the smallest of leaks.

Sale Price $482.80 USD
Regular Price $568.00 USD
Availability 4 in Stock
Quantity

Add In-House Traceable Calibration to your 0563 3164

Add In-House Traceable Calibration to your 0563 3164


Testo 316-4 Offers

Leaks on a refrigeration system or heat pump have serious consequences. A leaking system no longer provides its required cooling capacity, and, in the worst case scenario, system components can be damaged, not to mention the environmental damage and costs incurred by your customer. You need fast, reliable measuring instruments in order to be able to detect even the smallest of leaks.

Features

  • Extremely high sensitivity of ˂3g/a enables detection of even the smallest leaks
  • Visual and acoustic alarm for optimum leakage detection
  • Permanent sensor check, ensuring that your work is both safe and fast
  • Earplug connection for safe leakage detection in loud environments
  • Fast, reliable leak detector for all common refrigerants
  • Sensor is permanently monitored, and displays malfunctions or contaminations on the screen
  • Use of test leaks is therefore no longer necessary
  • If dirty, the sensor can be easily cleaned, and is then ready for use again straight away
  • Flexible gooseneck
  • Drag pointer function indicates maximum leakages, making it easier to locate leaks
  • If a leak is found, the display changes from green to red
  • Audible signal also indicates that a leak has been detected

Further options for ammonia: for refrigeration systems that operate with ammonia, you can upgrade the Testo 316-4 leak detector (set 1) using the spare head for ammonia (NH3). Or, you can purchase the Testo 316-4 leak detector (set 2) specifically for ammonia.

Testo 316-4 Specifications

Operating humidity 20 to 80 %rH
Reaction time < 1 sec
Dimensions 8 x 2 x 2 in. / 190 x 57 x 42 mm
Operating temperature -4.0° to 122.0 °F / -20 to +50 °C
Leakage alarm optical and audible alarm
Length of gooseneck 14.6 in. / 370 mm
Start-up time <50 sec (0 ... +50 °C); <80 sec (-20 ... 0 °C)
Detectable R134a; R22; R404A; H2 and all common refrigerants such as CFC, HCFC, HFC NH₃ (separate sensor head)
Sensitivity 3 g/a
Battery type 1 battery block (6 cell NiMh)
Battery life 6 h (Continuous operation)
Storage temperature -13.0° to 158.0 °F / -25 to +70 °C
Weight 12 oz. / 348 g
Standards EN 14624:2012
Warranty 2 years
Click here for complete specifications on the Testo 316-4

What's included with the Testo 316-4

  • Testo 316-4 Leakage Detector
  • Refrigerant sensor head
  • Earphones
  • Case

Customer Reviews for the Testo 316-4

Ask a question about Testo 316-4 Leakage Detector for Refrigerants, 3g/a

Testo 316-4 Offers

Leaks on a refrigeration system or heat pump have serious consequences. A leaking system no longer provides its required cooling capacity, and, in the worst case scenario, system components can be damaged, not to mention the environmental damage and costs incurred by your customer. You need fast, reliable measuring instruments in order to be able to detect even the smallest of leaks.

Features

  • Extremely high sensitivity of ˂3g/a enables detection of even the smallest leaks
  • Visual and acoustic alarm for optimum leakage detection
  • Permanent sensor check, ensuring that your work is both safe and fast
  • Earplug connection for safe leakage detection in loud environments
  • Fast, reliable leak detector for all common refrigerants
  • Sensor is permanently monitored, and displays malfunctions or contaminations on the screen
  • Use of test leaks is therefore no longer necessary
  • If dirty, the sensor can be easily cleaned, and is then ready for use again straight away
  • Flexible gooseneck
  • Drag pointer function indicates maximum leakages, making it easier to locate leaks
  • If a leak is found, the display changes from green to red
  • Audible signal also indicates that a leak has been detected

Further options for ammonia: for refrigeration systems that operate with ammonia, you can upgrade the Testo 316-4 leak detector (set 1) using the spare head for ammonia (NH3). Or, you can purchase the Testo 316-4 leak detector (set 2) specifically for ammonia.

Testo 316-4 Specifications

Operating humidity 20 to 80 %rH
Reaction time < 1 sec
Dimensions 8 x 2 x 2 in. / 190 x 57 x 42 mm
Operating temperature -4.0° to 122.0 °F / -20 to +50 °C
Leakage alarm optical and audible alarm
Length of gooseneck 14.6 in. / 370 mm
Start-up time <50 sec (0 ... +50 °C); <80 sec (-20 ... 0 °C)
Detectable R134a; R22; R404A; H2 and all common refrigerants such as CFC, HCFC, HFC NH₃ (separate sensor head)
Sensitivity 3 g/a
Battery type 1 battery block (6 cell NiMh)
Battery life 6 h (Continuous operation)
Storage temperature -13.0° to 158.0 °F / -25 to +70 °C
Weight 12 oz. / 348 g
Standards EN 14624:2012
Warranty 2 years
Click here for complete specifications on the Testo 316-4

What's included with the Testo 316-4

  • Testo 316-4 Leakage Detector
  • Refrigerant sensor head
  • Earphones
  • Case
