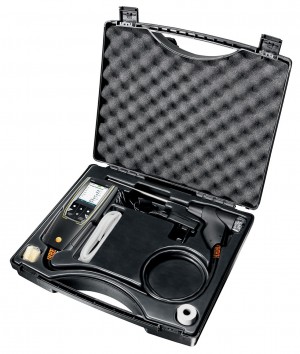

Ideally suited for basic measurements on heating systems, this analyzer combines simple functions with high accuracy. In addition, this kit includes a combustion analyzer, a rechargeable battery, a probe, a power supply, a cable, a hose, five particle filters, a USB-C cable, a case, a printer, and a certificate of conformity.
Ideally suited for basic measurements on heating systems, this analyzer combines simple functions with high accuracy. In addition, this kit includes a combustion analyzer, a rechargeable battery, a probe, a power supply, a cable, a hose, five particle filters, a USB-C cable, a case, a printer, and a certificate of conformity.
Simultaneous, individual measurement and display of all measurement parameters (O2, CO, CO2, flue gas, ambient temperature, CO environment, draught, and pressure) is simple with this combustion analyzer's easy and intuitive guidance menu. Long battery lifetimes of more than eight hours guarantee the analyzer is always ready. Furthermore, the analyzer is easily configurable via the Testo Smart App. A combination of easy handling and a compact design make this gas analyzer a robust tool for daily work, even when things get rough.
Specially developed for this combustion analyzer, the Bluetooth™ printer allows for clear on-site reporting as required. Through a simple connection to the Testo Smart App, print the current measurement value from any menu during or after the measurement. Moreover, this analyzer and printer combination makes simultaneous digital documentation, data transfer, and digital customer data management measurements possible.
Features
Applications
The Testo 310 II Combustion Analyzer Kit is your ultimate companion for comprehensive gas analysis, maintenance, and safety assurance. Whether you’re a seasoned HVAC professional or a facility manager, this cutting-edge tool is designed to streamline your workflow and enhance your peace of mind.
Gas Analysis Made Effortless:
Get precise measurement and analysis of combustion gases with unparalleled accuracy. From carbon monoxide to oxygen levels, you can trust the Testo 310 II to deliver reliable results, helping you optimize combustion efficiency and minimize emissions.
Efficient Maintenance:
Easily identify issues such as inefficient fuel combustion or blocked flues, allowing for prompt maintenance interventions. By catching problems early on, you can prevent costly repairs and ensure uninterrupted operation.
Enhanced Safety Measures:
This combustion analyzer kit is equipped with built-in safety features to safeguard both users and systems. From its robust construction to its automatic shutoff mechanism in case of hazardous conditions, this kit provides peace of mind in any environment.
Easy and intuitive menu guidance
O2, CO2, CO, hPA/InH2O, QA, and °F/°C measurements
Quick sensor response time for on-the-spot analysis
Comprehensive kit including probes and accessories for various applications
Data documented and sent digitally via the Testo Smart App
Compact and portable design for maximum versatility
Right residential combustion measurement every time
The Testo 310 sets a new standard in reliable combustion tuning with its rugged housing, simple design and advanced sensor technology. The easy-to-read backlit display shows more measurements which provides more complete picture of the combustion process. Simple top-of-display icons show you the current measurement functions. After only 30 seconds the 310 is ready to test.
Simple to use with reliable results
The testo 310 eliminates the need for look up charts and the purchase and disposal of expensive chemicals. The kink-resistant hose is integrated into the housing to eliminate leaks. The stainless steel probe and cone-stop is perfect for residential furnace, boiler and water heater applications. With five different fuels to select from, it provides the flexibility you need for your tuning opportunities.
Faster, productive - tune ups, maintenance, and more…
Whether you need to perform basic or more complex combustion tuning, perform maintenance or safety checks, or install new combustion units, the fully featured testo 310 delivers more combustion parameters. Use the 310 for accurate heating adjustment so you can get it right the first time - every time.
| Measurements | |
| Temperature (Flue Gas) | Measuring range: 32 to 752°F (0 to 400°C) Accuracy ±1 digit: ±1.8°F (32 to 212°F)/±1°C (0 to 100°C) ±1.5% of mv (>212°F)/±1.5% of mv (>100°C) Resolution: 0.1°F (0.1°C) Adjustment time t90: <50 seconds |
| Temperature (Ambient Temperature) | Measuring range: -4 to 212°F (-20 to 100°C) Accuracy ±1 digit: ±2°F (±1°C) Resolution: 0.1°F (0.1°C) Adjustment time t90: <50 seconds |
| Draft Measurement | Measuring range: -8 to 8 "H2O (-20 to 20 hPa) Accuracy ±1 digit: ±0.01 "H2O (-1.2 to 1.2 "H2O) ±0.03 hPa (-3 to 3 hPa) ±1.5% of mv (remaining range) Resolution: 0.01 "H2O (0.01 hPa) |
| Pressure Measurement | Measuring range: -16 to 16 "H2O (-40 to 40 hPa) Accuracy ±1 digit: ±0.2 "H2O (±0.5 hPa) Resolution: 0.1 "H2O (0.1 hPa) |
| O2 Measurement | Measuring range: 0 to 21% volume Accuracy ±1 digit: ±0.2% volume Resolution: 0.1% volume Adjustment time t90: 30 seconds |
| CO Measurement (without H2- compensation) | Measuring range: 0 to 4000 ppm Accuracy ±1 digit: ±20 ppm (0 to 400 ppm) ±5% of mv (401 to 2000 ppm) ±10% of mv (2001 to 4000 ppm) Resolution: 1 ppm Adjustment time t90: 60 seconds |
| Ambient CO Measurement | Measuring range: 0 to 4000 ppm Accuracy ±1 digit: ±20 ppm (0 to 400 ppm) ±5% of mv (401 to 2000 ppm) ±10% of mv (2001 to 4000 ppm) Resolution: 1 ppm Adjustment time t90: 60 seconds |
| Pollution Degree | PD2 |
| Efficiency Testing (ETA) | Measuring range: 0 to 120% Resolution: 0.1% ppm |
| Protection Class | IP40 |
| Flue Gas Loss | Measuring range: 0 to 99.9% Resolution: 0.1% |
| General Specifications | |
| Environmental Conditions | Storage temperature: -4 to 122°F (-20 to 50°C) Operating temperature: 23 to 113°F (-5 to 45°C) Humidity application range: 0 to 80% RH |
| Operating Altitude | ≤6562' (≤2000 m) |
| Memory | Reports saved within Testo Smart App |
| Display | Graphic seven-line display |
| Power Supply | Rating: 4 W Supply: 5 V/1 A, USB charger (connection via USB-C) Rechargeable battery: 1500 mAh Battery charge time: approximately eight hours |
| Operating Altitude | ≤6562' (≤2000 m) |
| Dimensions | 8 x 3 x 2" (201 x 83 x 44 mm) |
| Weight | Approximately 1.5 lbs (660 g) |
Click on a category to view a selection of compatible accessories with the Testo 310 II Combustion Analyzer Kit with printer, 32 to 752°F, 0 to 4000 ppm.
| Measurements | |
| Temperature (Flue Gas) | Measuring range: 32 to 752°F (0 to 400°C) Accuracy ±1 digit: ±1.8°F (32 to 212°F)/±1°C (0 to 100°C) ±1.5% of mv (>212°F)/±1.5% of mv (>100°C) Resolution: 0.1°F (0.1°C) Adjustment time t90: <50 seconds |
| Temperature (Ambient Temperature) | Measuring range: -4 to 212°F (-20 to 100°C) Accuracy ±1 digit: ±2°F (±1°C) Resolution: 0.1°F (0.1°C) Adjustment time t90: <50 seconds |
| Draft Measurement | Measuring range: -8 to 8 "H2O (-20 to 20 hPa) Accuracy ±1 digit: ±0.01 "H2O (-1.2 to 1.2 "H2O) ±0.03 hPa (-3 to 3 hPa) ±1.5% of mv (remaining range) Resolution: 0.01 "H2O (0.01 hPa) |
| Pressure Measurement | Measuring range: -16 to 16 "H2O (-40 to 40 hPa) Accuracy ±1 digit: ±0.2 "H2O (±0.5 hPa) Resolution: 0.1 "H2O (0.1 hPa) |
| O2 Measurement | Measuring range: 0 to 21% volume Accuracy ±1 digit: ±0.2% volume Resolution: 0.1% volume Adjustment time t90: 30 seconds |
| CO Measurement (without H2- compensation) | Measuring range: 0 to 4000 ppm Accuracy ±1 digit: ±20 ppm (0 to 400 ppm) ±5% of mv (401 to 2000 ppm) ±10% of mv (2001 to 4000 ppm) Resolution: 1 ppm Adjustment time t90: 60 seconds |
| Ambient CO Measurement | Measuring range: 0 to 4000 ppm Accuracy ±1 digit: ±20 ppm (0 to 400 ppm) ±5% of mv (401 to 2000 ppm) ±10% of mv (2001 to 4000 ppm) Resolution: 1 ppm Adjustment time t90: 60 seconds |
| Pollution Degree | PD2 |
| Efficiency Testing (ETA) | Measuring range: 0 to 120% Resolution: 0.1% ppm |
| Protection Class | IP40 |
| Flue Gas Loss | Measuring range: 0 to 99.9% Resolution: 0.1% |
| General Specifications | |
| Environmental Conditions | Storage temperature: -4 to 122°F (-20 to 50°C) Operating temperature: 23 to 113°F (-5 to 45°C) Humidity application range: 0 to 80% RH |
| Operating Altitude | ≤6562' (≤2000 m) |
| Memory | Reports saved within Testo Smart App |
| Display | Graphic seven-line display |
| Power Supply | Rating: 4 W Supply: 5 V/1 A, USB charger (connection via USB-C) Rechargeable battery: 1500 mAh Battery charge time: approximately eight hours |
| Operating Altitude | ≤6562' (≤2000 m) |
| Dimensions | 8 x 3 x 2" (201 x 83 x 44 mm) |
| Weight | Approximately 1.5 lbs (660 g) |
