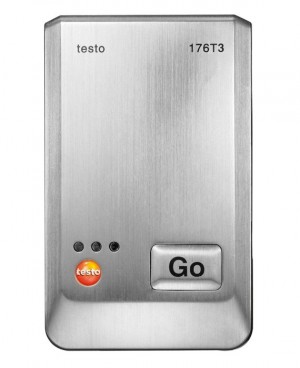

Testo 176-T3 4-Channel Metal Temperature Data Logger with 4 external TC

Model: 176 T3 | Order No: 0572 1763 | UPC: 4029547011146

Testo 176-T3 4-Channel Metal Temperature Data Logger with 4 external TC-


Downloads: datasheet

Testo 176-T3 4-Channel Metal Temperature Data Logger with 4 external TC

Model: 176 T3 | Order No: 0572 1763

External thermocouple parallel connections (Type J, K and T) allow for simultaneous temperature measurements using a wide variety of probes. Rugged metal housing protects against impact, dirt, and moisture. Capable of storing up to 2,000,000 temperature readings.

External thermocouple parallel connections (Type J, K and T) allow for simultaneous temperature measurements using a wide variety of probes. Rugged metal housing protects against impact, dirt, and moisture. Capable of storing up to 2,000,000 temperature readings.

Sale Price $483.65 USD
Regular Price $569.00 USD
Availability 1 Week
Quantity

Add In-House Traceable Calibration to your 0572 1763

Add In-House Traceable Calibration to your 0572 1763


Testo 176-T3 Offers

The Testo 176 T3 is the right data logger for parallel measurement and recording of temperature values at four different sites in industrial processes. Its metal housing will protect the data logger from potential damage. The 176 T3 can meet several requirements through its range of connectable therocouple probes (Type K, Type T, Type J).

Features

  • Memory large enough to hold two million measurement values. Large, easy-to-read display.
  • Up to eight years of battery life at 15 minute measurement rate.
  • Standard battery (AA) replaceable by user
  • Please note that a USB cable is required for programming and reading out the logger. This is not included in delivery and must be ordered separately if required (order no. 0449 0047).

Testo 176-T3 Technical Data

Memory 2,000,000 values
Storage temperature -40 to +85 °C
Operating temperature -20 to +70 °C
Dimensions 103 x 63 x 33 mm
Type T
Measuring range -200 to +400 °C
Accuracy ±1 % of rdg. (-200 to -100.1 °C)
±0.3 °C (-100 to +70 °C)
±0.5 % of rdg. (+70.1 to +1000 °C)
Resolution 0.1 °C
Typ J (FeCuNi)
Measuring range -100 to +750 °C
Accuracy ±1 % of rdg. (-200 to -100.1 °C)
±0.3 °C (-100 to +70 °C)
±0.5 % of rdg. (+70.1 to +1000 °C)
Resolution 0.1 °C
Type K
Measuring range -195 to +1000 °C
Accuracy ±1 % of rdg. (-200 to -100.1 °C)
±0.3 °C (-100 to +70 °C)
±0.5 % of rdg. (+70.1 to +1000 °C)
Resolution 0.1 °C
Click here for complete specifications on the Testo 176 T3

What's included with the Testo 176 T3

  • Testo 176-T3 4-Channel Metal Temperature Data Logger with 4 external TC
  • Click on a category to view a selection of compatible accessories with the Testo 176-T3 4-Channel Metal Temperature Data Logger with 4 external TC.

    Testo 0602 1793 Air Probe, Type K TC 0602 1793
    Rugged air probe with 4ft cable. Useful for HVAC/R applications.




    Testo 0602 0646 Flexible Bead Tip Probe, 60", Type K TC, PTFE 0602 0646
    Thermocouple with T/C adapter and flexible teflon sheath. Class 2 accuracy.




    Testo 0602 0645 Flexible Bead Tip Probe, 60", Type K TC, Fiberglass 0602 0645
    Thermocouple with T/C adapter and fibre glass sheathing. Class 2 accuracy.




    Testo 0602 0644 Flexible Bead Tip Probe, 32", Type K TC 0602 0644
    Thermocouple with T/C adapter and fiber glass sheating. Class 2 accuracy.




    Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
    For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




    Testo 0602 2292 Waterproof Food Probe, SS, Type K TC 0602 2292
    TC type K stainless steel (IP65) waterproof food probe.




    Testo 0602 1293 Waterproof Immersion/Penetration Probe, Type K TC 0602 1293
    Useful for measuring inside of liquid wells, pipes, and the internal temperature of food.




    Testo 0602 0593 Waterproof Immersion Probe, Type K TC 0602 0593
    Efficient and fast-action. Includes a 1.2m cable and Type K mini plug connector.




    Testo 0602 0493 Flexible, Low-mass Immersion Probe, Type K TC 0602 0493
    Flexible, low-mass immersion measurement tip. Ideal for measurements in small volumes such as petri dishes or for surface measurements (e.g. attached with adhesive tape).




    Testo 0602 5792 Flexible Immersion Probe, 20", Type K TC 0602 5792
    20" flexible thermocouple probe.




    Testo 0602 4892 10N Magnetic Probe for High Temperatures, Type K TC 0602 4892
    Magnet has 10N (approx 2.2 lbs) of holding force on a ferrous metal. For High Temperature applications.




    Testo 0602 4792 20N Magnetic Probe, Type K TC 0602 4792
    Magnet has 20N (approx 4.5 lbs) of holding force on a ferrous metal.




    Testo 0602 4692 Pipe Clamp Probe, 1" max. dia., Type K TC 0602 4692
    Clamp probe for measurements on pipe diameters of 0.6 to 1". Measuring range to 266 °F short-term.




    Testo 0602 4592 Pipe Clamp Probe, 2.5" max. dia., Type K TC 0602 4592
    Pipe clamp probe for pipe diameters of 0.2 to 2.5", with replaceable measuring head. Measuring range to 536°F short-term.




    Testo 0628 0020 Pipe Wrap Probe w/ Velcro, 5" max. dia., Type K TC 0628 0020
    Pipe probe with Velcro. For 5" pipe diameters.




    Testo 0602 5793 Bendable Cryogenic Probe, 20", Type K TC 0602 5793
    For use with the 175 T3 Temperature Data Logger and 480V AC Meter.
