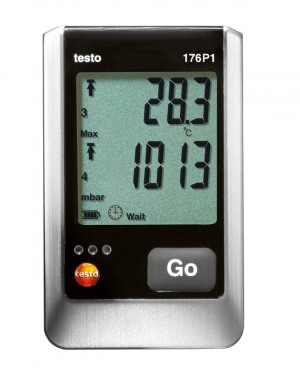

Testo 176-P1 5-Channel Pressure/Temperature/Humidity Data Logger with external NTC

Model: 176 P1 | Order No: 0572 1767 | UPC: 4029547011184

Testo 176-P1 5-Channel Pressure/Temperature/Humidity Data Logger with external NTC-


Downloads: datasheet

Testo 176-P1 5-Channel Pressure/Temperature/Humidity Data Logger with external NTC

Model: 176 P1 | Order No: 0572 1767

Five-channel data logger with internal absolute pressure sensor and external NTC/capacitive humidity sensor is ideal for the monitoring of pressures, temperatures, and humidity. Capable of storing 2,000,000 measurement values.

Five-channel data logger with internal absolute pressure sensor and external NTC/capacitive humidity sensor is ideal for the monitoring of pressures, temperatures, and humidity. Capable of storing 2,000,000 measurement values.

Sale Price $703.80 USD
Regular Price $828.00 USD
Availability 3 to 4 Weeks
Quantity

Add In-House Traceable Calibration to your 0572 1767

Add In-House Traceable Calibration to your 0572 1767


Testo 176-P1 Offers

The Testo 176 P1 is the right data logger when ambient conditions need to be accurately documeted. It has an internal absolute pressure sensor and external sensor connections (NTC/capacitive humidity sensor).

Features

  • Large memory for 2 million measurement values
  • Up to 3 years battery life
  • Standard battery (AA) replaceable by user
  • Large, easy-to-read display

Testo 176-P1 Technical Data

Memory 2,000,000 values
Storage temperature -40 to +85 °C
Operating temperature -20 to +70 °C
Dimensions 103 x 63 x 33 mm
NTC
Measuring range -20 to +70 °C
Accuracy ±0.2 °C (-20 to +70 °C)
±0.4 °C (remaining range)
Resolution 0.1 °C
Humidity
Measuring range 0 to 100 %RH
Resolution 0.1 %RH
Pressure Probe
Measuring range 600 to 1100 mbar
Accuracy ±3 mbar (0 to +50 °C)
Resolution 1 mbar
Click here for complete specifications on the Testo 176 P1

What's included with the Testo 176 P1

  • Testo 176-P1 5-Channel Pressure/Temperature/Humidity Data Logger with external NTC
  • Click on a category to view a selection of compatible accessories with the Testo 176-P1 5-Channel Pressure/Temperature/Humidity Data Logger with external NTC.

    Testo 0613 1712 Air Probe for Refrigeration System Analyzer 0613 1712
    Efficient and robust NTC air probe with 3.9' cable.




    Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
    For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




    Testo 0613 2211 Penetration Probe for Food, SS, NTC 0613 2211
    IP65 stainless steel features a PUR cable. Probe can be used up to 176°F. Includes a IP54 plug-in connection.




    Testo 0613 3311 Food Probe, SS, NTC 0613 3311
    IP67 stainless steel, with Teflon cable. Resistant to temperatures up to 392°F (short-term to 482°F).




    Testo 0613 3211 Frozen Food Probe w/ T-handle, NTC 0613 3211
    Corkscrew tip design for easier penitration on frozen food.




    Testo 0610 1725 Thermistor Immersion Probe, NTC 0610 1725
    For use with 175 T2, 176 H1, 176 H2, and 176 P1 Loggers.




    Testo 0613 1212 Waterproof Immersion/Penetration Probe, NTC 0613 1212
    Useful for measuring inside of liquid wells, pipes, and the internal temperature of food.




    Testo 0628 0006 Immersion/Penetration Probe, NTC w/ 5' Cable 0628 0006
    Accurate IP67 immersion/penetration probe.




    Testo 0613 2411 Penetration Probe w/ T-handle, NTC 0613 2411
    Robust food penetration probe with easy grip handle. Includes a IP65 waterproof reinforced cable (PUR) with reinforced protection from buckling.




    Testo 0613 4611 Pipe Wrap Probe for Refrigeration System Analyzer 0613 4611
    Pipe probe with Velcro. For 3" pipe diameters.




    Testo 0613 1912 Surface Probe for Refrigeration System Analyzer 0613 1912
    Waterproof NTC surface probe for measurements on flat surfaces.
