Testo 0699 7077/2 Air Flow Velocity Matrix Kit with 420, 14" x 14"

Model: 0699 7077/2

Testo 0699 7077/2 Air Flow Velocity Matrix Kit with 420, 14" x 14"-


Downloads: datasheet manual

Testo 0699 7077/2 Air Flow Velocity Matrix Kit with 420, 14" x 14"

Model: 0699 7077/2

Ideal measurement solution for determining flow velocity, volume flow on laminar flow supply air diffusers, and large surface areas. To be used in conjunction with the 420, 480 or 435-4 Differential Measuring Instrument. This kit includes the 420 measuring instrument.

Ideal measurement solution for determining flow velocity, volume flow on laminar flow supply air diffusers, and large surface areas. To be used in conjunction with the 420, 480 or 435-4 Differential Measuring Instrument. This kit includes the 420 measuring instrument.

Sale Price $1372.75 USD
Regular Price $1615.00 USD
Availability 7 to 8 Weeks
Quantity

Testo 0699 7077/2 Offers

Air Flow Velocity Matrix Features

  • Carry out accurate measurements on laminar flow supply air outlets
  • Ideal for large surface areas
  • The telescope makes it possible to carry out measurements on high ceiling diffusers
  • To be used in conjunction with the 420, 480 or 435-4 differential measuring instruments to calculate flow velocity and volume flow

420 Differential Pressure Measuring Instrument Features

  • Suitable for accurate differential pressure measurement up to 120 Pa
  • Save measurement data for analysis and documentation
  • You can use a Pitot tube and compatible connection hoses (both optional) to measure the flow velocity and volume flow in ventilation ducts
  • Timed and multi-point mean calculation, as well as the combination of the two
  • Simple input of the duct geometry, provide you with support for measurements in ducts
  • The automatic zeroing ensures higher accuracy for low pressures
  • All measuring values are easy to read on the large display which has an illumination function and user-friendly menu guidance
  • Measurement data can be stored in the differential pressure measuring instrument for analyses and documentation
  • Easy to manage the measurement data on the PC without any additional software, via the plug and play function

Applications

  • Large supply air diffusers
  • HEPA filters
  • Safety cabinets in cleanrooms
  • HVAC/R
  • Ventilation
  • Air conditioning

Testo 0699 7077/2 Specifications

Differential Pressure
Measuring Range -0.48 to 0.48 InH2O / -120 to 120 Pa
19.7 to 2756 fpm / 0.1 to 14 m/s
Accuracy ±2% of mv + 0.002 InH2O at 72°F, 405 InH2O / ±2% of mv + 0.5 Pa at 22°C, 1013 hPa
Resolution 0.001 InH₂O / 0.001 Pa
0.01 fpm / 0.01 m/s
Reaction Time 1 s (t90)
General Technical Data
Dimensions 5.91 x 3.35 x 1.37" (150 x 85 x 35 mm)
Operating Temperature 23 to 122°F (-5 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Battery Type AA Alkaline
Battery Life 40 hrs
Display Size 3.5" (8.89 cm)
Interface Micro-USB
Memory 2 GB (internal)
Click here for complete specifications on the Testo 0699 7077/2

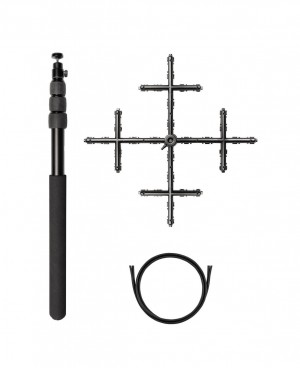

What's included with the Testo 0699 7077/2

  • Air Flow Velocity Matrix
  • Differential Pressure Measuring Instrument
  • 6' (1.83 m) Telescopic Extension Pole with Ball Swivel Head
  • 2 x 6' (1.83 m) Silicon-Free Connection Hoses
  • Attachment Straps

Click on a category to view a selection of compatible accessories with the Testo 0699 7077/2 Air Flow Velocity Matrix Kit with 420, 14" x 14".

Testo 0554 4203 Air Flow Capture Hood, 36 x 36" 0554 4203
Hood for mounting on the 420, for volume flow measurements at air inlets and outlets. Features integrated flow straightener for precise measurement results.




Testo 0554 4200 Flow Hood, 14" x 14" (360 x 360 mm) 0554 4200
For use with the Testo 420.




Testo 0554 4201 Flow Hood, 12" x 48" (305 x 1220 mm) 0554 4201
For use with the Testo 420.




Testo 0554 4202 Flow Hood, 24" x 48" (610 x 1220 mm) 0554 4202
For use with the Testo 420.




Testo 0635 2045 Stainless Steel Pitot Tube, 19.5" Long 0635 2045
500 mm long, for measuring flow velocity.




Testo 0635 2345 Pitot Tube, Stainless Steel, 1000mm 0635 2345
Used to measure flow velocity. Measuring range is 198 to 19680ft/min. Operating temperature is 32 - 1112°F (0 - 600°C).




Testo 0635 2145 Pitot Tube, Stainless Steel, 350mm 0635 2145
Used to measure flow velocity. Measuring range is 198 to 19680ft/min. Operating temperature is 32 - 1112°F (0 - 600°C).




Testo 0554 4209 Extendable Tripod with Wheels, Up to 4m 0554 4209
For use with the Testo 420. Ideally used to measure ceiling outlets.
