Testo 0635 8888 Air Flow Velocity Matrix Kit, 14" x 14"

Model: 0635 8888

Testo 0635 8888 Air Flow Velocity Matrix Kit, 14" x 14"-


Downloads: datasheet manual

Testo 0635 8888 Air Flow Velocity Matrix Kit, 14" x 14"

Model: 0635 8888

Ideal measurement solution for determining flow velocity, volume flow on laminar flow supply air diffusers, and large surface areas. To be used in conjunction with the 420, 480 or 435-4 Differential Measuring Instrument.

Ideal measurement solution for determining flow velocity, volume flow on laminar flow supply air diffusers, and large surface areas. To be used in conjunction with the 420, 480 or 435-4 Differential Measuring Instrument.

Sale Price $524.45 USD
Regular Price $617.00 USD
Availability 8 to 9 Weeks
Quantity

Testo 0635 8888 Offers

Features

  • Carry out accurate measurements on laminar flow supply air outlets
  • Ideal for large surface areas
  • The telescope makes it possible to carry out measurements on high ceiling diffusers
  • To be used in conjunction with the 420, 480 or 435-4 differential measuring instruments to calculate flow velocity and volume flow

Applications

  • Large supply air diffusers
  • HEPA filters
  • Safety cabinets in cleanrooms

Testo 0635 8888 Specifications

Differential Pressure
Measuring Range -0.48 to 0.48 InH2O / -120 to 120 Pa
19.7 to 2756 fpm / 0.1 to 14 m/s
Accuracy ±2% of mv + 0.002 InH2O at 72°F, 405 InH2O / ±2% of mv + 0.5 Pa at 22°C, 1013 hPa
Resolution 0.001 InH₂O / 0.001 Pa
0.01 fpm / 0.01 m/s
Reaction Time 1 s (t90)
General Technical Data
Dimensions 5.91 x 3.35 x 1.37" (150 x 85 x 35 mm)
Operating Temperature 23 to 122°F (-5 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Battery Type AA Alkaline
Battery Life 40 hrs
Display Size 3.5" (8.89 cm)
Interface Micro-USB
Memory 2 GB (internal)
Click here for complete specifications on the Testo 0635 8888

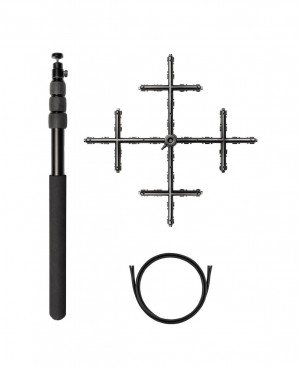

What's included with the Testo 0635 8888

  • Air Flow Velocity Matrix
  • 6' (1.83 m) Telescopic Extension Pole with Ball Swivel Head
  • 2 x 6' (1.83 m) Silicon-Free Connection Hoses
  • Attachment Straps
